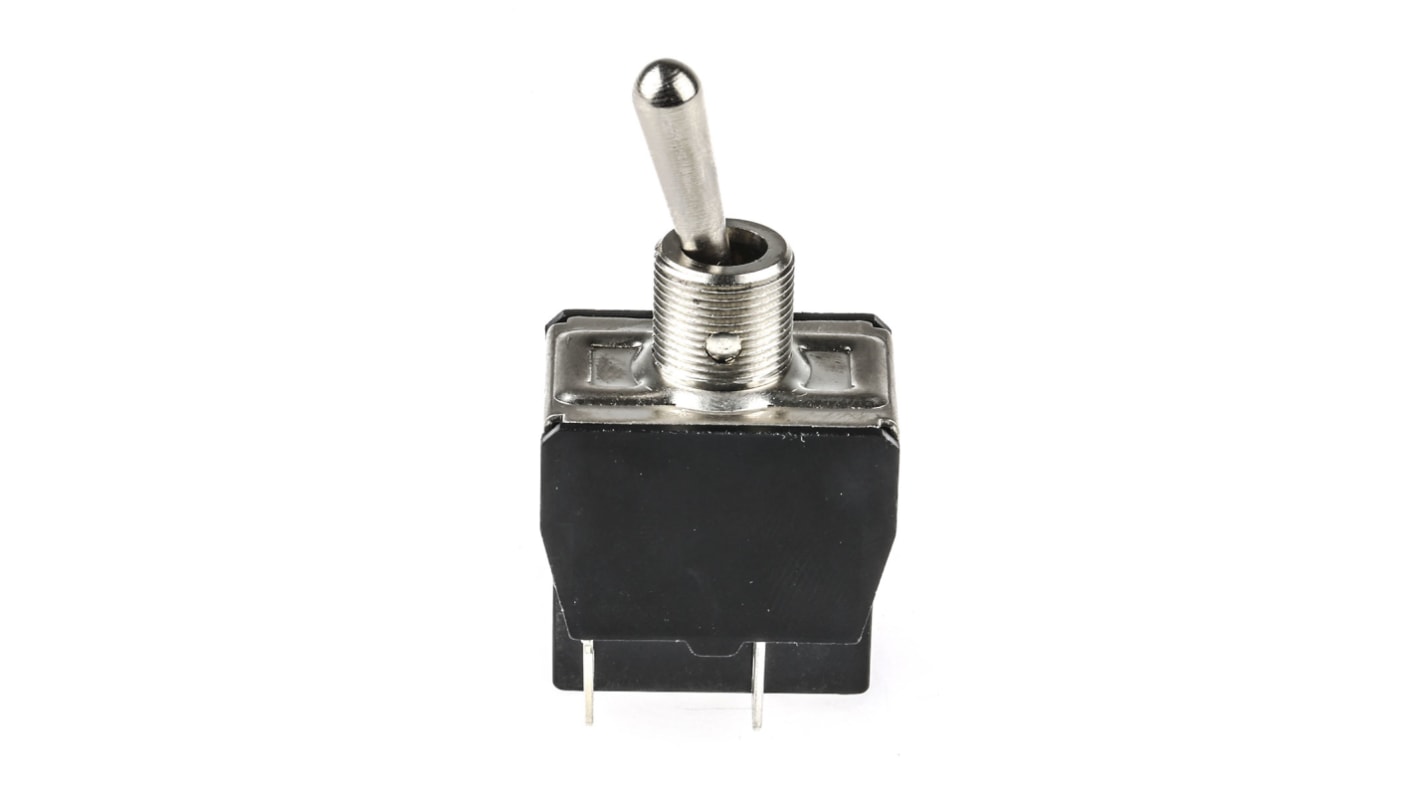

APEM Toggle Switch, Panel Mount, On-Off, DPST, Tab Terminal
- RS Stock No.:
- 518-5314
- Mfr. Part No.:
- Y12CP
- Manufacturer:
- APEM
View all Toggle Switches
3674 In stock for delivery within 6 working days
Price (VAT excluded) Each
TWD444.00
(exc. GST)
TWD466.20
(inc. GST)
| units | Per unit |
| 1 - 14 | TWD444.00 |
| 15 - 49 | TWD431.00 |
| 50 - 99 | TWD419.00 |
| 100 - 249 | TWD410.00 |
| 250 + | TWD401.00 |
- RS Stock No.:
- 518-5314
- Mfr. Part No.:
- Y12CP
- Manufacturer:
- APEM
Product overview and Technical data sheets
Legislation and Compliance
Product Details
Toggle Switches, Std, 15A
Moulded body with slow-break silver plated contacts and pear-shaped toggle
The blade terminals are suitable for 250 (1/4 in) receptacles or soldering
Mounting bush 0.468in dia., length 11mm, single locating slot
The blade terminals are suitable for 250 (1/4 in) receptacles or soldering
Mounting bush 0.468in dia., length 11mm, single locating slot
Approvals
7777
Specifications
| Attribute | Value |
| Contact Configuration | Double Pole Single Throw (DPST) |
| Switch Operation | On-Off |
| Contact Current Rating | 15 A @ 250 V ac |
| Mounting Type | Panel Mount |
| Terminal Type | Tab |
| Actuator Length | 17.5mm |
| Contact Material | Silver |
| Contact Resistance | 0.01Ω |
| Maximum Operating Temperature | +55°C |
| Operating Temperature Range | -20 → +55°C |
| Minimum Operating Temperature | -20°C |
