RS PRO Type K Thermocouple 2m Length, 1/0.3mm Diameter, -50°C → +400°C

  • RS Stock No. 151-192
  • Manufacturer RS PRO
Product overview and Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

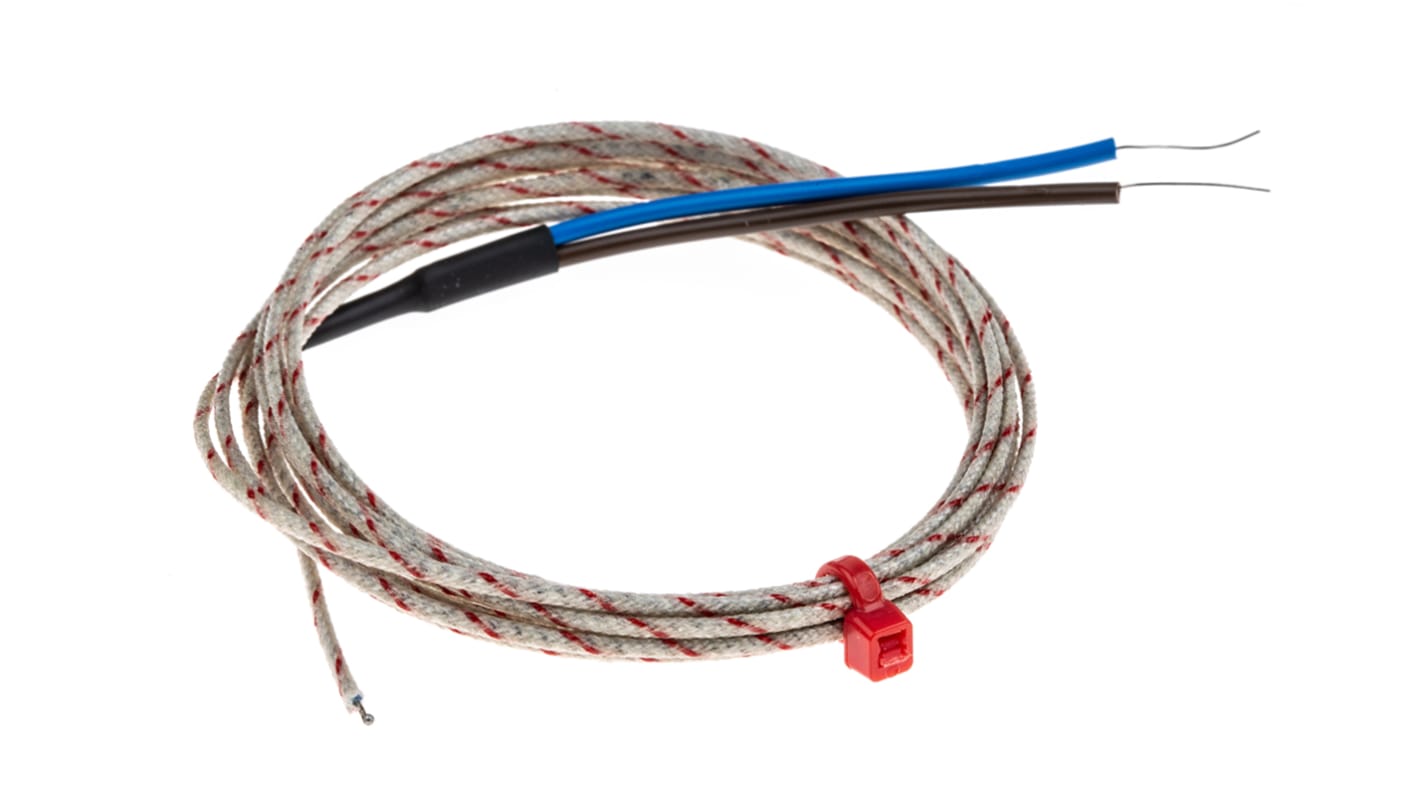

Type K Thermocouple, Welded Tip

Non-oxidising hot junction tip. 2m, Glass Fibre Insulated Temp. range -50 to +400°C.

Old Colour Code, BS1843

Thermocouples, bayonet adaptors, compensating and extension cables and connectors.,These BS1843 products are being phased out, having been replaced with a new colour code standard BS4937 Part 30 1993 (IEC 584-3 1989 modified for international use). System Calibration is available on selected probes and includes the full charge of the instrument and probe.

Specifications
Attribute Value
Thermocouple Type K
Probe Diameter 1/0.3mm
Probe Length 2m
Maximum Temperature Sensed +400°C
Termination Type Cable
Cable Length 2m
Standards Met BS
