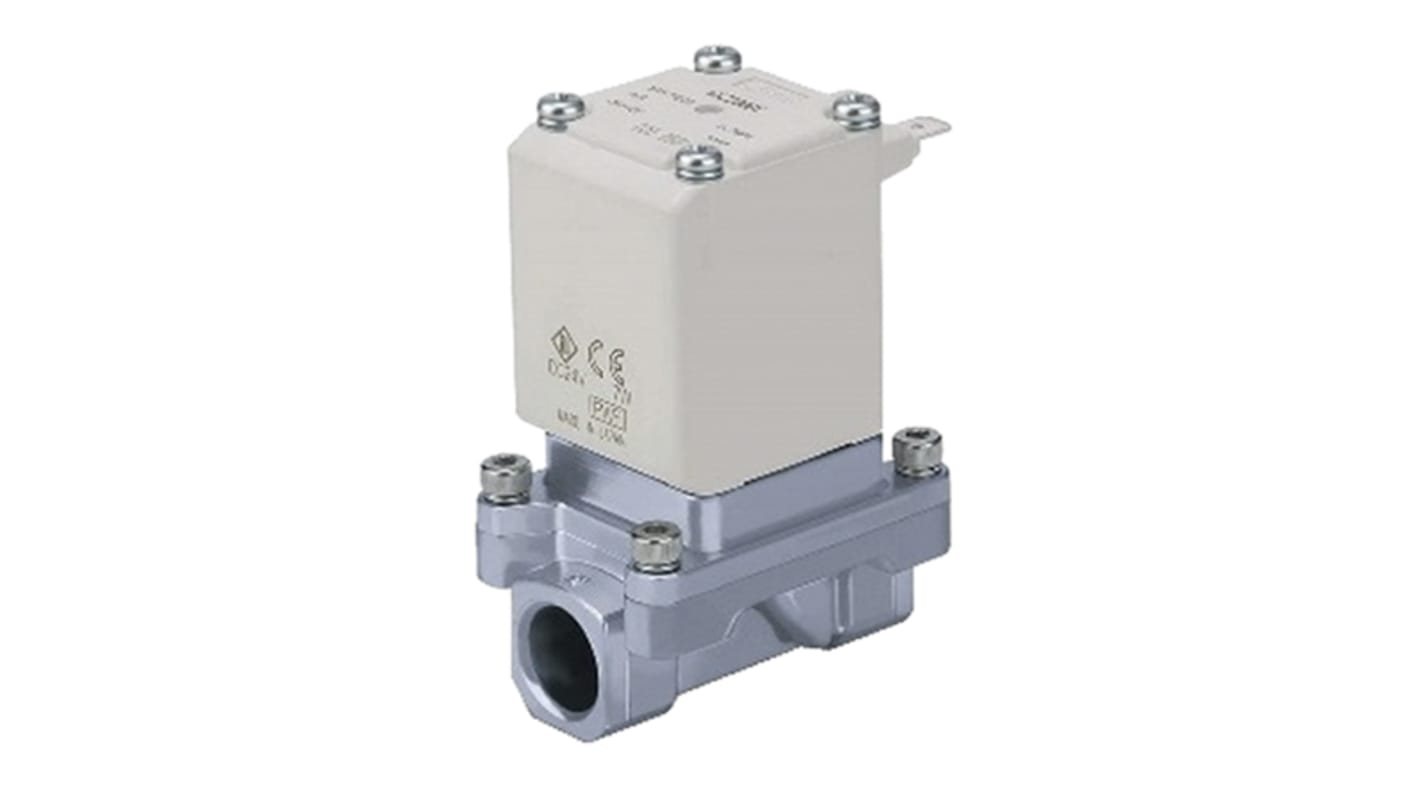

VXS2 Two Port Pilot Operated Solenoid Valve

Zero pressure differential pilot solenoid valves from SMC requiring no fluid pressure for operation suitable for use with steam and heated water. Service life has been increased to 3 million cycles by using an improved scraper design that is contaminant resilient. Air leakage has also been reduced. This new series of solenoid valves are also greener consuming less energy and quieter in operation due to a rubber buffer design.

Reduced power consumption
Standardised 24 V dc DIN terminal
Minimal internal air leakage
Stainless Steel or Brass body
Low noise operation
Improved armature durability
Double guide rings for improved foreign object resistance

Select all	Attribute	Value
	Brand	SMC
	Supply Voltage	24 V dc
	Number of Ports	2
	Connection Size	1/4in
	Connection	1/4 in G
	Operation	Pilot
	Default Valve Position	NC
	Suitable Applications	Steam
	Type	2/2
	Orifice Diameter	10mm
	Body Material	Stainless Steel
	Series	VXS
	Maximum Working Pressure	10 bar
	Operating Temperature Range	-20 → +60 °C
	Maximum Operating Temperature	+60°C
	Connection Gender	Female
	Minimum Operating Temperature	-20°C
	Thread Standard or Connection Type	G

	Select all
	Brand SMC
	Supply Voltage 24 V dc
	Number of Ports 2
	Connection Size 1/4in
	Connection 1/4 in G
	Operation Pilot
	Default Valve Position NC
	Suitable Applications Steam
	Type 2/2
	Orifice Diameter 10mm
	Body Material Stainless Steel
	Series VXS
	Maximum Working Pressure 10 bar
	Operating Temperature Range -20 → +60 °C
	Maximum Operating Temperature +60°C
	Connection Gender Female
	Minimum Operating Temperature -20°C
	Thread Standard or Connection Type G

SMC Solenoid Valve VXS235CGA, 2 port(s) , NC, 24 V dc, 1/4in
