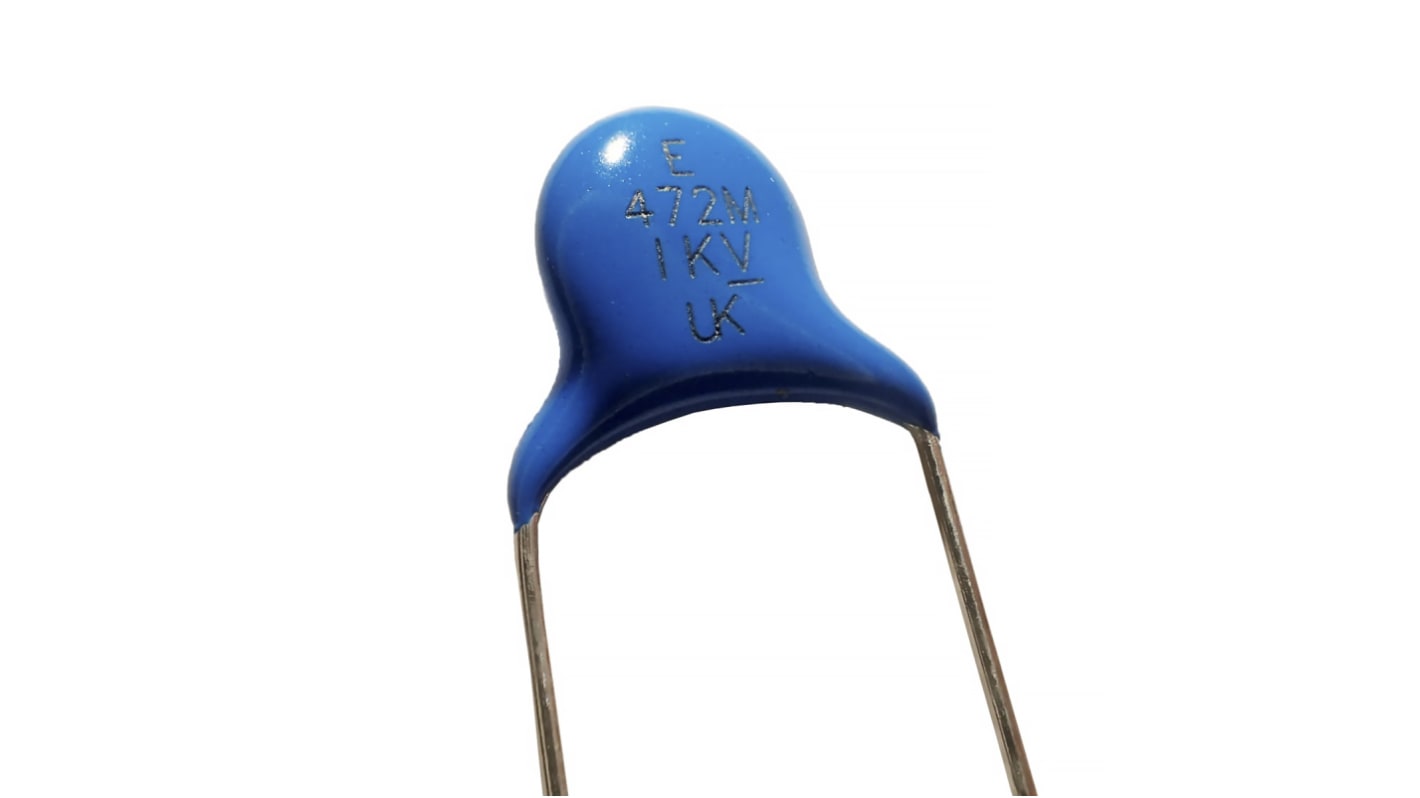

RS PRO Single Layer Ceramic Capacitor (SLCC) 4.7nF 2kV dc ±20% Y5U Dielectric, Through Hole +85°C Max Op. Temp.
- RS Stock No.:
- 180-5119
- Manufacturer:
- RS PRO
The image is for reference only, please refer to product details and specifications
Bulk discount available
Subtotal (1 pack of 100 units)**
TWD540.00
(exc. GST)
TWD567.00
(inc. GST)
1300 In stock for delivery within 6 working days*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over TWD1,300.00 (ex VAT)
Real time qty checker
Units | Per unit | Per Pack** |
|---|---|---|
| 100 - 200 | TWD5.40 | TWD540.00 |
| 300 + | TWD5.30 | TWD530.00 |
**price indicative
- RS Stock No.:
- 180-5119
- Manufacturer:
- RS PRO
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Capacitance | 4.7nF | |
| Voltage | 2kV dc | |
| Mounting Type | Through Hole | |
| Tolerance | ±20% | |
| Dielectric | Y5U | |
| Diameter | 11mm | |
| Suppression Class | Class II | |
| Tolerance Minus | -20% | |
| Capacitor Family | Single Layer | |
| Dielectric Material Family | Ceramic | |
| Minimum Operating Temperature | -25°C | |
| Terminal Type | Solder | |
| Tolerance Plus | +20% | |
| Maximum Operating Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Capacitance 4.7nF | ||
Voltage 2kV dc | ||
Mounting Type Through Hole | ||
Tolerance ±20% | ||
Dielectric Y5U | ||
Diameter 11mm | ||
Suppression Class Class II | ||
Tolerance Minus -20% | ||
Capacitor Family Single Layer | ||
Dielectric Material Family Ceramic | ||
Minimum Operating Temperature -25°C | ||
Terminal Type Solder | ||
Tolerance Plus +20% | ||
Maximum Operating Temperature +85°C | ||
