Schneider Electric Dual-Channel Emergency Stop, Light Beam/Curtain, Safety Mat/Edge, Safety Switch/Interlock Safety
- RS Stock No.:
- 814-6930
- Mfr. Part No.:
- XPSAK311144P
- Manufacturer:
- Schneider Electric
View all Safety Relays
Discontinued product
Alternatives
This product is not currently available. Here are our alternative recommendations.
- RS Stock No.:
- 814-6930
- Mfr. Part No.:
- XPSAK311144P
- Manufacturer:
- Schneider Electric
Legislation and Compliance
- COO (Country of Origin):
- MA
Product Details
Schneider Electric | Preventa XPSAK Series | Safety Relays
Simple and effective safety monitoring has never been more crucial in today's highly automated world. Prevention is key to site safety, that's why Schneider Electric offers a Safety Relay in the form of the 'Preventa XPSAK' module that is second to none. Being able to monitor faults with devices along a circuit has the power to stop emergency situations from even occurring.
Features and benefits:
• Provides 3 N/O safety relay outputs plus 1 N/C volt free signalling output
• Monitoring of the start button or automatic starting can be chosen.
• 24 V DC option incorporated for each supply voltage version
• Monitoring of single safety functions, providing an automated solution for use with applications such as emergency push stop buttons or switches.
• Slin in design, with just 45mm of width meaning it can fit nicely even in space constraint spaces.
• 35 mm symmetrical DIN rail support, offering flexible and versatile safety system installation.
• Local signalling in the form of LEDs.
Protection ratings & Safety features (see datasheet for specifics) -
• Impressive line resistance is available, varying between 90 to 100 Ohm (Ω).
• Input protection type is internal, electronic.
• EN1088/ISO 14119, EN 60204-1, EN/IEC 60947-5-1, EN/ISO 13850
• CSA, TUV & UL listed
• IP 40 (enclosure) for protection against small objects up to 1mm such as tools, wires and small wires.
• IP 20 (terminals) for protection against solid objects such as fingers, smaller tools up to 12mm.
• Monitoring of the start button or automatic starting can be chosen.
• 24 V DC option incorporated for each supply voltage version
• Monitoring of single safety functions, providing an automated solution for use with applications such as emergency push stop buttons or switches.
• Slin in design, with just 45mm of width meaning it can fit nicely even in space constraint spaces.
• 35 mm symmetrical DIN rail support, offering flexible and versatile safety system installation.
• Local signalling in the form of LEDs.
Protection ratings & Safety features (see datasheet for specifics) -
• Impressive line resistance is available, varying between 90 to 100 Ohm (Ω).
• Input protection type is internal, electronic.
• EN1088/ISO 14119, EN 60204-1, EN/IEC 60947-5-1, EN/ISO 13850
• CSA, TUV & UL listed
• IP 40 (enclosure) for protection against small objects up to 1mm such as tools, wires and small wires.
• IP 20 (terminals) for protection against solid objects such as fingers, smaller tools up to 12mm.
Applications -
All dangerous machinery requires an automated solution to prevent harm to immediate users and also prevent damage to the machinery. Below are some of the safety applications
• Monitoring type 4 Safety light curtains with semi-conductor outputs according to EN61496-1.
• Time delay input if needed allowing you to set up your own time function.
• Two-hand control safety circuits
• Sensing mats and edges
• Monitoring type 4 Safety light curtains with semi-conductor outputs according to EN61496-1.
• Time delay input if needed allowing you to set up your own time function.
• Two-hand control safety circuits
• Sensing mats and edges
Standards
IEC 204-1; EN 292; EN 418; EN 60204-1; EN 1088
Approvals
BG, UL, CSA

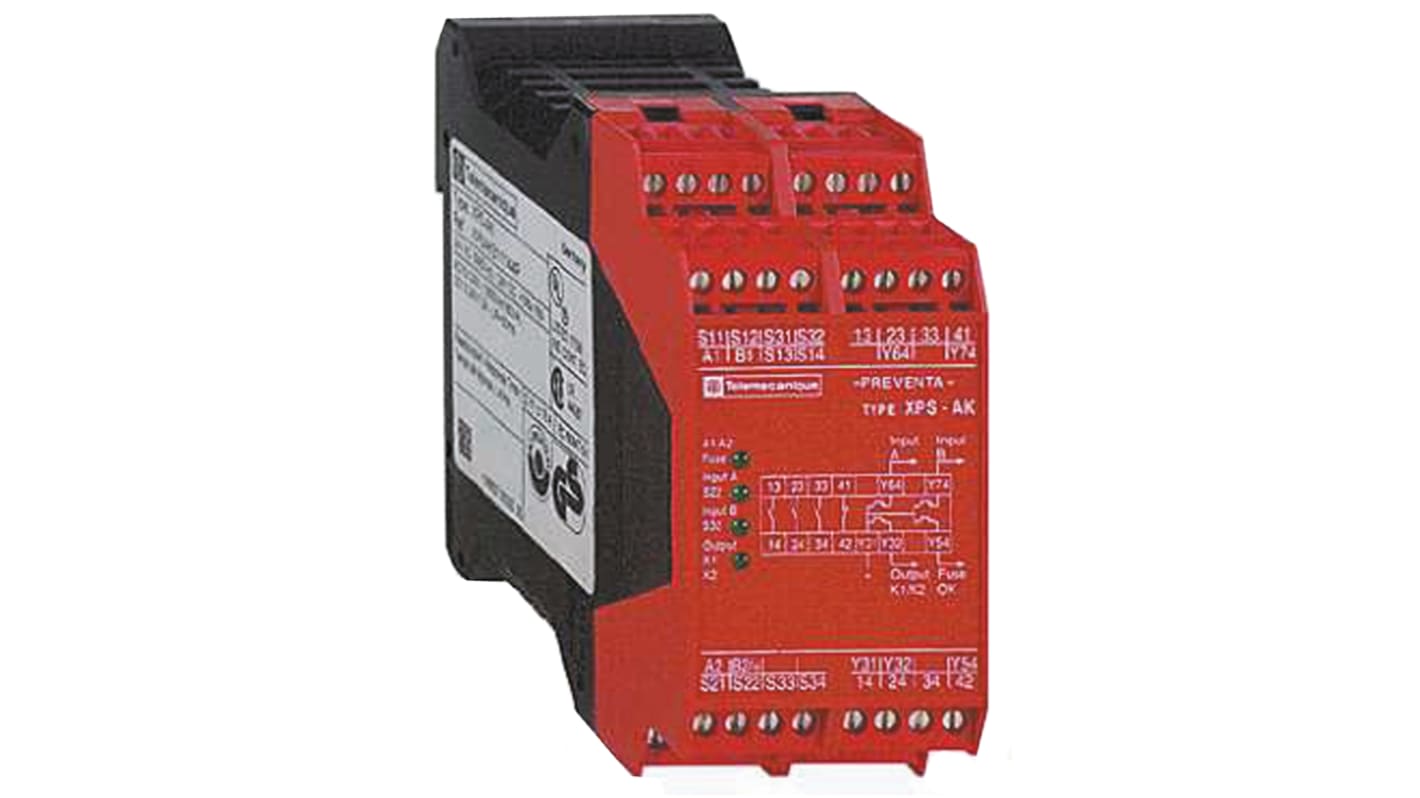

XPSAK311144P Schneider Electric Preventa Safety Relay Module.
- Preventa safety module XPSAK.
- For emergency stop, switch, sensing mat/edges, safety light curtain monitoring.
- Configurable start.
- Captive screw clamp terminals.
- 3 NO (volt free) instant opening.
- 1 NC plus 4 solid state additional circuit outputs.
- (Us) Supply voltage 24 V ac / dc.
- Unlimited (manual start) time between outputs, 2 or 4 s automatic start (dependant of wiring).
- 50/60 Hz frequency.
- Maximum power consumption (VA) 5 VA/AC.
- Minimum output current 10 MA (relay output).
- Minimum output voltage 17 V (relay output).
- Maximum response time 40 Ms (input open).
- 4 LEDs.
- Mounting 35 mm DIN rail.
- Net weight 0.3 Kg.
Relay / Module Functions.
Monitoring of a movable guard associated with 2 switches and automatic start, Monitoring of electro-sensitive protection equipment (ESPE), Sensing mat and edges monitoring, Emergency stop monitoring 1-channel wiring, Emergency stop with 2 NC contacts monitoring 2-channel wiring, Multiple emergency stop monitoring 2-channel wiring, Proximity sensor monitoring, Monitoring of a movable guard.
Specifications
| Attribute | Value |
| Supply Voltage | 24V ac/dc |
| Number of Channels | 2 |
| Safety Contacts | 3 |
| Function | Emergency Stop, Light Beam/Curtain, Safety Mat/Edge, Safety Switch/Interlock |
| Auxiliary Contacts | 1 |
| Reset Method | Monitored |
| Range | Preventa |
| Safety Category ISO 13849-1 | 4 |
| PL ISO 13849-1 | e |
| SIL IEC 61508 | 3 |
| Terminal Type | Screw |
| Configurable | Yes |
| Depth | 114mm |
| Width | 45mm |
| Series | XPS AK |
| Length | 99mm |
| Performance Level | e |
