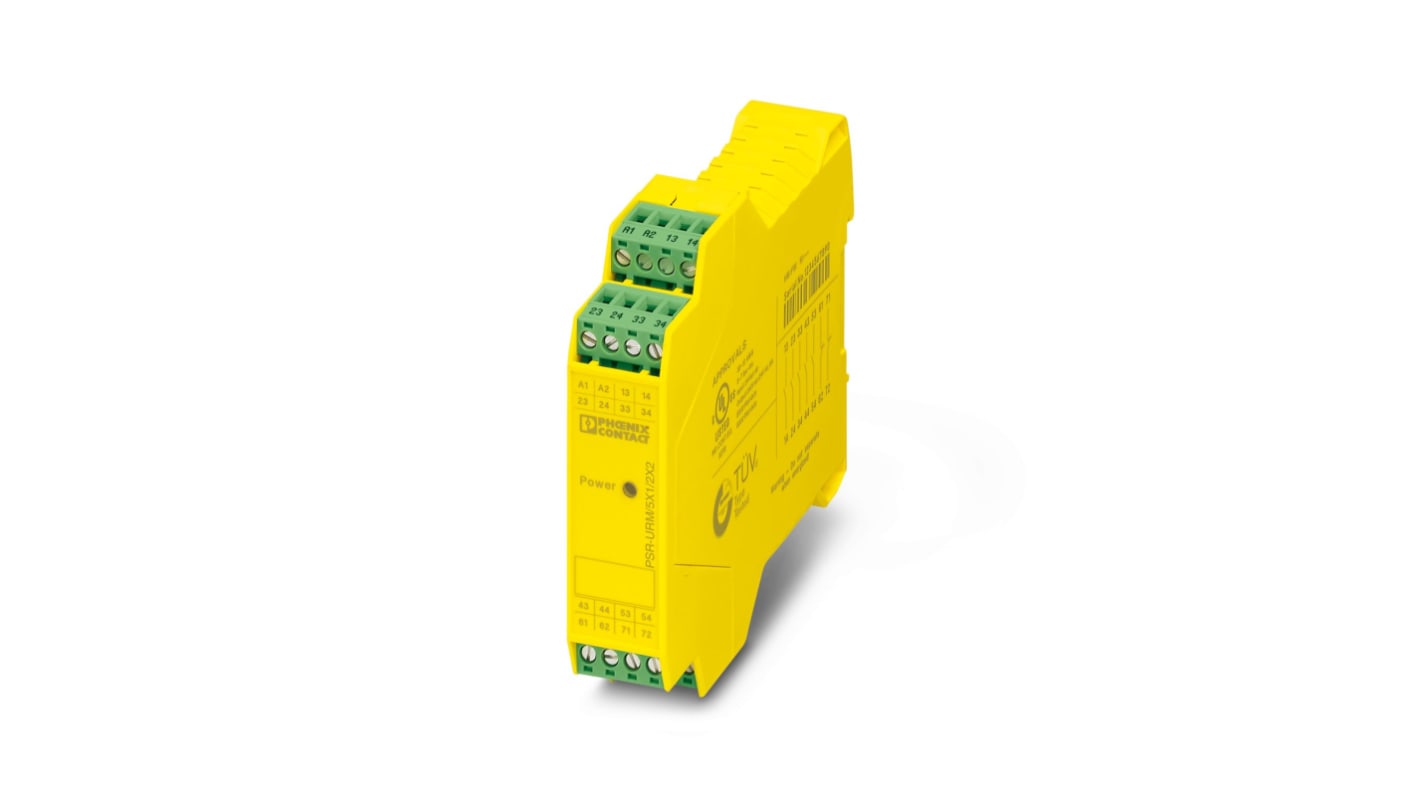

Phoenix Contact PSR-SPP, 24 V ac/dc Coupling Relay, 5 Safety Contacts

RS Stock No.:: 241-6129
Mfr. Part No.:: 2963970
Manufacturer:: Phoenix Contact

Phoenix Contact PSR-SPP, 24 V ac/dc Coupling Relay, 5 Safety Contacts

Subtotal (1 unit)*

TWD3,844.00

(exc. GST)

TWD4,036.20

(inc. GST)

FREE delivery for orders over NT$1,300.00

In Stock

8 unit(s) ready to ship from another location
Plus 13 unit(s) shipping from March 13, 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	TWD3,844.00

*price indicative

RS Stock No.:: 241-6129
Mfr. Part No.:: 2963970
Manufacturer:: Phoenix Contact

Specifications

Product overview and Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Phoenix Contact
	Product Type	Coupling Relay
	Safety Contacts	5
	Contact Configuration	2 NO/1 NC
	Mount Type	DIN Rail
	Reset Method	Manual
	Series	PSR-SPP
	Power Consumption	1.2W
	Terminal Type	Push-in
	Time Delay	500 ms
	IP Rating	IP20
	Standards/Approvals	DIN EN 50178
	Switching AC Voltage	230 V ac
	Minimum Operating Temperature	-20°C
	Contact Current	6A
	Switching DC Voltage	230 V dc
	Maximum Operating Temperature	55°C
	Width	22.5 mm
	Length	112mm
	Height	112mm
	Hazardous Area Certification	No
	Safety Category	1
	Coil Voltage	24 V ac/dc

	Select all
	Brand Phoenix Contact
	Product Type Coupling Relay
	Safety Contacts 5
	Contact Configuration 2 NO/1 NC
	Mount Type DIN Rail
	Reset Method Manual
	Series PSR-SPP
	Power Consumption 1.2W
	Terminal Type Push-in
	Time Delay 500 ms
	IP Rating IP20
	Standards/Approvals DIN EN 50178
	Switching AC Voltage 230 V ac
	Minimum Operating Temperature -20°C
	Contact Current 6A
	Switching DC Voltage 230 V dc
	Maximum Operating Temperature 55°C
	Width 22.5 mm
	Length 112mm
	Height 112mm
	Hazardous Area Certification No
	Safety Category 1
	Coil Voltage 24 V ac/dc

COO (Country of Origin):: DE

Phoenix Contact Safety Relay, 5 Safety Contacts, 24V Supply Voltage - 2963970

This safety relay from Phoenix Contact with a supply voltage of 24V is a reliable solution for industrial applications. With force-guided contacts and multiple enabling and confirmation current paths, this safety relay ensures safe and efficient operation. The compact design and easy proof testing make it an ideal choice for automation and electrical systems.

Features & Benefits

• Safe and reliable signal exchange with force-guided signal contacts

• Easy proof testing according to IEC 61508 with integrated signal contact

• 5 enabling current paths and 2 confirmation current paths for enhanced safety

• Compact design with pluggable push-in terminal block for easy installation

Applications

• Interlocking and control systems in industrial automation

• Safety circuits in machinery and equipment

• Automatic lighting control in building automation

• Emergency stop systems in manufacturing processes

Can it support multiple enabling current paths?

Yes, this safety relay comes with 5 enabling current paths and 2 confirmation current paths for added safety.

Will it work in harsh environmental conditions?

The safety relay is designed to operate in a wide temperature range (-20°C to 55°C) and is suitable for industrial applications.

Is it compatible with other Phoenix Contact devices?

Yes, it can be integrated with other Phoenix Contact products for seamless automation solutions.
