Dold Dual-Channel Emergency Stop Safety Relay, 24V dc, 3 Safety Contacts
- RS Stock No.:
- 240-8670
- Mfr. Part No.:
- BN5983.53 DC24V
- Manufacturer:
- Dold
6 In stock for delivery within 6 working days
Added
Price (VAT excluded) Each
TWD16,429.00
(exc. GST)
TWD17,250.45
(inc. GST)
| Units | Per unit |
| 1 + | TWD16,429.00 |
- RS Stock No.:
- 240-8670
- Mfr. Part No.:
- BN5983.53 DC24V
- Manufacturer:
- Dold
Product overview and Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

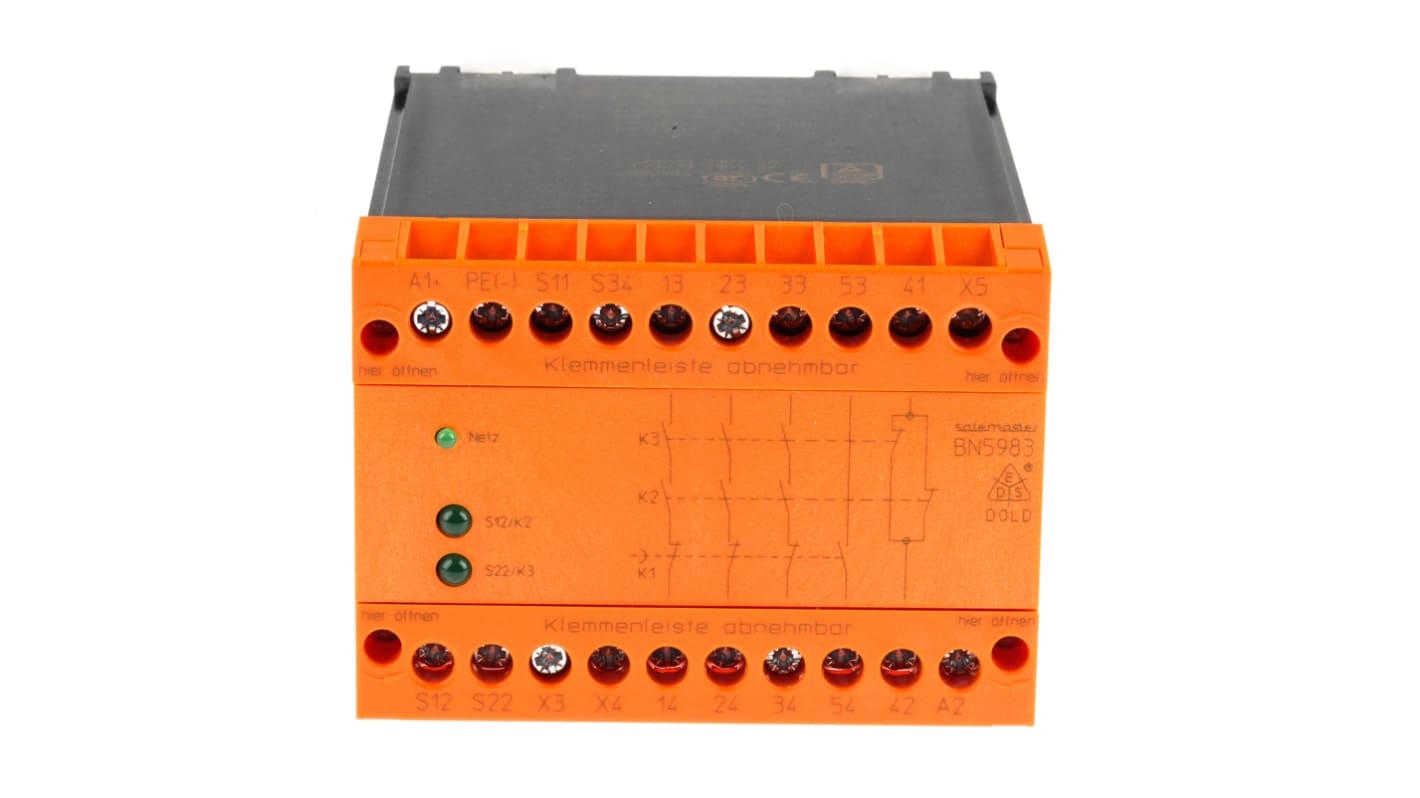

Emergency Stop Module, BN5983.53
Machine emergency stop switches
Monitors safety doors
SK 3 (with equivalent switching)
Output: 3 N/Os, 1 N/C for AC 380 V
1 or 2-channel configuration
LED indicators for channels 1 and 2
Control loop X3-X4 for monitoring external protection
Removable terminals
Monitors safety doors
SK 3 (with equivalent switching)
Output: 3 N/Os, 1 N/C for AC 380 V
1 or 2-channel configuration
LED indicators for channels 1 and 2
Control loop X3-X4 for monitoring external protection
Removable terminals
Protection of humans and machines in accordance with: EC Directive on Machines 89/392/EEC, IEC 204, EN 60204, DIN VDE 0113
Standards
EN 60204-1 (stop functions), EN 418, prEN574, prEN 954-1
Approvals
BG, TÜV-Rheinland, UL, CSA, SUVA, SA Sweden,
Arbejdstilsynet Denmark
Arbejdstilsynet Denmark
Specifications
Attribute | Value |
|---|---|
| Supply Voltage | 24V dc |
| Number of Channels | 2 |
| Safety Contacts | 3 |
| Function | Emergency Stop |
| Auxiliary Contacts | 1 |
| Reset Method | Monitored |
| Range | Safemaster |
| Safety Category ISO 13849-1 | 4 |
| PL ISO 13849-1 | e |
| SIL IEC 61508 | 3 |
| Width | 100mm |
| Series | BN 5983 |
| Depth | 121mm |
| Performance Level | e |
| Length | 74mm |
