Case hardened articulations
Shot peened plates
BS chains: Preformed bi-conic bushes
ASA chains : Solid bushes
Solid rollers
Chains pre-tensioned at 30-45% of the breaking load
New generation pre-lubrication with technical wax from 12.7mm
to 25.4mm pitch (08B to 16B)
Other chains are pre-lubricated with initial plant lubrication

These chains are designed for use in high power transmission systems.

These chains correspond to the following national standards, British Standard BS 228 (short pitch chains), German Standard DIN8187 (short pitch chains) and DIN8181 (long pitch chains)
In these conditions, our chains are interchangeable with all other chains produced to the quoted standards.

Units	Per unit
1 - 4	TWD4,527.00
5 +	TWD4,346.00

Select all	Attribute	Value
	Brand	Sedis
	Chain Type	10B-1
	Pitch	15.88mm
	Number of Strands	Simplex
	Material	Carbon Steel
	Chain Series	ALPHA
	Length	5m
	Plate Height	13.7mm
	Roller Diameter	10.16mm
	Chain Width	9.65mm
	Overall Width	19mm
	Weight	0.9kg/m

	Select all
	Brand Sedis
	Chain Type 10B-1
	Pitch 15.88mm
	Number of Strands Simplex
	Material Carbon Steel
	Chain Series ALPHA
	Length 5m
	Plate Height 13.7mm
	Roller Diameter 10.16mm
	Chain Width 9.65mm
	Overall Width 19mm
	Weight 0.9kg/m

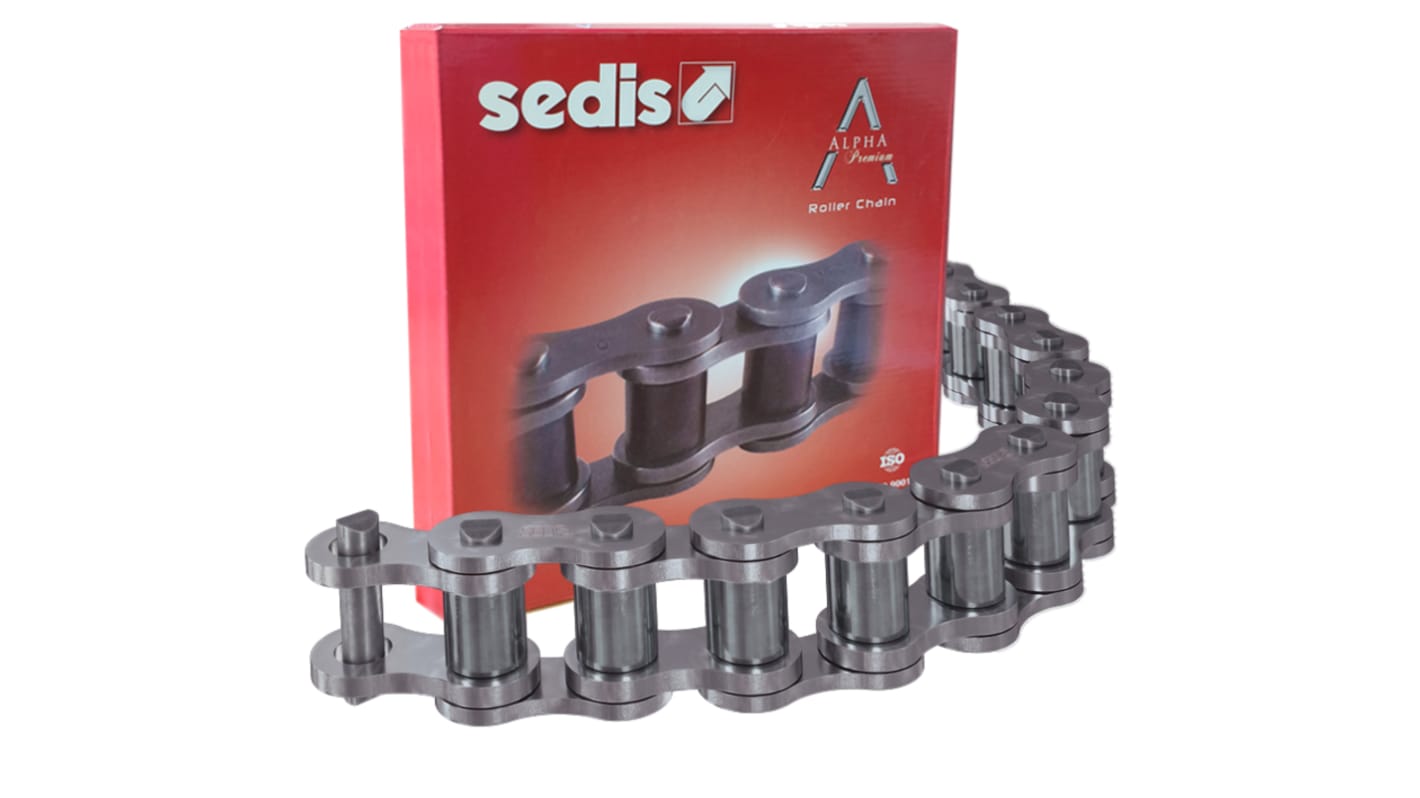

Sedis 10B-1 Simplex Roller Chain, 5m, ALPHA

FREE delivery for orders over TWD1,300.00 (ex VAT)
