RS PRO Insulated Ring Terminal, 8.4mm Stud Size, 4mm² to 6mm² Wire Size, Yellow

View all Ring Terminals
Bulk discount available

Subtotal (1 bag of 100 units)*

TWD680.00

(exc. GST)

TWD714.00

(inc. GST)

Add to Basket
Select or type quantity
In Stock
  • 2,500 unit(s) ready to ship from another location
  • Plus 6,000 unit(s) shipping from January 20, 2026
  • Plus 6,000 unit(s) shipping from February 17, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Bag*
100 - 900TWD6.80TWD680.00
1000 - 1900TWD6.60TWD660.00
2000 - 4900TWD6.40TWD640.00
5000 - 24900TWD6.30TWD630.00
25000 +TWD5.20TWD520.00

*price indicative

RS Stock No.:
178-8670
Distrelec Article No.:
304-18-213
Manufacturer:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Series

E245391

Insulation

Insulated

Insulation Material

Vinyl

Outer Ring Diameter

15mm

Inner Ring Diameter

8.4mm

Maximum Wire Size mm²

6mm²

Minimum Wire Size mm²

4mm²

Minimum Wire Size AWG

12AWG

Maximum Wire Size AWG

10AWG

Stud Size

8.4mm

Colour

Yellow

Contact Material

Copper

Contact Plating

Tin

Thickness

1mm

Overall Length

34mm

Maximum Operating Temperature

+105°C

Minimum Operating Temperature

-40°C

COO (Country of Origin):
TW

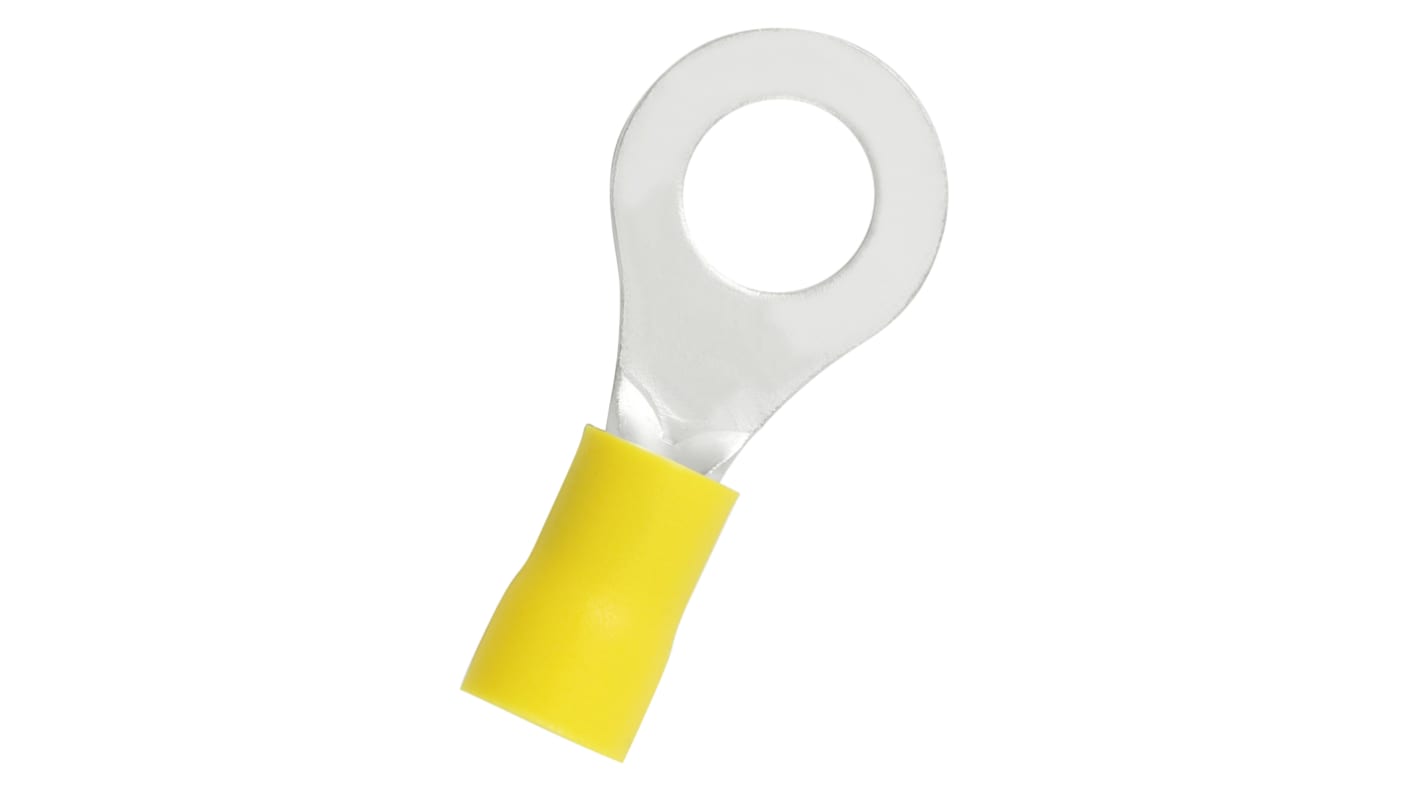

The RS PRO Insulted ring has a outer ring diameter of 15mm and inner ring diameter of 8.4mm which comes with maximum 6mm² wire size connection. It is made up of high quality copper for contact material and Vinyl is used for insulation which comes with yellow in colour.

Stud Size 8.4mm
Colour Yellow
Contact Material Copper
Thickness 1mm
Overall Length 34mm
