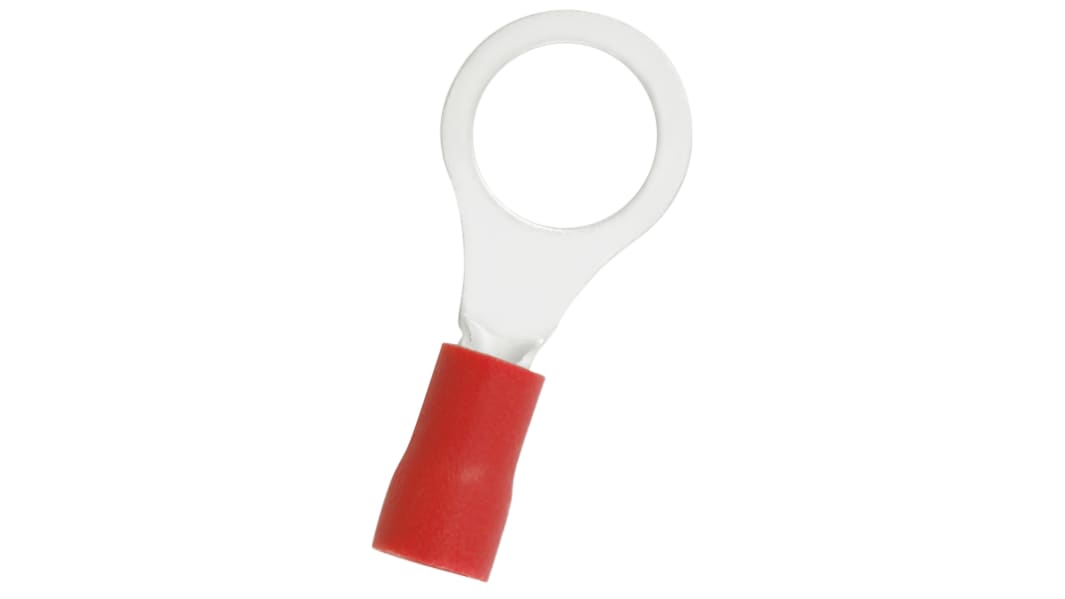

RS PRO Insulated Ring Terminal, 8.4mm Stud Size, 0.5mm² to 1.5mm² Wire Size, Red
- RS Stock No.:
- 178-8656
- Manufacturer:
- RS PRO
Subtotal (1 bag of 100 units)**
TWD230.00
(exc. GST)
TWD242.00
(inc. GST)
100 In stock for delivery within 6 working days*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over TWD1,300.00 (ex VAT)
Real time qty checker
Units | Per unit | Per Bag** |
|---|---|---|
| 100 + | TWD2.30 | TWD230.00 |
**price indicative
- RS Stock No.:
- 178-8656
- Manufacturer:
- RS PRO
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Series | E245391 | |
| Insulation | Insulated | |
| Insulation Material | Vinyl | |
| Outer Ring Diameter | 11.6mm | |
| Inner Ring Diameter | 8.4mm | |
| Maximum Wire Size mm² | 1.5mm² | |
| Minimum Wire Size mm² | 0.5mm² | |
| Minimum Wire Size AWG | 22AWG | |
| Maximum Wire Size AWG | 16AWG | |
| Stud Size | 8.4mm | |
| Colour | Red | |
| Contact Plating | Tin | |
| Contact Material | Copper | |
| Thickness | 0.75mm | |
| Overall Length | 26.8mm | |
| Maximum Operating Temperature | +105°C | |
| Minimum Operating Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Series E245391 | ||
Insulation Insulated | ||
Insulation Material Vinyl | ||
Outer Ring Diameter 11.6mm | ||
Inner Ring Diameter 8.4mm | ||
Maximum Wire Size mm² 1.5mm² | ||
Minimum Wire Size mm² 0.5mm² | ||
Minimum Wire Size AWG 22AWG | ||
Maximum Wire Size AWG 16AWG | ||
Stud Size 8.4mm | ||
Colour Red | ||
Contact Plating Tin | ||
Contact Material Copper | ||
Thickness 0.75mm | ||
Overall Length 26.8mm | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature -40°C | ||
