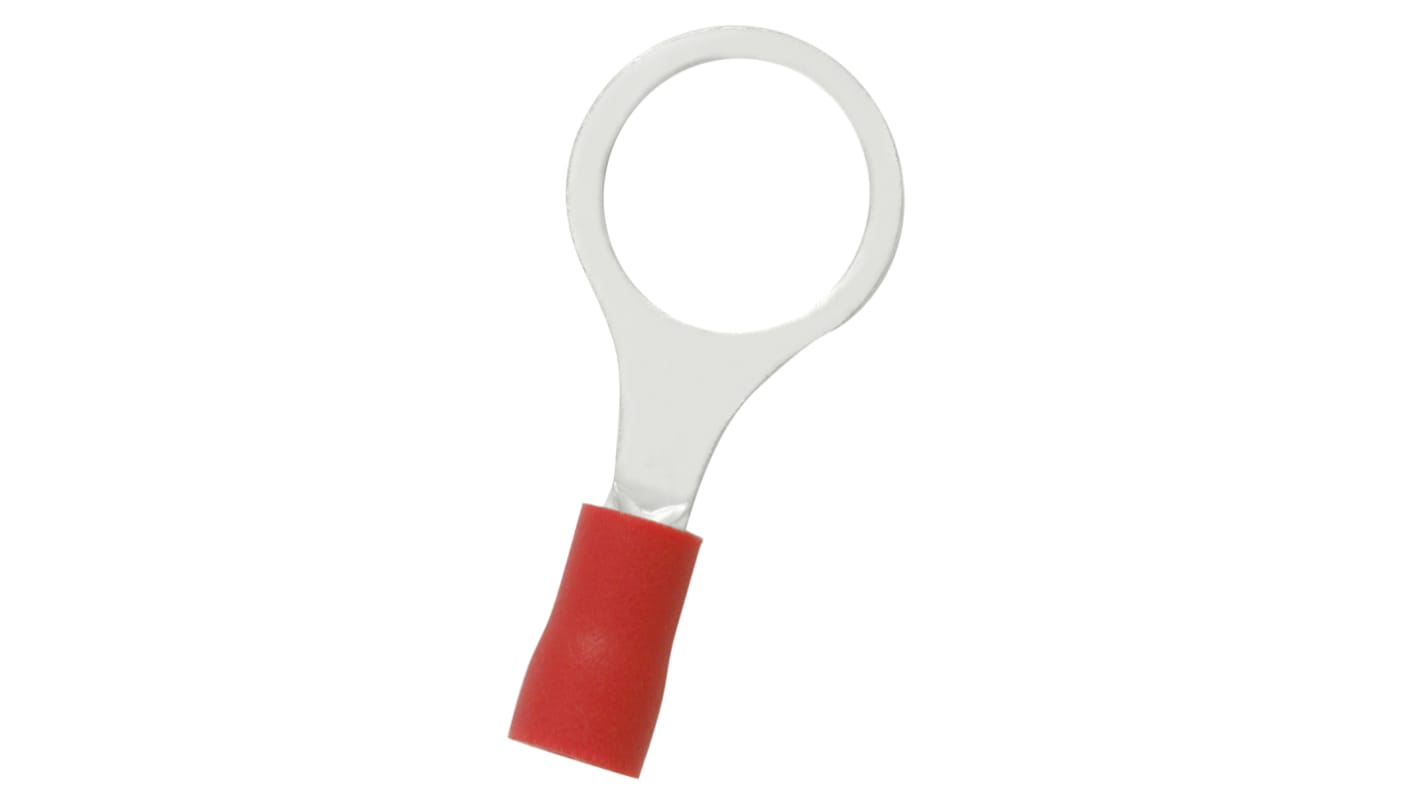

RS PRO Insulated Ring Terminal, 10.5 mm Stud Size 22 AWG 16 AWG Wire Size, Red
- RS Stock No.:
- 178-8657
- Manufacturer:
- RS PRO
Bulk discount available
View bulk pricing optionsSubtotal (100 units, in bags of 100)*
TWD930.00
(exc. GST)
TWD976.00
(inc. GST)
FREE delivery for orders over NT$1,300.00
In Stock
- 6,800 unit(s) ready to ship from another location
- Plus 8,000 unit(s) shipping from December 08, 2026
- Plus 8,000 unit(s) shipping from January 19, 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 100 - 900 | TWD9.30 | TWD930.00 |
| 1000 - 1900 | TWD9.10 | TWD910.00 |
| 2000 - 4900 | TWD8.80 | TWD880.00 |
| 5000 - 24900 | TWD8.60 | TWD860.00 |
| 25000 + | TWD7.10 | TWD710.00 |
*price indicative
Sponsored
- RS Stock No.:
- 178-8657
- Manufacturer:
- RS PRO
Specifications
Product overview and Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Ring Terminal | |
| Series | RS PRO | |
| Insulation | Insulated | |
| Insulation Material | Vinyl | |
| Inner Ring Diameter | 10.5mm | |
| Outer Ring Diameter | 13.6mm | |
| Maximum Wire Size AWG | 16AWG | |
| Minimum Wire Size AWG | 22AWG | |
| Overall Length | 30.5mm | |
| Stud Size | 10.5 mm | |
| Colour | Red | |
| Contact Plating | Tin | |
| Contact Material | Copper | |
| Thickness | 0.75mm | |
| Standards/Approvals | No | |
| Maximum Wire Size mm² | 1.5mm² | |
| Maximum Operating Temperature | 105°C | |
| Minimum Wire Size mm² | 0.5mm² | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Ring Terminal | ||
Series RS PRO | ||
Insulation Insulated | ||
Insulation Material Vinyl | ||
Inner Ring Diameter 10.5mm | ||
Outer Ring Diameter 13.6mm | ||
Maximum Wire Size AWG 16AWG | ||
Minimum Wire Size AWG 22AWG | ||
Overall Length 30.5mm | ||
Stud Size 10.5 mm | ||
Colour Red | ||
Contact Plating Tin | ||
Contact Material Copper | ||
Thickness 0.75mm | ||
Standards/Approvals No | ||
Maximum Wire Size mm² 1.5mm² | ||
Maximum Operating Temperature 105°C | ||
Minimum Wire Size mm² 0.5mm² | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- TW
The RS PRO Insulted ring has a outer ring diameter of 13.6mm and inner ring diameter of 10.5mm which comes with maximum 1.5mm² wire size connection. It is made up of high quality copper for contact material and Vinyl is used for insulation which comes with red in colour.
Stud Size 10.5mm
Colour Red
Contact Material Copper
Thickness 0.75mm
Overall Length 30.5mm
