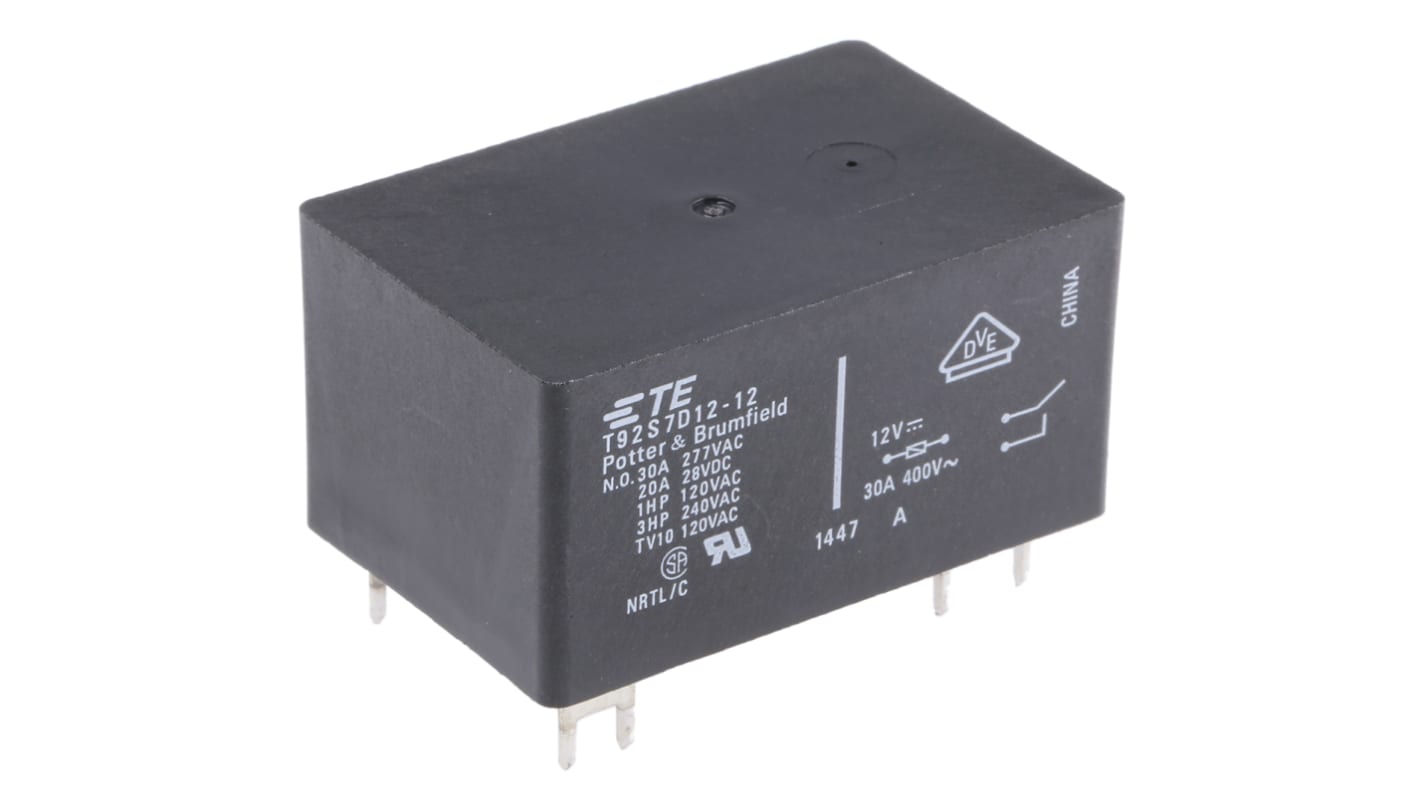

    TE Connectivity PCB Mount Power Relay, 12V dc Coil, 30A Switching Current, DPST

    RS Stock No.:
    719-6252
    Mfr. Part No.:
    T92S7D12-12
    Manufacturer:
    TE Connectivity
    TE Connectivity
    View all Power Relays
    124 In stock for delivery within 6 working days
    Add to Basket
    units

    Added

    Price (VAT excluded) Each

    Was TWD1,012.00

    You pay

    TWD780.00

    (exc. GST)

    TWD819.00

    (inc. GST)

    unitsPer unit
    1 - 24TWD780.00
    25 - 99TWD777.00
    100 +TWD766.00
    Packaging Options:
    RS Stock No.:
    719-6252
    Mfr. Part No.:
    T92S7D12-12
    Manufacturer:
    TE Connectivity

    Product overview and Technical data sheets


    Legislation and Compliance


    Product Details

    Power relay, T92-relay, 30 A, 2-pin changer and NO, print and flat connections


    Surface mount relay

    Approvals

    UL, CSA VDE

    TE Connectivity Non-latching Relay


    The TE Connectivity T92 series PCB mount non-latching relay has a contact configuration of DPST. It is actuated with 12VDC coil voltage and 30A switching current.

    Features and Benefits


    Coil power is 1.7W
    Coil resistance is 86ohm
    Contact material is AgCdO
    Operating temperature ranges between -40°C and 65°C
    Terminal type is through hole

    Certifications


    ANSI/ESD S20.20:2014
    BS EN 61340-5-1:2007

    For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.


    Specifications

    AttributeValue
    Coil Voltage12V dc
    Contact ConfigurationDPST
    Mounting TypePCB Mount
    Switching Current30A
    Number of Poles2
    LatchingNo
    Terminal TypeThrough Hole
    Maximum Switching Voltage AC600V ac
    Length52.32mm
    Coil Resistance86 Ω
    Coil Power1.7W
    Contact MaterialSilver Alloy
    Height30.7mm
    Isolation Coil To Contact4kVrms
    Depth34.5mm
    Minimum Operating Temperature-55°C
    Maximum Operating Temperature+85°C
    SeriesT92
    ApplicationPower
