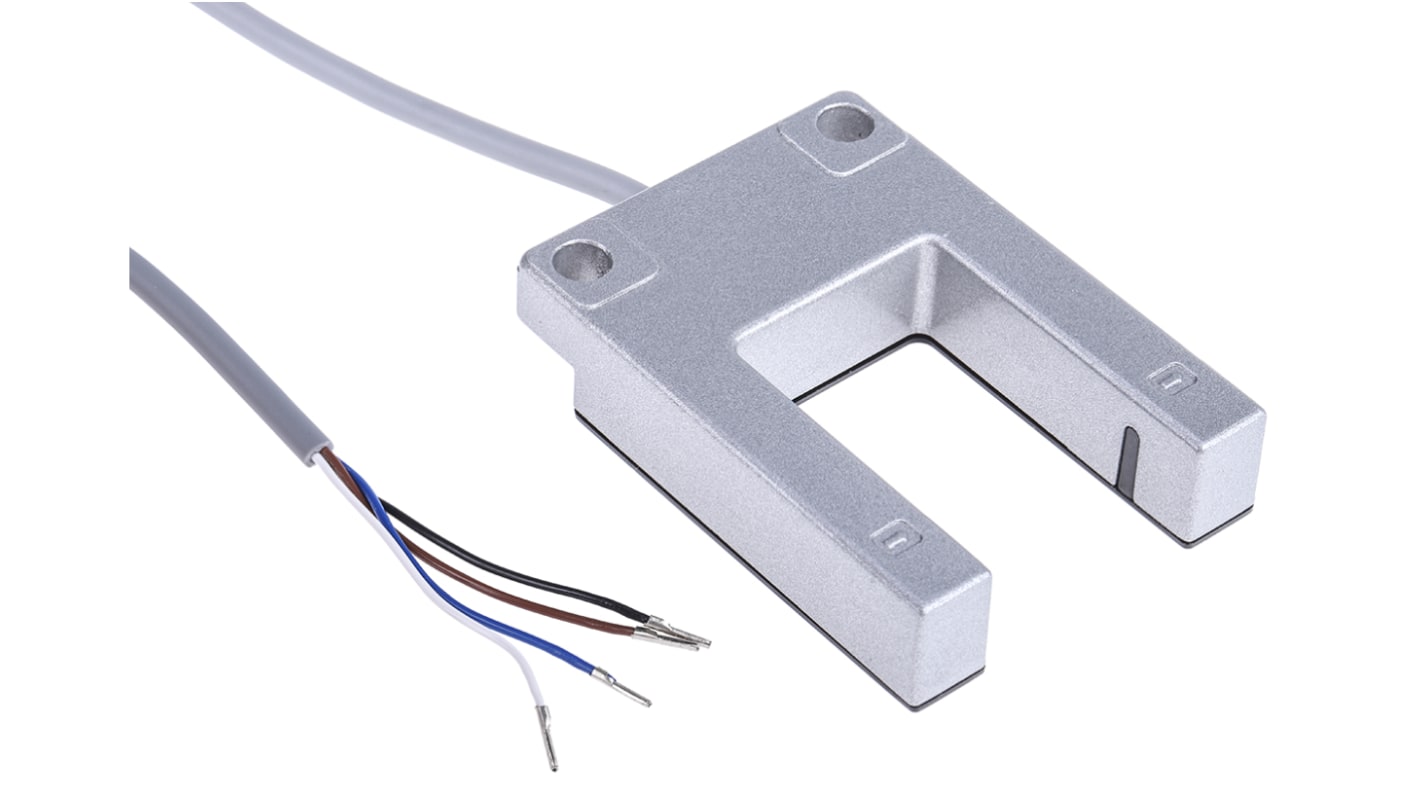

RS PRO Through Beam Photoelectric Sensor, Fork Sensor, 30 mm Detection Range
- RS Stock No.:
- 903-3933
- Manufacturer:
- RS PRO
91 In stock for delivery within 6 working days
Added
Price (VAT excluded) Each
TWD2,843.00
(exc. GST)
TWD2,985.15
(inc. GST)
| Units | Per unit |
| 1 - 4 | TWD2,843.00 |
| 5 + | TWD2,340.00 |
- RS Stock No.:
- 903-3933
- Manufacturer:
- RS PRO
Product overview and Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
U-shape Photoelectric Sensors
Through beam u-shape photoelectric sensors with LED indicator.
Accurate positioning
Quick response
Reverse polarity and surge protection
Housing material: PBT
Protection degree: IP65 (IEC)
Quick response
Reverse polarity and surge protection
Housing material: PBT
Protection degree: IP65 (IEC)
RS PRO Photoelectric Sensor Through Beam (Fork) 30 mm Detection Range PNP
A highly accurate tool for detecting small objects at close range, this through-beam photoelectric sensor from RS PRO can detect objects within a range of 30 mm. Through-beam sensors are ideally suited for use in foggy, dusty or dirty environments, as the light from the transmitter is aimed directly at the receiver.
The fork-style sensor comes in a lightweight but sturdy aluminium alloy housing. The panel-mount device comes prewired, with termination to a 2-metre, 4-wire cable. With a response time of 1 ms, it's a precision tool that's suitable for use in automated processes.
This product comes with surge protection and reverse polarity. It conforms to international (IEC) and European (CE) standards as a safe and effective photoelectric sensor and is IP67 rated for protection against dust and condensation.
This kind of sensor is typically used in industrial manufacturing applications such as fabrication facilities.
The fork-style sensor comes in a lightweight but sturdy aluminium alloy housing. The panel-mount device comes prewired, with termination to a 2-metre, 4-wire cable. With a response time of 1 ms, it's a precision tool that's suitable for use in automated processes.
This product comes with surge protection and reverse polarity. It conforms to international (IEC) and European (CE) standards as a safe and effective photoelectric sensor and is IP67 rated for protection against dust and condensation.
This kind of sensor is typically used in industrial manufacturing applications such as fabrication facilities.
Features and Benefits
• Photoelectric sensor
• Fork-style through-beam sensor
• Terminated in 2 m, 4-wire cable
• Prewired terminal
• Panel mounting
• Detection range of 30 mm
• Response time of 1 ms
• Housing material of aluminium alloy
• Minimum operating temperature of -15˚C
• Maximum operating temperature of +55˚C
• Maximum DC voltage of 30 V
• Maximum current of 15 mA
• NPN/PNP output
• Infrared light source
• LED technology
• CE-certified and UL-listed
• Meets CE and IEC safety standards
• Conforms to Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007
• RoHS (Restriction of Hazardous Substances) compliant
• Fork-style through-beam sensor
• Terminated in 2 m, 4-wire cable
• Prewired terminal
• Panel mounting
• Detection range of 30 mm
• Response time of 1 ms
• Housing material of aluminium alloy
• Minimum operating temperature of -15˚C
• Maximum operating temperature of +55˚C
• Maximum DC voltage of 30 V
• Maximum current of 15 mA
• NPN/PNP output
• Infrared light source
• LED technology
• CE-certified and UL-listed
• Meets CE and IEC safety standards
• Conforms to Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007
• RoHS (Restriction of Hazardous Substances) compliant
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
Specifications
Attribute | Value |
|---|---|
| Sensor Style | Fork |
| Detection Type | Through Beam |
| Detection Range | 30 mm |
| Output Type | PNP NONC |
| Electrical Connection | 2m Cable |
| Switching Mode | Light / Dark switching |
| Maximum DC Voltage | 30V |
| Terminal Type | Pre-Wired |
| Light Source | Infrared LED |
| IP Rating | IP67 |
| Maximum Current | 15mA |
| Response Time | Action and reset less than 0.6ms |
| Mounting Type | Panel Mount |
| Series | PU30 |
| Minimum Operating Temperature | -15°C |
| Maximum Operating Temperature | +55°C |
| Housing Material | Aluminium Alloy |
| Standards Met | CE, IEC |
