RS PRO Through Beam Photoelectric Sensor, Barrel Sensor

View all Photoelectric Sensors
Bulk discount available

Subtotal (1 unit)*

TWD6,095.00

(exc. GST)

TWD6,399.75

(inc. GST)

Add to Basket
Select or type quantity
In Stock
  • 1 unit(s) ready to ship from another location
  • Plus 13 unit(s) shipping from April 15, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4TWD6,095.00
5 +TWD5,974.00

*price indicative

RS Stock No.:
729-5123
Distrelec Article No.:
304-25-810
Manufacturer:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Sensor Style

Barrel

Product Type

Photoelectric Sensor

Detection Type

Through Beam

Output Type

PNP

Maximum DC Voltage

30V dc

Light Source

LED

IP Rating

IP67

Minimum Operating Temperature

-25°C

Materials Detected

Polymethyl Methacrylate

Maximum Current

100mA

Maximum Operating Temperature

55°C

Standards/Approvals

CE, E348498, NRKH7, RoHS Compliant, UL Listed (NRKH

Response Time

500μs

Hazardous Area Certification

No

Housing Material

Nickel Plated Brass, Polycarbonate

Mount Type

Flange

Detection Range

28 m

COO (Country of Origin):
CN

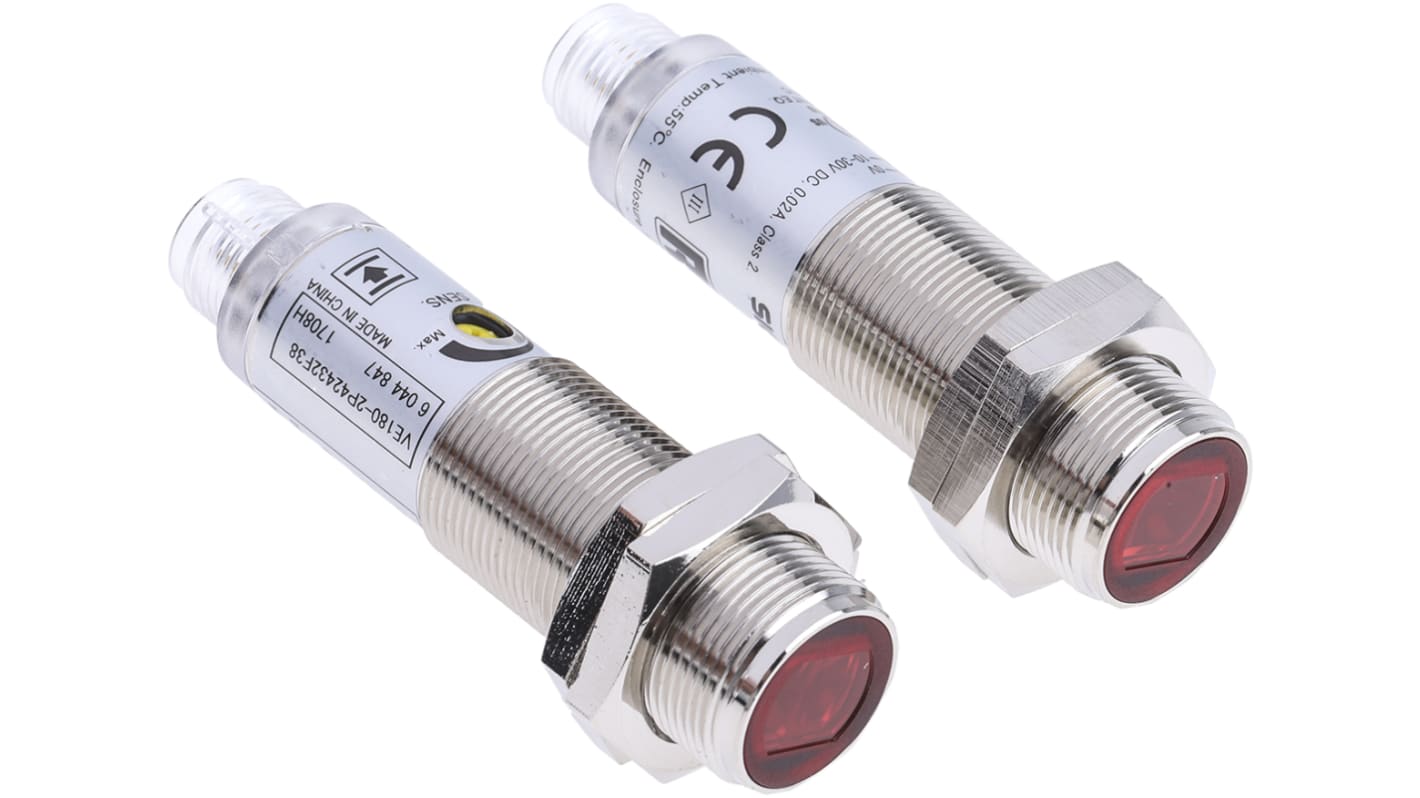

RS PRO Through Beam (Emitter) Photoelectric Sensor with Barrel Sensor, 28 m Detection Range


If you need to distinguish and calibrate objects as part of an industrial manufacturing process, for instance, consider this photoelectric sensor from the trusted RS PRO range. Using the combination of a light beam and polarising filter to detect the reflective surface of an object and then align it, it can perceive objects up to 28 m distant. Background blanking technology increases the device's accuracy.

The unit comprises a reflector and a mounting bracket to help you install it. The retroreflective barrel sensor is housed in a nickel-plated brass body that will resist corrosion.

The product is CE-certified and UL-listed, and also meets standards E348498 and NRKH7. These certifications and standards mean it's considered a safe, sustainable and effective device. In addition, it's IP67 rated, so it's water- and dirt-resistant.

Features and Benefits


• Photoelectric sensor

• Retroreflective

• Barrel style

• 4-pin M12 connector

• Flange mounting

• LED light source

• Detection range to 28 m

• Phototransistor optical technology

• Retroreflective optical technology

• Maximum DC voltage of 30 V

• Maximum current of 100 mA

• Response time of 0.5 ms

• Housing material of nickel-plated brass

• IP67 rated as water-resistant

• Minimum operating temperature of -25˚C

• Maximum operating temperature of +55˚C

• PNP output

• CE-certified and UL-listed

• Meets standards E348498 and NRKH7

• Conforms to Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007

• RoHS (Restriction of Hazardous Substances) compliant

RS PRO


RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
