    RS PRO IVP-1 Non Contact Voltage Detector, 100V ac to 1000V ac

    RS PRO
    RS Stock No.:
    123-3247
    Manufacturer:
    RS PRO
    View this category
    7 In CN stock for delivery within 2 working day(s) (local stock)
    259 In Global stock for delivery within 6 working day(s)
    Add to Basket
    units

    Added

    Price (VAT excluded) Each

    Was TWD982.00

    You pay

    TWD835.00

    (exc. GST)

    TWD876.75

    (inc. GST)

    unitsPer unit
    1 - 4TWD835.00
    5 +TWD687.00
    RS Stock No.:
    123-3247
    Manufacturer:
    RS PRO

    Product overview and Technical data sheets


    Legislation and Compliance

    COO (Country of Origin):
    TW

    Product Details

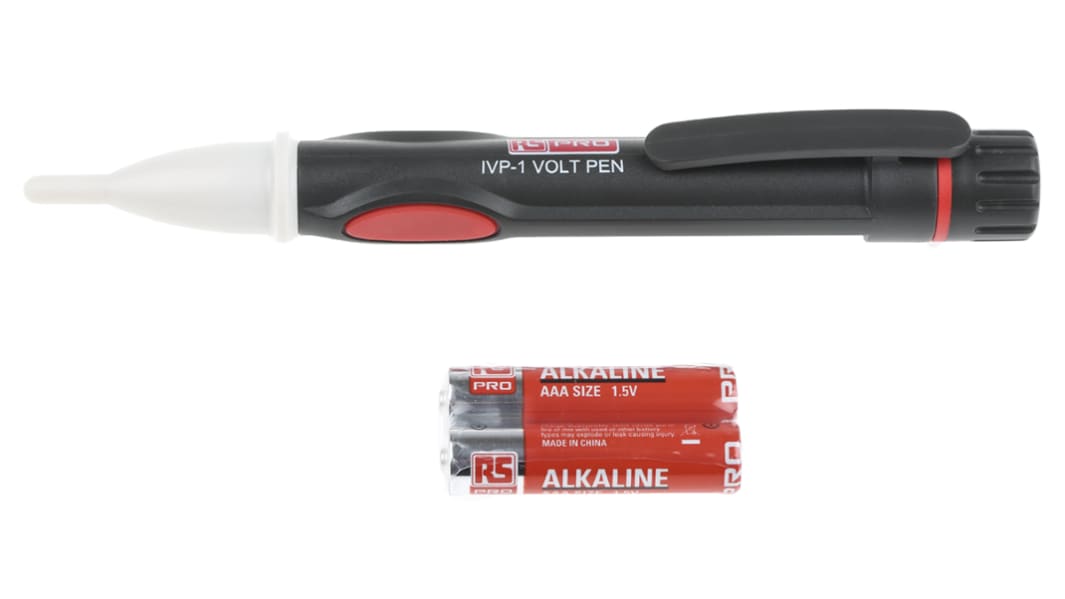

    RS PRO IVP-1 Non Contact Voltage Indicator


    The IVP-1 Volt Stick is a pen style non-contact voltage detector from our high quality RS PRO brand. Able to safely check the presence of an AC voltage within cables, wall sockets and fuses junction boxes, conveniently no current flow is needed for operation.

    Ergonomically designed the tester features a convenient battery cap, soft curved grip for comfort, with a clip for pocket or tool bag storage. Other features include a visible LED, acoustic buzzer and auto power off saving essential battery life.

    Features and Benefits:


    • Tip glows red and the audible sounder activates when a voltage is detected
    • Locates breaks in cables
    • Detects blown fuses inside plugs or fuse holders
    • Distinguish between live and neutral wires in both single and 3 phase supplies
    • Identifies voltage-carrying cables in junction boxes
    • Identifies faulty inline switches
    • Locates faulty lamps in series connections
    • Complies with IEC 61010-1 CAT IV 600 V

    Frequently asked questions:


    What is a non-contact voltage tester used for?
    Voltage testers or detectors are used to check the flow of current through a circuit. They can be used to check safety, or to ensure equipment is functioning correctly. They can also test for the current strength, whether the circuit is grounded correctly or to ensure no current is flowing at all so that work can be begin on the circuit.

    How do non-contact voltage testers work?
    Also known as a voltage detector, voltage tester pens, sensors or test pens. They allow the user to test electrical conductors without touching them. Non-contact testers are the safest and easiest way to detect electric fields or voltage. Voltage testers utilise what is called capacitive coupling, the user holding the instrument provides a ground reference. The tester then detects changing electric field around the object or objects conducting an AC current. (Alternating current) Simply put, the user and the tester pen when near the electrical conductor will cause a small current to flow through the tester from the source, this is how it detects AC voltage.

    Note

    Periodically wipe the VOLT PEN with a dry cloth, do not use abrasive or solvents

    Caution

    Will not detect cables behind buried plaster, buried trunking and will not detect output from safety isolation transformers with earthed secondary centre tap. The unit should be checked for correct operation using a known voltage before use.

    Supplied with

    2 x AAA batteries & instructions

    Specifications

    AttributeValue
    Indicator TypeVoltage
    Battery TypeAAA
    Power SourceBattery
    Safety CategoryCAT III 1000 V / CAT IV 600 V, CAT IV, CAT lll
    Weight40g
    Height18mm
    Length152mm
    Maximum Detection Voltage1000V ac
    Minimum Detection Voltage100V ac
    Maximum Operating Temperature+40°C
    Width22mm
    Model Number pIVP-1
    Safety Category LevelCAT IV
    Safety Category Voltage1000V
    Minimum Operating Temperature0°C
