Omron F3SG-RE Series Light Curtain, Sender & Receiver, 15 Beam(s), 14mm Resolution
- RS Stock No.:
- 125-0673
- Mfr. Part No.:
- F3SG-2RE0160P14
- Manufacturer:
- Omron
2 In stock for delivery within 6 working days
Added
Price (VAT excluded) 1 Pair
TWD19,951.00
(exc. GST)
TWD20,948.55
(inc. GST)
| Pair(s) | Per Pair |
| 1 + | TWD19,951.00 |
- RS Stock No.:
- 125-0673
- Mfr. Part No.:
- F3SG-2RE0160P14
- Manufacturer:
- Omron
Product overview and Technical data sheets
Legislation and Compliance
Product Details

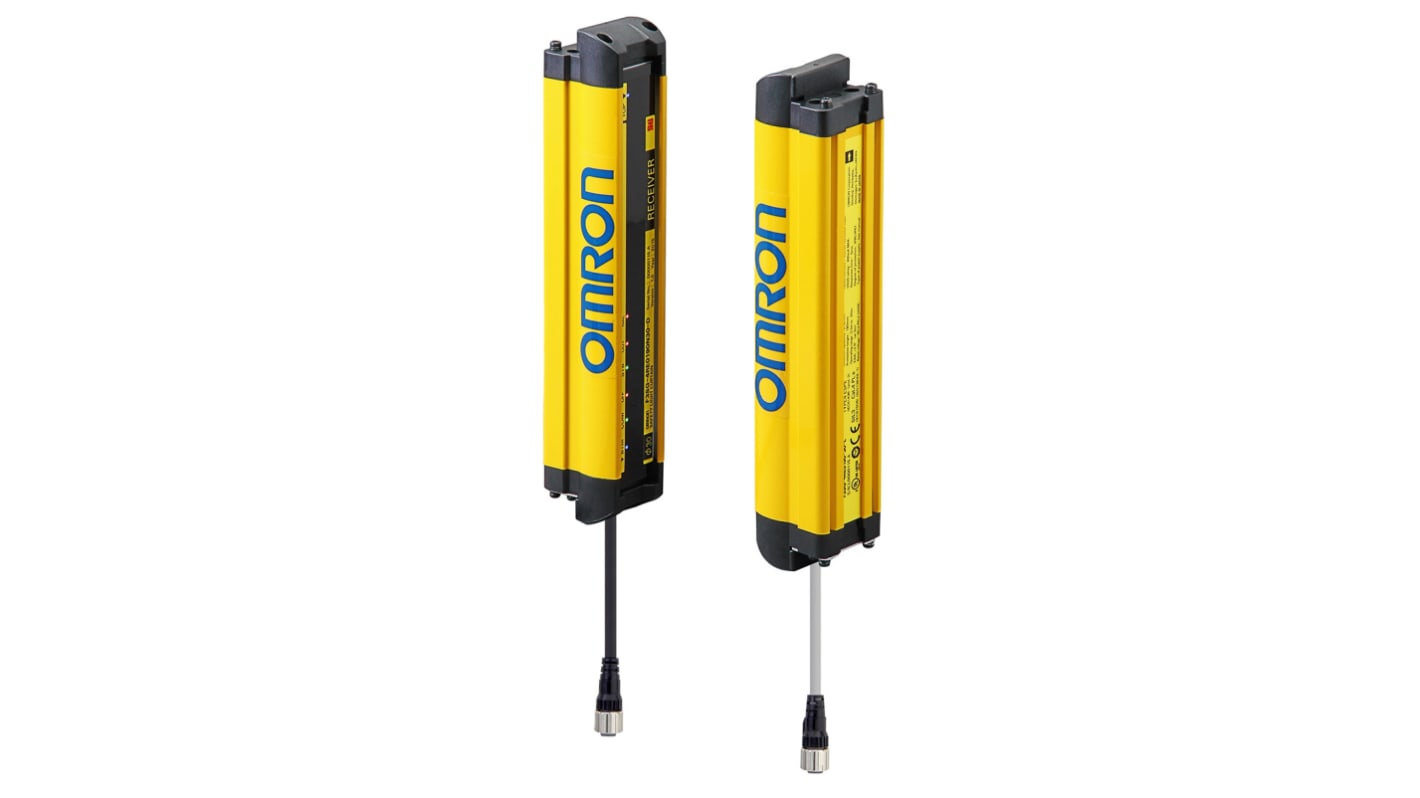

Omron Light Curtain
The Omron F3SG-RE series light curtain is a finger protection safety sensor. This is a sender and receiver component type with 15 beams and 14mm resolution. The easy-to-use safety light curtain is ideal for simple ON/OFF detection applications. The curtain is available in Type 2 (PL c) with self-test function. It is simple to mount, operate and maintain.
Online troubleshooting in 8 languages:
Troubleshooting support for safety light curtain errors in your local language is available. Simply apply a QR code sticker to the machine and scan with your tablet or smartphone. Also, it is accessible by a computer. Operators can check the error details in 8 languages and download manuals from a dedicated website. Languages include English, Spanish, French, Chinese, Korean, Japanese, German and Italian.
Online troubleshooting in 8 languages:
Troubleshooting support for safety light curtain errors in your local language is available. Simply apply a QR code sticker to the machine and scan with your tablet or smartphone. Also, it is accessible by a computer. Operators can check the error details in 8 languages and download manuals from a dedicated website. Languages include English, Spanish, French, Chinese, Korean, Japanese, German and Italian.
Features and Benefits
Protective height of 160mm
Torsion-resistant for fast and simple alignment
Smart-click 1/8 turn quick-connect M12 cable connection for fast setup and correct torque
Sensing distance ranges from 0.3m to 10m
QR code indication for easy online troubleshooting
Provides simple safety functions - saving TCO by reducing errors
Simple wiring with only 4 wires
Fast response time of 5ms
Cable terminal type with 4-Pin M12 Connector
Torsion-resistant for fast and simple alignment
Smart-click 1/8 turn quick-connect M12 cable connection for fast setup and correct torque
Sensing distance ranges from 0.3m to 10m
QR code indication for easy online troubleshooting
Provides simple safety functions - saving TCO by reducing errors
Simple wiring with only 4 wires
Fast response time of 5ms
Cable terminal type with 4-Pin M12 Connector
Certifications
IP67 rated
EN ISO 13849-1:2008
TUV approved
UL approved
CE certified
EN ISO 13849-1:2008
TUV approved
UL approved
CE certified
Specifications
Attribute | Value |
|---|---|
| Series | F3SG-RE |
| Beam Resolution | 14mm |
| Component Type | Receiver, Sender |
| Safety Type | 2 |
| PL EN ISO 13849-1 | c |
| Number of Beams | 15 |
| Protective Height | 160mm |
| Minimum Scanning Distance | 0.3m |
| Maximum Scanning Distance | 10m |
| Maximum Response Time | 125 (OFF to ON Not Synchronized) ms, 25 (OFF to ON Synchronized) ms, 5 (ON to OFF) ms |
| Length | 35mm |
| Supply Voltage | 24 V dc |
| Height | 160mm |
| Terminal Type | 4-Pin M12 Connector |
| Features | Downsized, Easy Adjustment after Mounting, Ensuring Safe Restart, No Torque Control Required, Protected with Protection Cover, Quick Troubleshooting, Reducing Stops Due to Mutual Interference, Reliable Even in Harsh Environment, Robust & Compact Design, Slim Housing, Smart Muting Actuator, Used in Global & Harsh Environment |
| Application | Arm, Finger, Hand |
| Dimensions | 35 x 35 x 160 mm |
| Width | 35mm |
