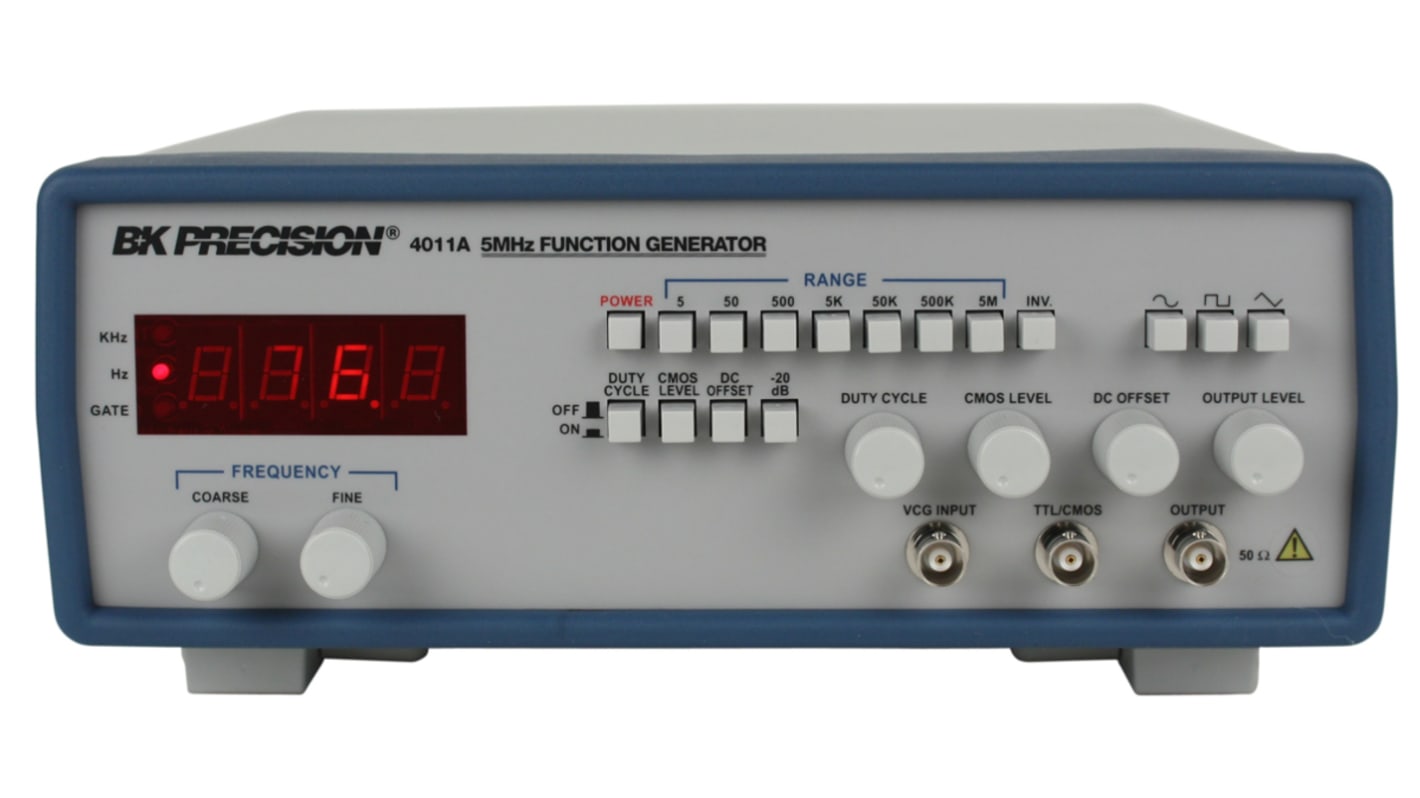

BK Precision 4011A Function Generator, 0.5Hz Min, 5MHz Max
- RS Stock No.:
- 175-2533
- Mfr. Part No.:
- BK4011A
- Manufacturer:
- BK Precision
View all Function Generators
Temporarily out of stock - back order for despatch 15/12/2023, delivery within 6 working days
Price (VAT excluded) Each
TWD26,714.00
(exc. GST)
TWD28,049.70
(inc. GST)
| units | Per unit |
| 1 + | TWD26,714.00 |
- RS Stock No.:
- 175-2533
- Mfr. Part No.:
- BK4011A
- Manufacturer:
- BK Precision
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Features include:
0.5 Hz to 5 MHz
Sine, Square, Triangle, Pulse, & Ramp output
Coarse and Fine tuning
4 digit LED display
Variable duty cycle
Variable DC offset
Variable amplitude output plus 20dB attenuator
20Vpp output into open circuit (10Vpp into 50 Os)
cUL certified
Sine, Square, Triangle, Pulse, & Ramp output
Coarse and Fine tuning
4 digit LED display
Variable duty cycle
Variable DC offset
Variable amplitude output plus 20dB attenuator
20Vpp output into open circuit (10Vpp into 50 Os)
cUL certified
Specifications
| Attribute | Value |
| Model Number | 4011A |
| Maximum Frequency Range Sinewave | 5MHz |
| Minimum Frequency Range Sinewave | 0.5Hz |
| Maximum Frequency Range Square Pulse and Arbitrary Waveform | 5MHz |
| Minimum Frequency Range Square Pulse and Arbitrary Waveform | 0.5 Hz |
| Maximum Frequency Range Triangle/Saw | 5MHz |
| Minimum Frequency Range Triangle/Saw | 0.5Hz |
| Time Base Accuracy | ±10ppm |
| Attenuation | -20dB |
| CMOS Output Level | 4 → 14V Pk-Pk |
| Dimensions | 298 x 264 x 114mm |
| Output Amplitude | 20V Pk-Pk |
| Output Impedance | 50Ω |
| Weight | 1.8kg |
| Length | 298mm |
| TTL Output Level | 0.8 → 2.4V |
| Input Impedance | 10 kΩ |
| Width | 264mm |
| Frequency Range Square Pulse and Arbitrary Waveform | 0.5 Hz → 5 MHz |
| Height | 114mm |
