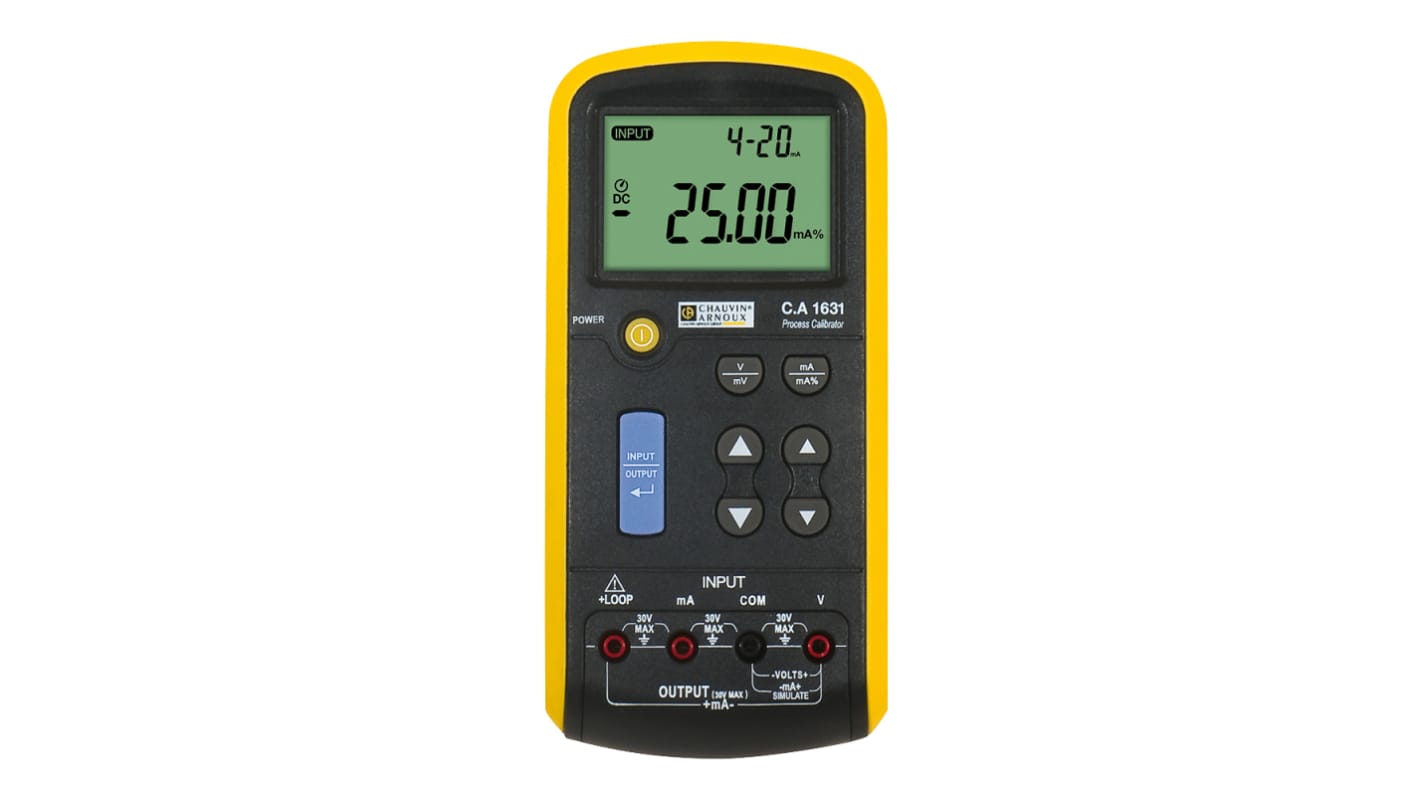

Chauvin Arnoux CA 1631 Current & Voltage Calibrator, Max Voltage 20V dc 24 mA
- RS Stock No.:
- 758-8936
- Distrelec Article No.:
- 303-66-495
- Mfr. Part No.:
- P01654402
- Manufacturer:
- Chauvin Arnoux
Subtotal (1 unit)*
TWD33,276.00
(exc. GST)
TWD34,939.80
(inc. GST)
FREE delivery for orders over NT$1,300.00
Temporarily out of stock
- 2 unit(s) shipping from October 08, 2026
- Plus 2 unit(s) shipping from October 15, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | TWD33,276.00 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
TWD28,790.00
(exc. GST)
TWD30,229.50
(inc. GST)
- RS Stock No.:
- 758-8936
- Distrelec Article No.:
- 303-66-495
- Mfr. Part No.:
- P01654402
- Manufacturer:
- Chauvin Arnoux
Specifications
Product overview and Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Chauvin Arnoux | |
| Maximum Voltage Measurement | 20V dc | |
| Product Type | Current & Voltage Calibrator | |
| Maximum Current Measurement | 24mA | |
| Accuracy | ±0.015 % | |
| Standards/Approvals | No | |
| Power Source | Mains, Battery | |
| Battery Type | AAA | |
| Weight | 472g | |
| Height | 45mm | |
| Length | 205mm | |
| Maximum Operating Temperature | 55°C | |
| Hazardous Area Certification | No | |
| Maximum Source Current | 24mA | |
| Model Number | CA 1631 | |
| Minimum Source Voltage | 0V | |
| Minimum Source Current | 0mA | |
| Minimum Operating Temperature | -10°C | |
| Width | 97mm | |
| Maximum Source Voltage | 20V | |
| Safety Category Voltage | 30V | |
| Select all | ||
|---|---|---|
Brand Chauvin Arnoux | ||
Maximum Voltage Measurement 20V dc | ||
Product Type Current & Voltage Calibrator | ||
Maximum Current Measurement 24mA | ||
Accuracy ±0.015 % | ||
Standards/Approvals No | ||
Power Source Mains, Battery | ||
Battery Type AAA | ||
Weight 472g | ||
Height 45mm | ||
Length 205mm | ||
Maximum Operating Temperature 55°C | ||
Hazardous Area Certification No | ||
Maximum Source Current 24mA | ||
Model Number CA 1631 | ||
Minimum Source Voltage 0V | ||
Minimum Source Current 0mA | ||
Minimum Operating Temperature -10°C | ||
Width 97mm | ||
Maximum Source Voltage 20V | ||
Safety Category Voltage 30V | ||
- COO (Country of Origin):
- CN
Chauvin Arnoux Calibrators CA1621, CA1623 & CA1631
These compact, robust, easy-to-handle calibrators have large LCD screens and are suitable for use in highly diverse on-site conditions. They can calibrate an instrument in its operating environment and without removing it from the process. The principal functions are simulation and measurement. They simulate a signal or generate a quantity with precisely-defined values, for applying upstream of the measurement chain, and measure the signal. The CA1621, CA1623 & CA1631 calibrators are designed to accurately measure, generate or simulate all the low-level signals encountered in industry. Applications include maintenance operations, commissioning, verification, On-Line calibration and adjustment and testing of measurement lines.
Instruments for use in developing and verifying measurement chains
CA1621 temperature calibrator for J,K,T,E,R,S,B,N thermocouples and voltage in mV
CA1623 temperature calibrator for Pt10,Pt50,Pt100,Pt200,Pt500,Pt1000 and Pt1000(JIS) probes and resistance
CA1631 current loop calibrator for measuring and supplying DC current loop 0 to 24mA, dc voltage between 0 and 20V
Calibrator dimensions 205 x 97 x 45mm
Calibrator weight 472g (including batteries)
Supplied with
Test wires (2 pairs), crocodile clip, 6AAA 1.5V batteries (6), operating manual in 5 languages, carrying case
