Neutrik Panel Mount XLR Connector, Male, 50 V ac, 3 Way, Gold over Nickel Plating
- RS Stock No.:
- 694-9342
- Mfr. Part No.:
- NC3MPR-HD
- Manufacturer:
- Neutrik
Available for back order.
Price (VAT excluded) Each
TWD492.00
(exc. GST)
TWD516.60
(inc. GST)
Units | Per unit |
|---|---|
| 1 - 14 | TWD492.00 |
| 15 - 49 | TWD481.00 |
| 50 - 99 | TWD471.00 |
| 100 + | TWD461.00 |
- RS Stock No.:
- 694-9342
- Mfr. Part No.:
- NC3MPR-HD
- Manufacturer:
- Neutrik
Product overview and Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- LI
Product Details

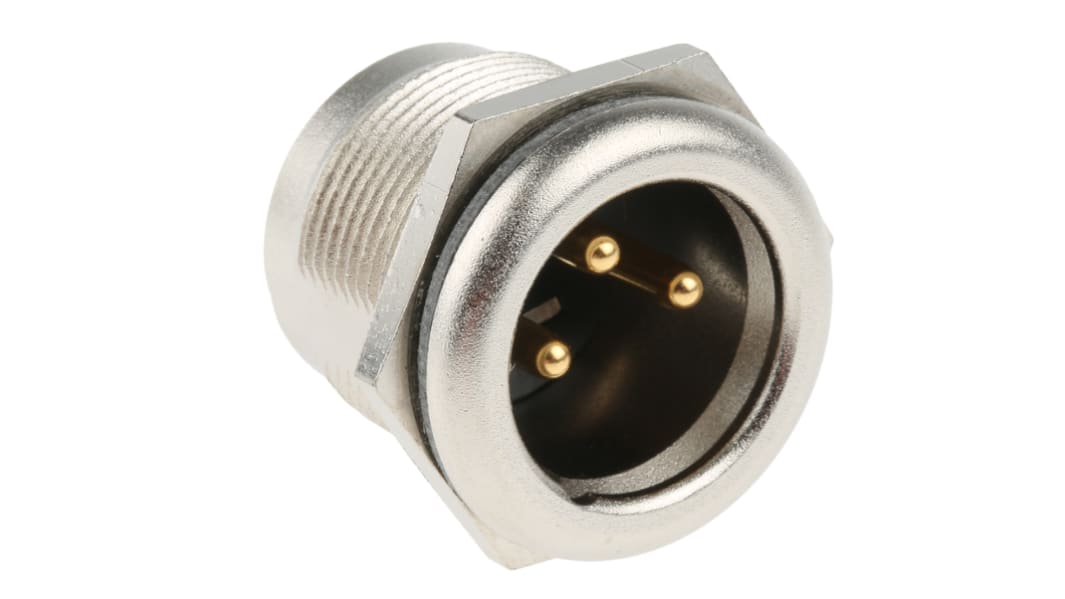

Neutrik XLR Connector
The Neutrik 3-contacts male XLR connector has a voltage rating of 50V and a current rating of 16A. This connector has a gold over nickel plating. This XLR chassis connector is for outdoor use, weatherproof applications as well as for a wide range of industrial applications.
Features and Benefits
Dust and water ingress protected to IP65 when using mating cable connector
Fastening nut included
Sealing gasket for water tight panel mount
Fastening nut included
Sealing gasket for water tight panel mount
Certifications
IP65 rated
IP67 rated
IP67 rated
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 3 |
| Gender | Male |
| Mounting Type | Panel Mount |
| Body Orientation | Straight |
| Contact Plating | Gold over Nickel |
| Housing Material | Nylon |
| Current Rating | 16A |
| Voltage Rating | 50 V ac |
| Contact Material | Brass |
| Minimum Operating Temperature | -30°C |
| Maximum Operating Temperature | +80°C |
