RS PRO Panel XLR Connector, Straight Female, 4 Way, Silver Plating
- RS Stock No.:
- 548-9111
- Distrelec Article No.:
- 304-04-757
- Manufacturer:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
TWD60.00
(exc. GST)
TWD63.00
(inc. GST)
FREE delivery for orders over NT$1,300.00
In Stock
- Plus 319 unit(s) shipping from April 20, 2026
- Plus 570 unit(s) shipping from July 22, 2026
- Plus 570 unit(s) shipping from August 19, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 99 | TWD60.00 |
| 100 - 249 | TWD58.00 |
| 250 - 499 | TWD55.00 |
| 500 - 2499 | TWD54.00 |
| 2500 + | TWD53.00 |
*price indicative
- RS Stock No.:
- 548-9111
- Distrelec Article No.:
- 304-04-757
- Manufacturer:
- RS PRO
Specifications
Product overview and Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | XLR Connector | |
| Number of Contacts | 4 | |
| Mount Type | Panel | |
| Orientation | Straight | |
| Connector Gender | Female | |
| Colour | Natural | |
| Contact Plating | Silver | |
| Housing Material | Zinc | |
| Termination Type | Solder | |
| Contact Material | Brass | |
| Contact Gender | Female | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type XLR Connector | ||
Number of Contacts 4 | ||
Mount Type Panel | ||
Orientation Straight | ||
Connector Gender Female | ||
Colour Natural | ||
Contact Plating Silver | ||
Housing Material Zinc | ||
Termination Type Solder | ||
Contact Material Brass | ||
Contact Gender Female | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- CN

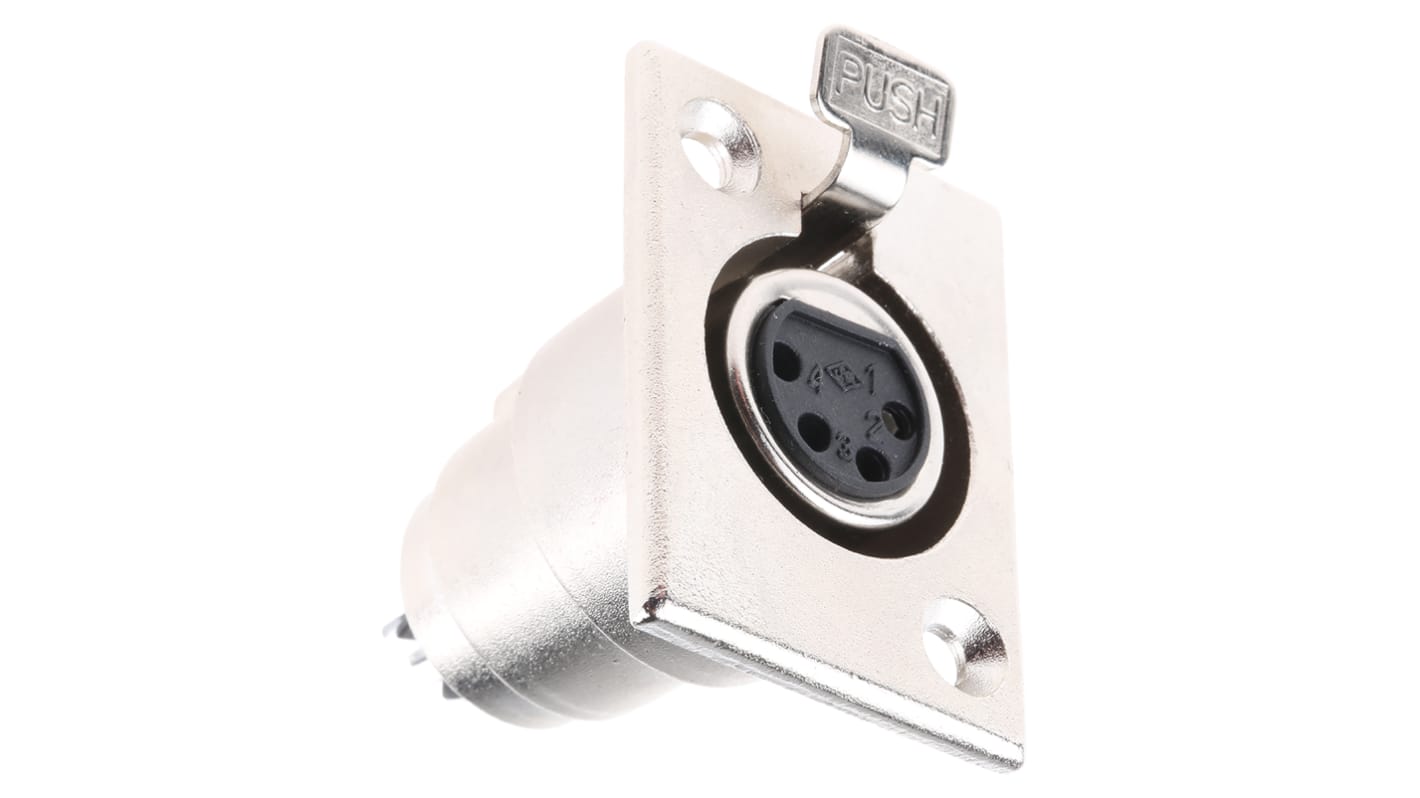

RS PRO Panel Mount XLR Connector, Female, 4-Way, Silver Plating
Need to create a secure connection to your audio and stage equipment? Try this female XLR (external line return) socket from the RS PRO range. It has four contacts that enable a secure plug attachment. It also comes with a squeeze-release clip mechanism that allows for quick and easy disconnection.
Thanks to the standard housing design and two fixing holes, this socket can be quickly and easily panel-mounted. The casing is crafted from a die-cast zinc material for strength and rigidity. The highly conductive silver-plated brass contacts offer high reliability. For improved wire retention, the solder tags include holes and are suitable for wire sizes ranging from 2.8 mm to 8 mm.
You can use XLR connectors to hook up headsets and microphones in the leisure, communication and entertainment industries. They're also often used in recording studios, theatres and conference centres.
Features and Benefits
