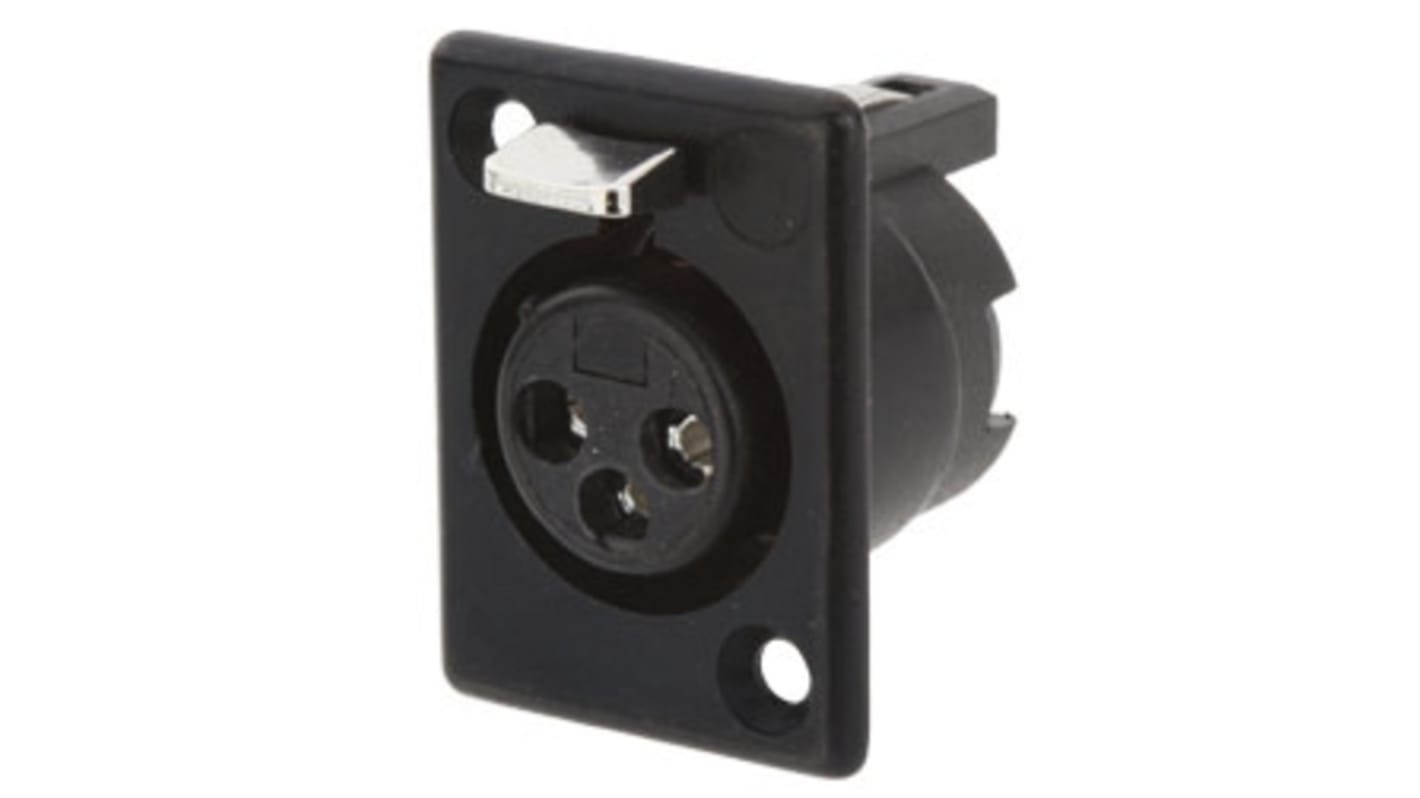

Deltron Panel Mount XLR Connector, Female, 50 V ac, 3 Way, Silver Plating
- RS Stock No.:
- 180-6774
- Mfr. Part No.:
- 710-0300
- Manufacturer:
- Deltron
49 In stock for delivery within 6 working days
Price (VAT excluded) Each
TWD443.00
(exc. GST)
TWD465.15
(inc. GST)
Units | Per unit |
|---|---|
| 1 - 9 | TWD443.00 |
| 10 - 24 | TWD426.00 |
| 25 - 49 | TWD408.00 |
| 50 + | TWD399.00 |
- RS Stock No.:
- 180-6774
- Mfr. Part No.:
- 710-0300
- Manufacturer:
- Deltron
Product overview and Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
A range of panel mounting audio and video connectors incorporating many innovative features, compatible with all leading manufactures' cable plugs
Pressed socket contacts which 'float'to assist plug mating,also ensuring a positive 'Wrap round'contact with the pin,Which can 'move'with the pins should any movement occur between mating connectors.
A simple press down,squeeze clip release mechanism makes it particularly easy to use.
Generous solder buckets enable easier cable assembly as well as catering for larger conductive sizes.
Available in satin nickel or black chrome finish.
A simple press down,squeeze clip release mechanism makes it particularly easy to use.
Generous solder buckets enable easier cable assembly as well as catering for larger conductive sizes.
Available in satin nickel or black chrome finish.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 3 |
| Gender | Female |
| Mounting Type | Panel Mount |
| Contact Plating | Silver |
| Housing Material | Zinc Alloy |
| Termination Method | Solder |
| Current Rating | 15A |
| Voltage Rating | 50 V ac |
| Contact Material | Phosphor Bronze |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +70°C |
