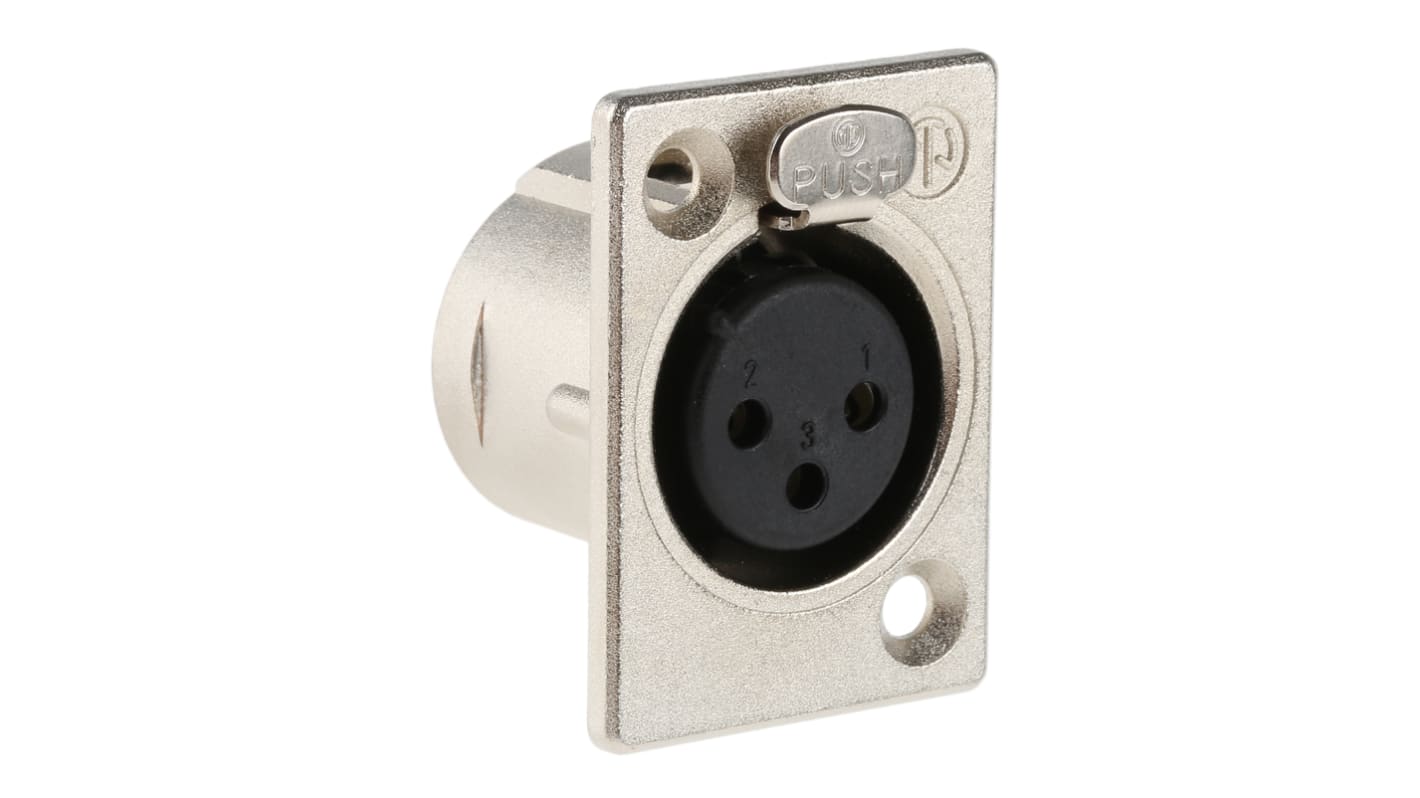

Neutrik Panel Mount XLR Connector, Female, 50 V, 3 Way, Silver over Nickel Plating

RS Stock No.:: 405-613
Mfr. Part No.:: NC3FP1
Manufacturer:: Neutrik

Neutrik Panel Mount XLR Connector, Female, 50 V, 3 Way, Silver over Nickel Plating

1 In CN stock for delivery within 2 working day(s) (local stock)

4727 In Global stock for delivery within 6 working day(s)

Added

Price (VAT excluded) Each

TWD159.00

(exc. GST)

TWD166.95

(inc. GST)

Units	Per unit
1 - 14	TWD159.00
15 - 49	TWD153.00
50 - 99	TWD147.00
100 +	TWD144.00

RS Stock No.:: 405-613
Mfr. Part No.:: NC3FP1
Manufacturer:: Neutrik

Product overview and Technical data sheets

Legislation and Compliance

COO (Country of Origin):: LI

Product Details

Neutrik XLR Connector

The Neutrik P series female XLR connector has three contacts with silver over nickel plating. It has a current rating is 16A and the voltage rating is 50V. It is the smallest available traditional style metal panel mount connector with large solder cups for ease of hard wiring.
Warning:
Not to be used as mains connectors.

Features and Benefits

Compatible with Switch craft® DxM, DxF

Cannon XLRx31, XLRx32
Connector/cable assembly is straightforward, employing a minimal number of parts
Front mount only
One-piece version insert is not removable from shell
Short female receptacle
Housing material is nylon
Operating temperature ranging between -30°C and 80°C

Certifications

UL 94 HB approved
IP40 rated
IEC 61076-2-103
IEC 68-2-20

Specifications

Attribute	Value
Number of Contacts	3
Gender	Female
Mounting Type	Panel Mount
Body Orientation	Straight
Contact Plating	Silver over Nickel
Housing Material	Nylon
Termination Method	Solder
Current Rating	16A
Voltage Rating	50 V
Contact Material	Bronze
Minimum Operating Temperature	-30°C
Maximum Operating Temperature	+80°C
