Norgren Pressure Switch Male Positive Pressure

RS Stock No.:: 407-6089
Mfr. Part No.:: 0882300000000000
Manufacturer:: Norgren

Norgren Pressure Switch Male Positive Pressure

Bulk discount available

Subtotal (1 unit)*

TWD6,037.00

(exc. GST)

TWD6,338.85

(inc. GST)

FREE delivery for orders over NT$1,300.00

In Stock

22 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 5	TWD6,037.00
6 +	TWD5,783.00

*price indicative

RS Stock No.:: 407-6089
Mfr. Part No.:: 0882300000000000
Manufacturer:: Norgren

Specifications

Product overview and Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Norgren
	Product Type	Pressure Switch
	Accuracy	4% of Final Value (Depending on Regulating Pressure), Repeatability: 3% for Vacuum
	Switch Output	Micro switch SPDT
	Pressure Type	Positive Pressure
	Electrical Connection Type	G 1/4
	Connection Gender	Male
	Connection Thread Size	1/4 in
	Series	18D
	Minimum Set Pressure	-1bar
	Maximum Set Pressure	30bar
	Connection Thread Standard	G
	Maximum Operating Temperature	80°C
	Width	44 mm
	Depth	67mm
	Height	85mm
	Standards/Approvals	UL, DIN, CSA

	Select all
	Brand Norgren
	Product Type Pressure Switch
	Accuracy 4% of Final Value (Depending on Regulating Pressure), Repeatability: 3% for Vacuum
	Switch Output Micro switch SPDT
	Pressure Type Positive Pressure
	Electrical Connection Type G 1/4
	Connection Gender Male
	Connection Thread Size 1/4 in
	Series 18D
	Minimum Set Pressure -1bar
	Maximum Set Pressure 30bar
	Connection Thread Standard G
	Maximum Operating Temperature 80°C
	Width 44 mm
	Depth 67mm
	Height 85mm
	Standards/Approvals UL, DIN, CSA

RoHS Status: Exempt

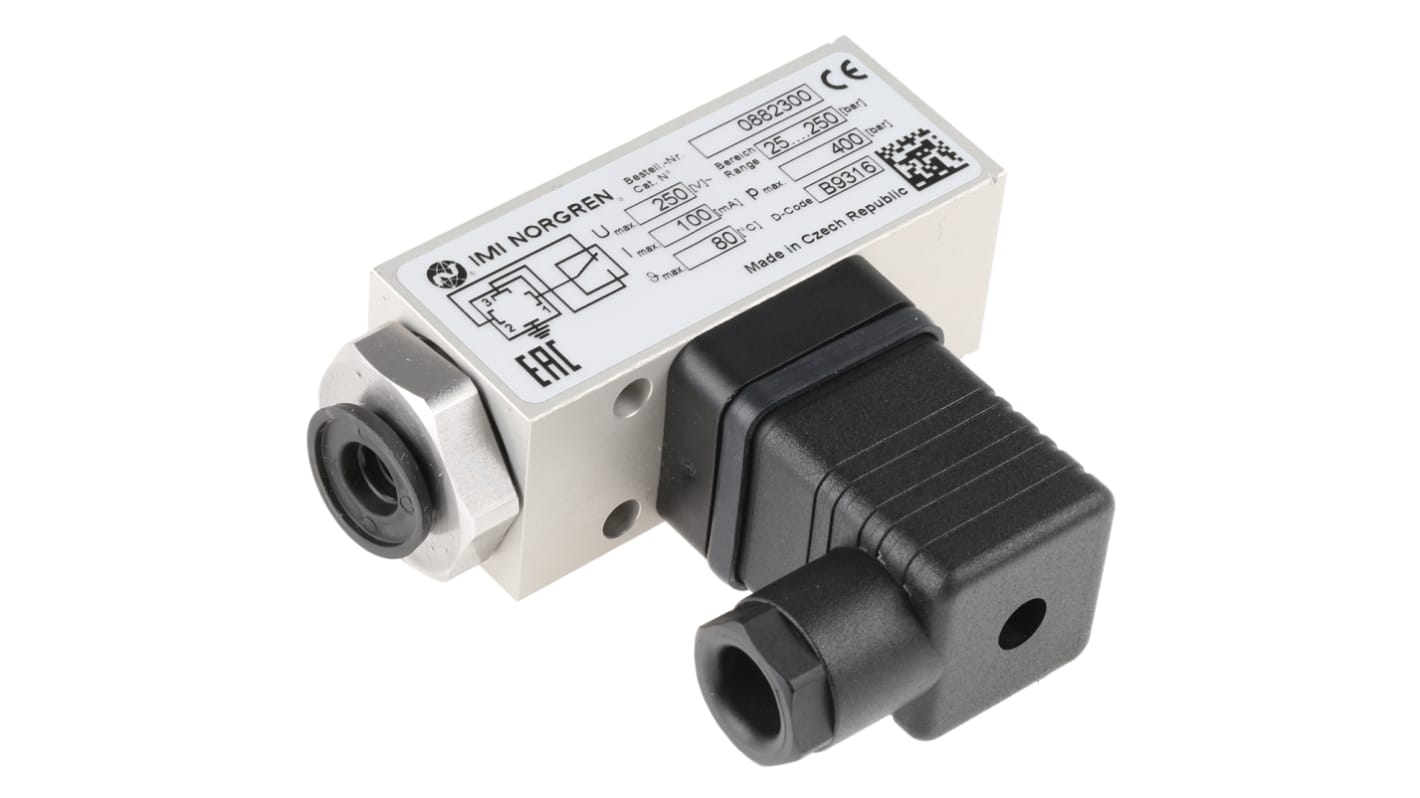

IMI Norgren Electromechanical Pressure Switch, G1/4, 25 to 250 Bar - 18D Series - 0882300

Regulate the flow of fluid and oil in your pneumatic system with this pressure switch from IMI Norgren. It monitors the pressure level based on a pre-set value and shuts off or opens your compressor to maintain it. Thanks to its broad operating pressure range between 25 and 250 bar, you can use this unit in both low-pressure and high-pressure applications. As this switch is made from aluminium, it's impact-resistant and durable for use in demanding environments. A mechanical life cycle of 10,000,000 means it's a long-lasting choice.

Features & Benefits

• Measures in both bar and psi (pounds per square inch) for versatile use• Vibration-resistant to withstand harsh environments

• Microswitch with gold-plated contacts is resistant to corrosion for added durability

• Broad operating temperature range between -20°C and +80°C for use in demanding environments

Applications

• Hydraulic machines

• Water treatment facilities

• Oil and gas industry

Is this switch leak-proof?

Yes, it is. This unit is sealed with heat-resistant PTFE (polytetrafluoroethylene or Teflon) and NBR (nitrile butadiene rubber) materials for an airtight finish to prevent leaks, even in extreme temperatures.

Approvals

UL; CSA
