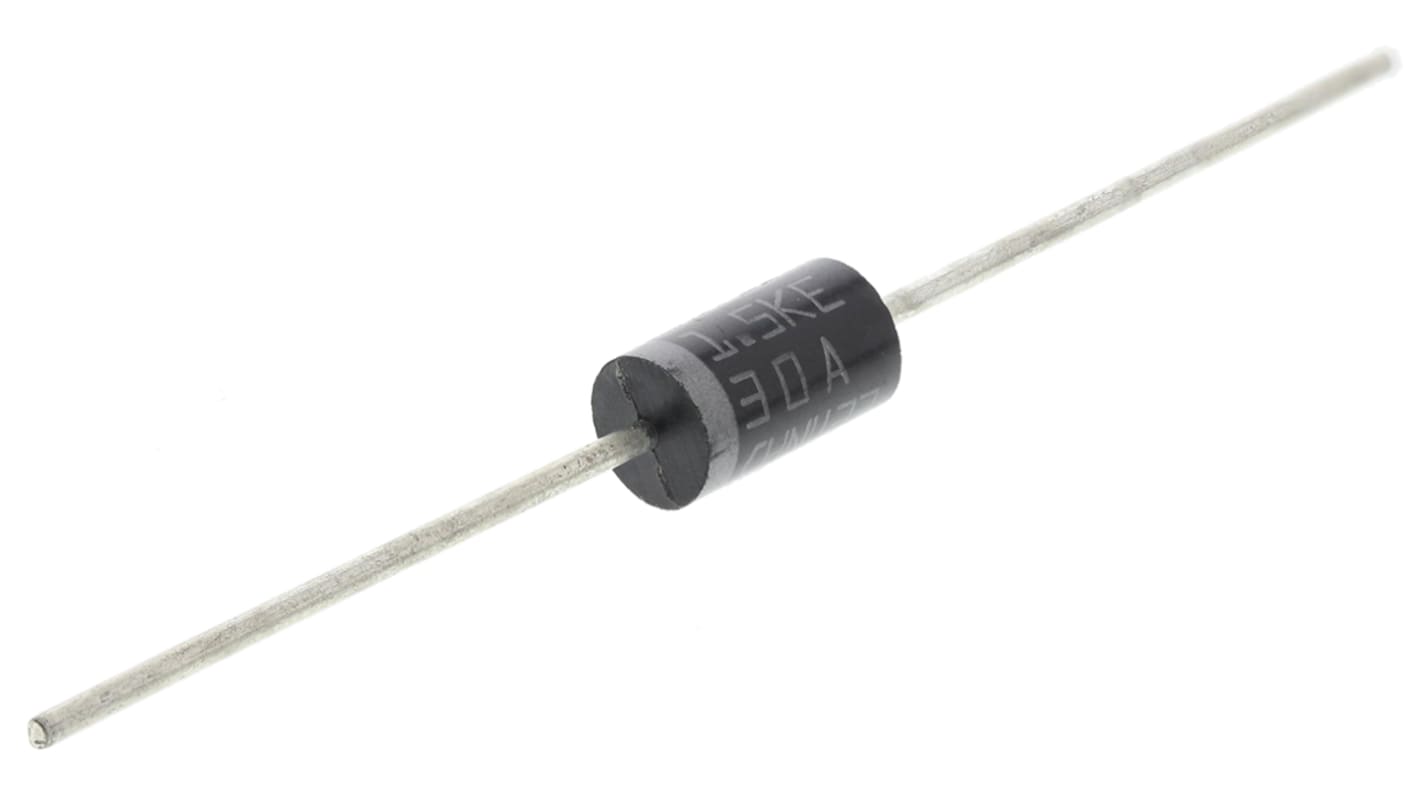

STMicroelectronics 1-Element Uni-Directional TVS Diode, 1.5 kW, 2-Pin DO-201

The image is for reference only, please refer to product details and specifications

View all TVS Diodes
Bulk discount available
View bulk pricing options

Subtotal 25 units (supplied as a tape)*

TWD485.00

(exc. GST)

TWD509.25

(inc. GST)

Add to Basket
Select or type quantity
In Stock
  • 1,490 unit(s) ready to ship from another location
  • Plus 1,200 unit(s) shipping from September 16, 2026
  • Plus 1,200 unit(s) shipping from March 17, 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
25 +TWD19.40

*price indicative

Packaging Options:
RS Stock No.:
486-4296P
Mfr. Part No.:
1.5KE30A
Manufacturer:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Diode Configuration

Single

Direction Type

Uni-Directional

Product Type

TVS Diode

Minimum Breakdown Voltage Vbr

28.5V

Mount Type

Through Hole

Package Type

DO-201

Maximum Reverse Stand-off Voltage Vwm

25.6V

Pin Count

2

Peak Pulse Power Dissipation Pppm

1.5kW

Clamping Voltage VC

53.5V

ESD Protection

No

Minimum Operating Temperature

-65°C

Maximum Peak Pulse Current Ippm

187A

Test Current It

1mA

Maximum Operating Temperature

175°C

Number of Elements per Chip

1

Series

1.5KE

Width

5.3mm

Standards/Approvals

No

Height

5.3mm

Length

9.5mm

Diameter

5.3mm

Maximum Reverse Leakage Current

1μA

Automotive Standard

No

Transil™ TVS Axial Unidirectional 1500W, STMicroelectronics


Transient Voltage Suppressors, STMicroelectronics
