Vishay SM8S28CAHM3/I 1-Element Bi-Directional TVS Diode, 5200 W, 2-Pin DO-218AB

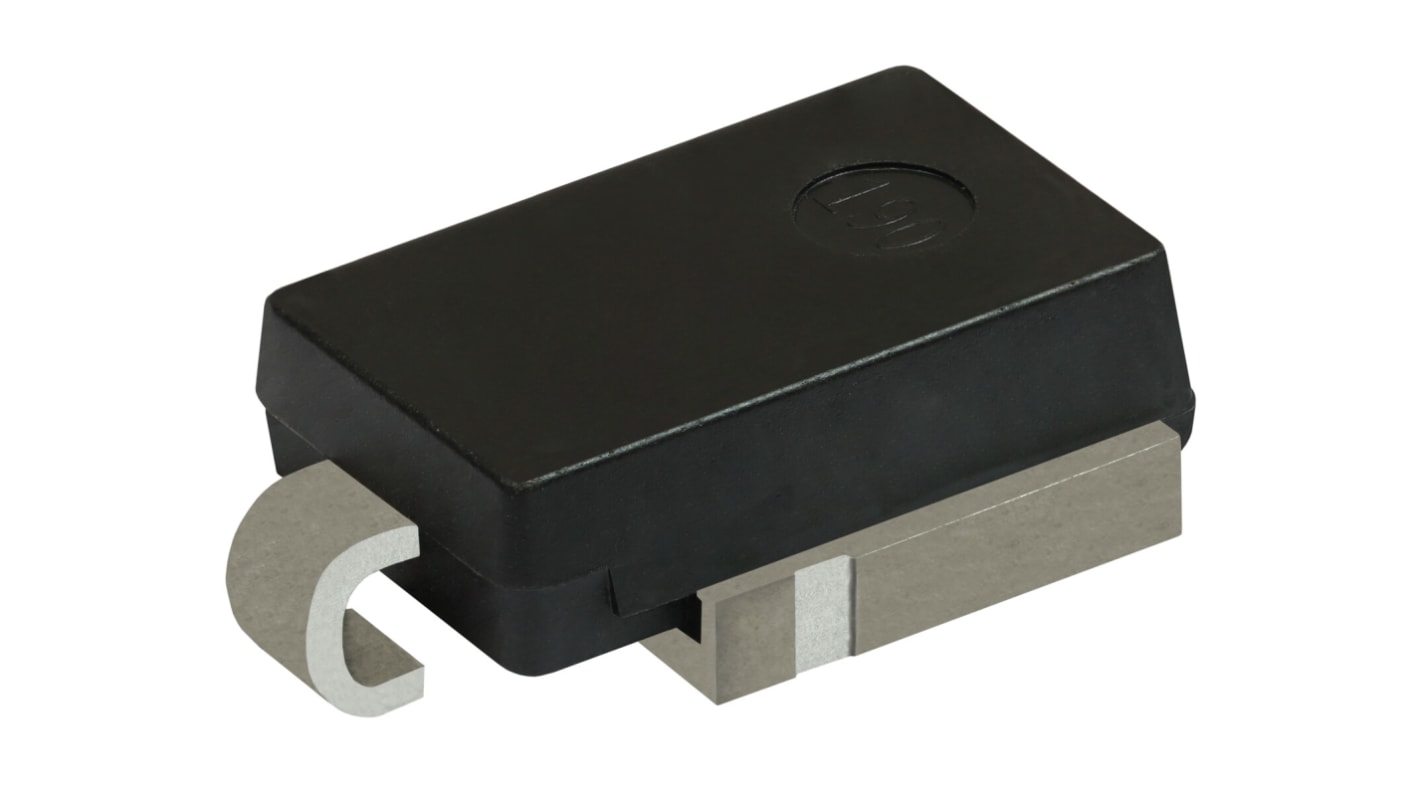

The image is for reference only, please refer to product details and specifications

View all TVS Diodes
Bulk discount available

Subtotal (1 reel of 750 units)*

TWD47,625.00

(exc. GST)

TWD50,010.00

(inc. GST)

Add to Basket
Select or type quantity
In Stock
  • 3,000 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
750 - 750TWD63.50TWD47,625.00
1500 - 3000TWD62.20TWD46,650.00
3750 +TWD61.00TWD45,750.00

*price indicative

RS Stock No.:
280-2104
Mfr. Part No.:
SM8S28CAHM3/I
Manufacturer:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Product Type

TVS Diode

Diode Configuration

Single

Direction Type

Bi-Directional

Minimum Breakdown Voltage Vbr

31.1V

Mount Type

Surface

Package Type

DO-218AB

Maximum Reverse Stand-off Voltage Vwm

28V

Pin Count

2

Peak Pulse Power Dissipation Pppm

5200W

ESD Protection

Yes

Clamping Voltage VC

45.4V

Maximum Peak Pulse Current Ippm

145A

Test Current It

5mA

Minimum Operating Temperature

-55°C

Maximum Operating Temperature

175°C

Number of Elements per Chip

1

Height

2.3mm

Standards/Approvals

UL 94 V-0 Flammability, Halogen-Free, RoHS, Meets MSL level 1 per J-STD-020, Industrial Grade

Series

SM8S10CA - SM8S85CA

Length

15.4mm

Width

9.3 mm

Maximum Reverse Leakage Current

10μA

Automotive Standard

AEC-Q101

The Vishay TVS Diode is a surface mount Transient Voltage Suppressors diode. They can operate at high temperatures, up to 175 degree Celsius, making them suitable for applications that require high reliability, such as automotive systems. These TVS diodes can protect against voltage transients in both directions. This TVS diode is useful in sensitive electronics protection against voltage transients induced by inductive load switching and lightning, especially for automotive load dump protection application.

Lead free

Halogen free

AEC Q101 qualified

Low leakage current

High surge capability

High temperature stability

RoHS compliant junction passivation
