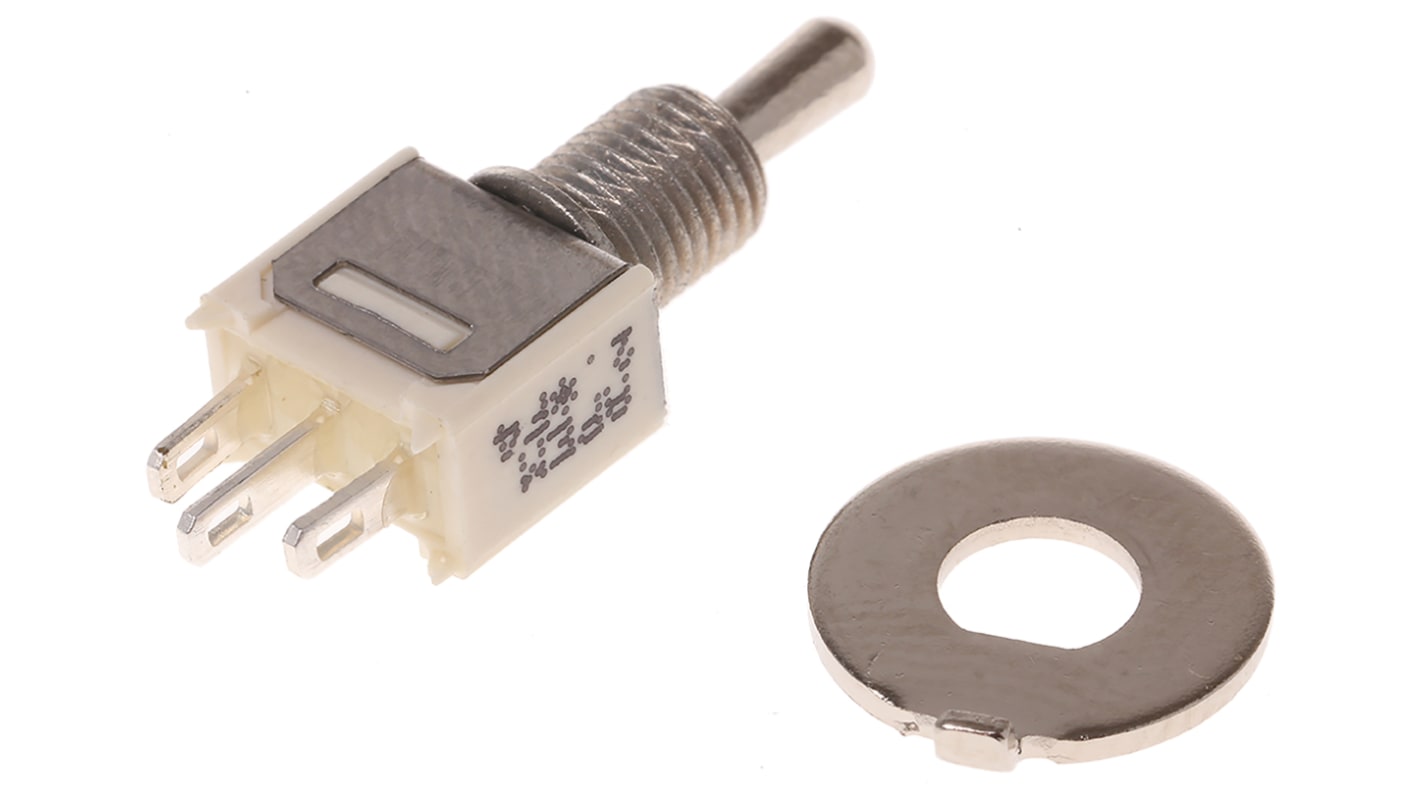

    APEM Toggle Switch, Panel Mount, On-Off-On, SPST, Solder Terminal

    APEM
    RS Stock No.:
    373-1729
    Mfr. Part No.:
    ZL39S0101
    Manufacturer:
    APEM
    View all Toggle Switches
    366 In stock for delivery within 6 working days
    Add to Basket
    units

    Added

    Price (VAT excluded) Each (In a Pack of 3)

    TWD194.70

    (exc. GST)

    TWD204.44

    (inc. GST)

    unitsPer unitPer Pack*
    3 - 72TWD194.70TWD584.10
    75 - 297TWD193.00TWD579.00
    300 - 747TWD192.00TWD576.00
    750 - 1497TWD191.00TWD573.00
    1500 +TWD189.70TWD569.10
    *price indicative
    RS Stock No.:
    373-1729
    Mfr. Part No.:
    ZL39S0101
    Manufacturer:
    APEM

    Product overview and Technical data sheets


    Legislation and Compliance

    COO (Country of Origin):
    FR

    Product Details

    Toggle Switches Ultra Miniature, Panel Mounting


    Suitable for applications where space is at a premium
    Epoxy sealed terminals prevent flux ingress
    Silver plated brass contacts
    Solder lug terminals
    Brass actuator and thermoplastic case

    Note

    Care should be taken when soldering not to overheat the switch assembly
    For biased switches '(on)' refers to momentary 'on' position

    Approvals

    7777

    Specifications

    AttributeValue
    Contact ConfigurationSingle Pole Single Throw (SPST)
    Switch OperationOn-Off-On
    Contact Current Rating500 mA @ 48 V
    Mounting TypePanel Mount
    Terminal TypeSolder
    Actuator Length5.5mm
    Actuator MaterialBrass
    Contact Resistance0.02Ω
    Contact MaterialSilver Plated Brass
    Operating Temperature Range-30 → +85°C
    Minimum Operating Temperature-30°C
    Maximum Operating Temperature+85°C
