    Altecnic Brass Thermostatic Washroom Valve, 22mm Compression

    RS Stock No.:
    777-0365
    Mfr. Part No.:
    CA-RS/MX5222
    Manufacturer:
    Altecnic
    Altecnic
    View all Thermostatic Mixing Valves
    3 In stock for delivery within 6 working days
    Add to Basket
    units

    Added

    Price (VAT excluded) Each

    Was TWD6,281.00

    You pay

    TWD5,653.00

    (exc. GST)

    TWD5,935.65

    (inc. GST)

    unitsPer unit
    1 +TWD5,653.00
    RS Stock No.:
    777-0365
    Mfr. Part No.:
    CA-RS/MX5222
    Manufacturer:
    Altecnic
    COO (Country of Origin):
    IT

    Legislation and Compliance

    COO (Country of Origin):
    IT

    Product Details

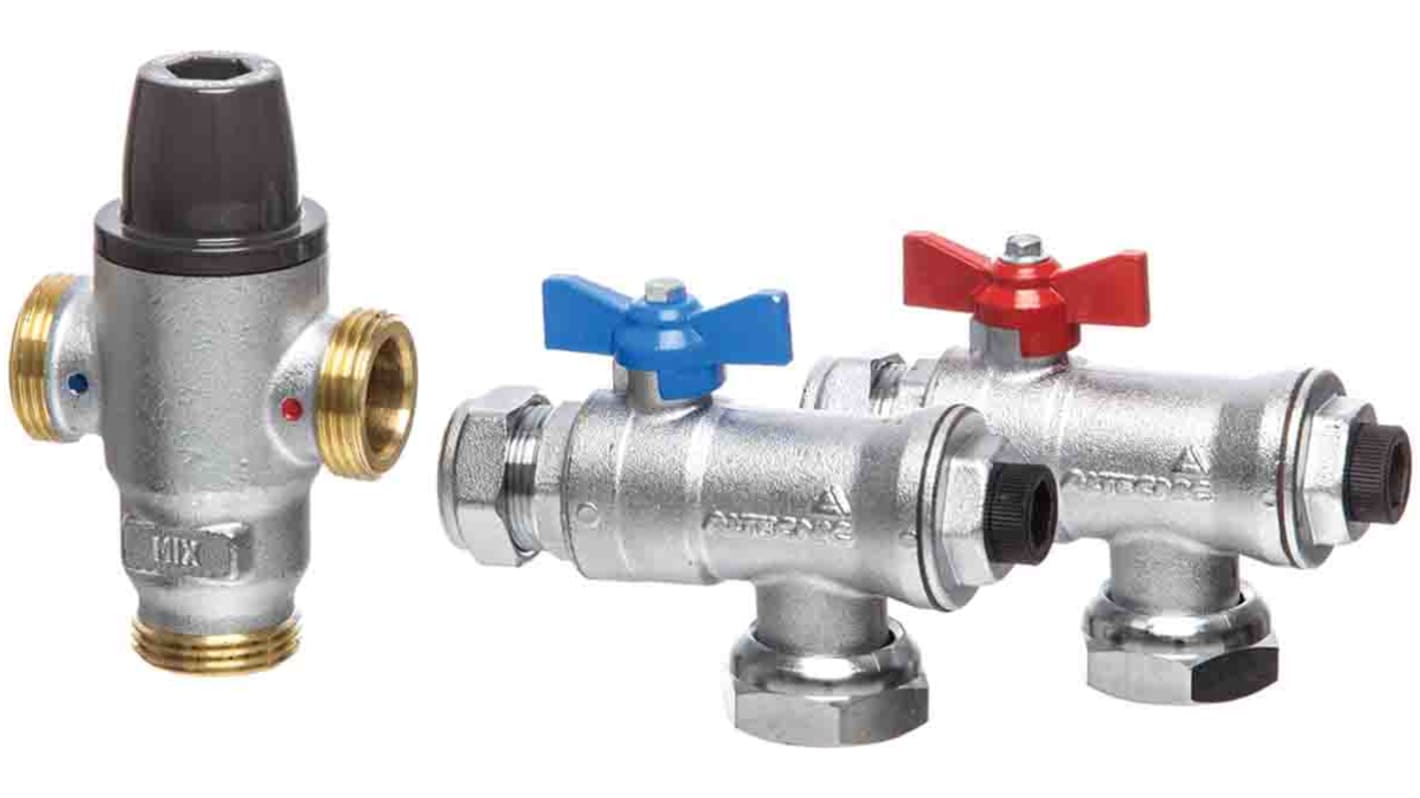

    Careflo Thermostatic Fail Safe Mixing Valve


    Thermostatic mixing valves are used to maintain the domestic hot water supplied to the user at a constant and safe temperature, when variations in the hot and cold water supply conditions and draw off flow rates occur.
    The mixcal careflo range has been designed for use in care homes and other premises required to provide a duty of care, especially to the young and elderly. The valve is designed primarily for single user outlets including wash basins, showers, baths and bidets but is also suitable for multiple outlet use.

    Temperature adjust range: 30 - 50°C
    Temperature control: ±2°C
    Maximum hot inlet temperature: 85°C
    Minimum temperature differential requirement for fail safe: 10°C
    Maximum inlet temperature 85°C
    Maximum working pressure 10 bar
    Temperature adjustment 30-65°C
    Body DRZ - chrome plated
    Cartridge and Shutter Brass
    Springs: Stainless steel
    Seals: EPDM

    Note

    The mixcal careflo fail safe valve has been designed to meeting the requirements of the latest National Health Service model engineering specification D08 and BS 7942:2000 for use in care homes


    Basin, Bath & Shower Valves


    A range of thermostatically controlled mixer valves all capable of operating with a hot/cold or cold/hot pressure ratio imbalance of up to 10:1,All units incorporate check valves to prevent cross-flow between supplies, and strainers to reduce damage due to contamination.,Connections are via the compression fixings using either 15 or 22mm pipe.

    Specifications

    AttributeValue
    Connection22 mm Compression
    Body MaterialBrass
    Maximum Working Pressure10 bar
    Connection Size22mm
    Maximum Set Temperature+50°C
    Minimum Set Temperature+30°C
    Thread Standard or Connection TypeCompression
    Temperature Setting Range+30 → +50 °C
