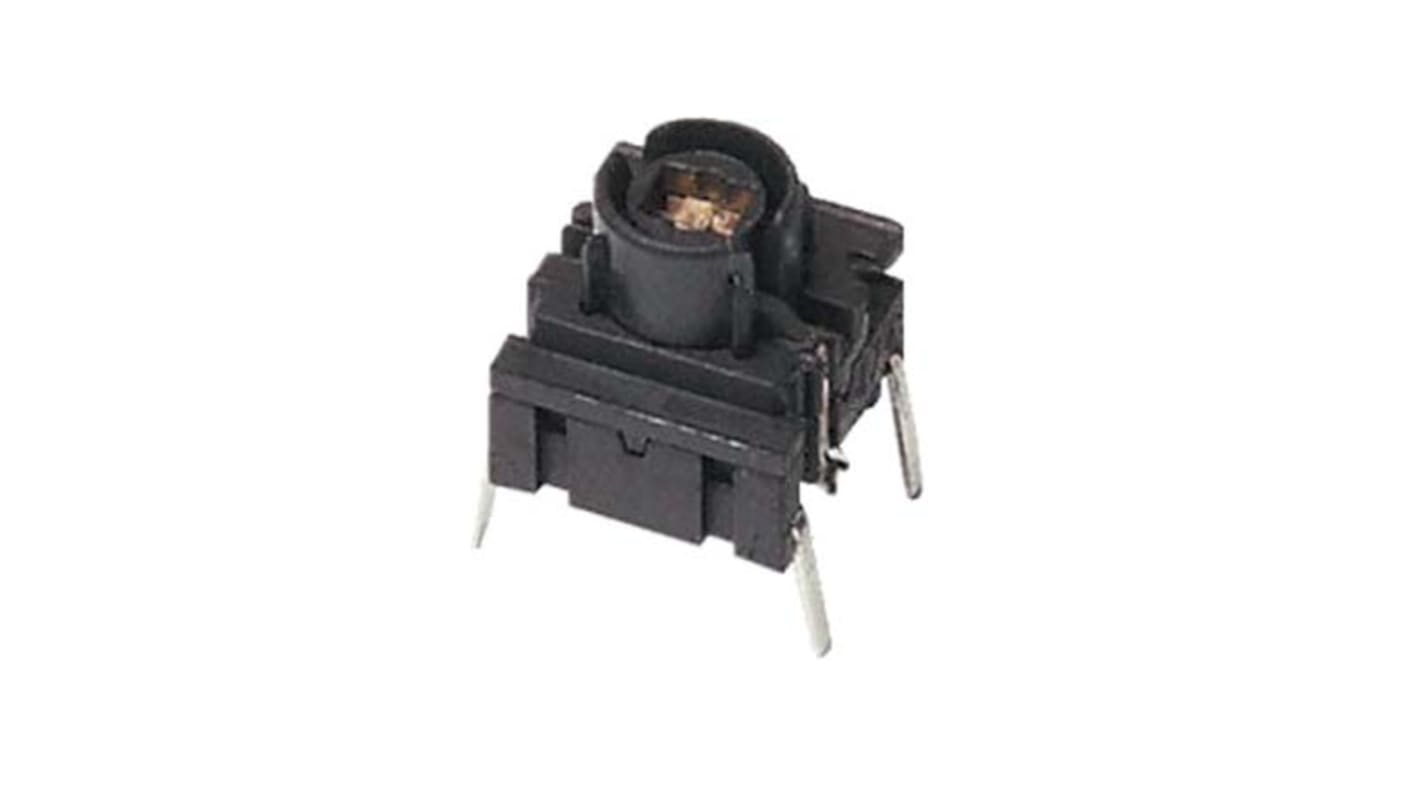

MEC IP67 Yellow Push Button Tactile Switch, SPST 50 mA @ 24 V dc
- RS Stock No.:
- 126-795
- Mfr. Part No.:
- 4FTH942
- Manufacturer:
- MEC
Subtotal (1 unit)**
TWD222.00
(exc. GST)
TWD233.10
(inc. GST)
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over TWD1,300.00 (ex VAT)
Units | Per unit |
|---|---|
| 1 - 24 | TWD222.00 |
| 25 - 99 | TWD215.00 |
| 100 - 249 | TWD210.00 |
| 250 - 499 | TWD204.00 |
| 500 + | TWD201.00 |
**price indicative
Alternatives
This product is not currently available. Here are our alternative recommendations.
Each
TWD237.00
(exc. GST)
TWD248.85
(inc. GST)
Each
TWD403.00
(exc. GST)
TWD423.15
(inc. GST)
Each
TWD166.00
(exc. GST)
TWD174.30
(inc. GST)
- RS Stock No.:
- 126-795
- Mfr. Part No.:
- 4FTH942
- Manufacturer:
- MEC
Select all | Attribute | Value |
|---|---|---|
| Brand | MEC | |
| Contact Configuration | SP-NO | |
| Terminal Type | Through Hole | |
| Switch Operation | Momentary | |
| Actuator Colour | Yellow | |
| Actuator Type | Push Button | |
| Length | 12.5mm | |
| Width | 10.3mm | |
| Dimensions | 12.5 x 10.3mm | |
| Illuminated | Yes | |
| Contact Current Rating | 50 mA @ 24 V dc | |
| IP Rating | IP67 | |
| Operating Force | 2.5 N | |
| Voltage Rating | 24V dc | |
| Height | 10.4mm | |
| Minimum Operating Temperature | -40°C | |
| Mechanical Life | 10000000Operations | |
| Contact Material | Gold, Silver | |
| Maximum Operating Temperature | +125°C | |
| Operating Temperature Range | -40 → +125°C | |
Select all | ||
|---|---|---|
Brand MEC | ||
Contact Configuration SP-NO | ||
Terminal Type Through Hole | ||
Switch Operation Momentary | ||
Actuator Colour Yellow | ||
Actuator Type Push Button | ||
Length 12.5mm | ||
Width 10.3mm | ||
Dimensions 12.5 x 10.3mm | ||
Illuminated Yes | ||
Contact Current Rating 50 mA @ 24 V dc | ||
IP Rating IP67 | ||
Operating Force 2.5 N | ||
Voltage Rating 24V dc | ||
Height 10.4mm | ||
Minimum Operating Temperature -40°C | ||
Mechanical Life 10000000Operations | ||
Contact Material Gold, Silver | ||
Maximum Operating Temperature +125°C | ||
Operating Temperature Range -40 → +125°C | ||
