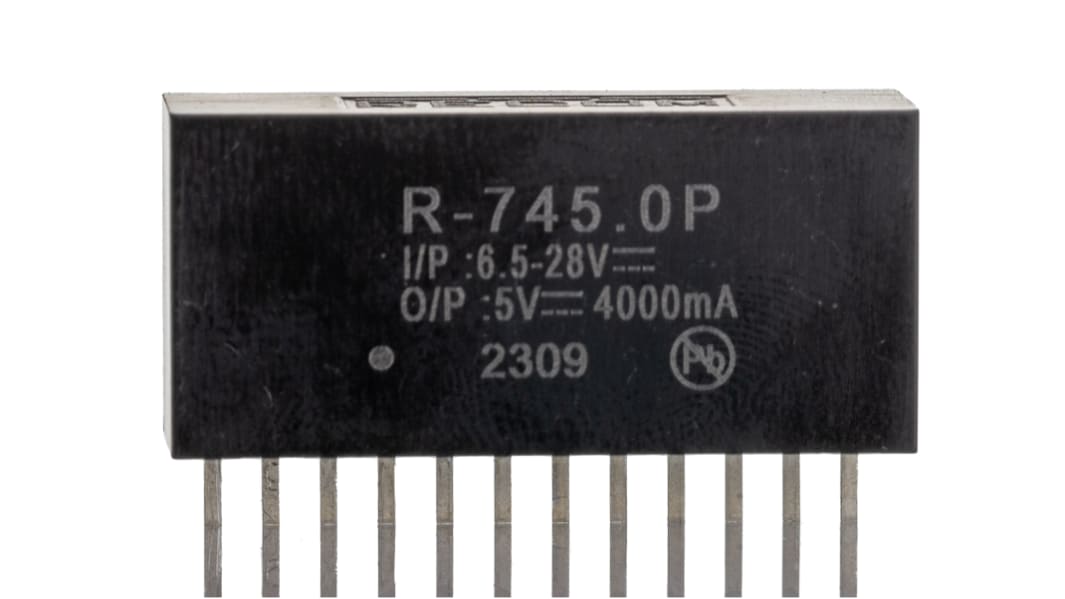

Recom Switching Regulator, Through Hole, 3 → 5.5V dc Output Voltage, 6.5 → 28V dc Input Voltage, 4A
- RS Stock No.:
- 828-9273P
- Mfr. Part No.:
- R-745.0P
- Manufacturer:
- Recom
1 / 2
Bulk discount available
Subtotal 4 units (supplied in a box)**
TWD3,796.00
(exc. GST)
TWD3,985.80
(inc. GST)
43 In stock for delivery within 6 working days*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over TWD1,300.00 (ex VAT)
Real time qty checker
Units | Per unit |
|---|---|
| 4 - 7 | TWD927.00 |
| 8 + | TWD913.00 |
**price indicative
- RS Stock No.:
- 828-9273P
- Mfr. Part No.:
- R-745.0P
- Manufacturer:
- Recom
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Output Voltage | 3 → 5.5V dc | |
| Output Current | 4A | |
| Input Voltage | 6.5 → 28V dc | |
| Mounting Type | Through Hole | |
| Number of Outputs | 1 | |
| Package | SIP | |
| Power Rating | 1.4W | |
| Efficiency | 97% | |
| Ripple And Noise | 70mV Pk-Pk | |
| Maximum Temperature | +85°C | |
| Minimum Temperature | -40°C | |
| Series | R-74 | |
| Line Regulation | 1% | |
| Weight | 9g | |
| Protection Features | Short Circuit Protection | |
| Output Voltage Adjustment Range | 3 → 5.5V dc | |
| Length | 32.2mm | |
| Input Power Range | 20W | |
| Power Signal Conversion Type | DC-DC | |
| MTBF | 749 x 10³ (+25 °C)h | |
| Maximum Input Current | 100mA | |
| Depth | 15mm | |
| Width | 9.1mm | |
| Load Regulation | 1% | |
Select all | ||
|---|---|---|
Brand Recom | ||
Output Voltage 3 → 5.5V dc | ||
Output Current 4A | ||
Input Voltage 6.5 → 28V dc | ||
Mounting Type Through Hole | ||
Number of Outputs 1 | ||
Package SIP | ||
Power Rating 1.4W | ||
Efficiency 97% | ||
Ripple And Noise 70mV Pk-Pk | ||
Maximum Temperature +85°C | ||
Minimum Temperature -40°C | ||
Series R-74 | ||
Line Regulation 1% | ||
Weight 9g | ||
Protection Features Short Circuit Protection | ||
Output Voltage Adjustment Range 3 → 5.5V dc | ||
Length 32.2mm | ||
Input Power Range 20W | ||
Power Signal Conversion Type DC-DC | ||
MTBF 749 x 10³ (+25 °C)h | ||
Maximum Input Current 100mA | ||
Depth 15mm | ||
Width 9.1mm | ||
Load Regulation 1% | ||
