Recom Switching Regulator, Through Hole, 5V dc Output Voltage, 1 A Output Current, 1 Outputs
- RS Stock No.:
- 672-7149
- Distrelec Article No.:
- 110-34-502
- Mfr. Part No.:
- R-78B5.0-1.0L
- Manufacturer:
- Recom

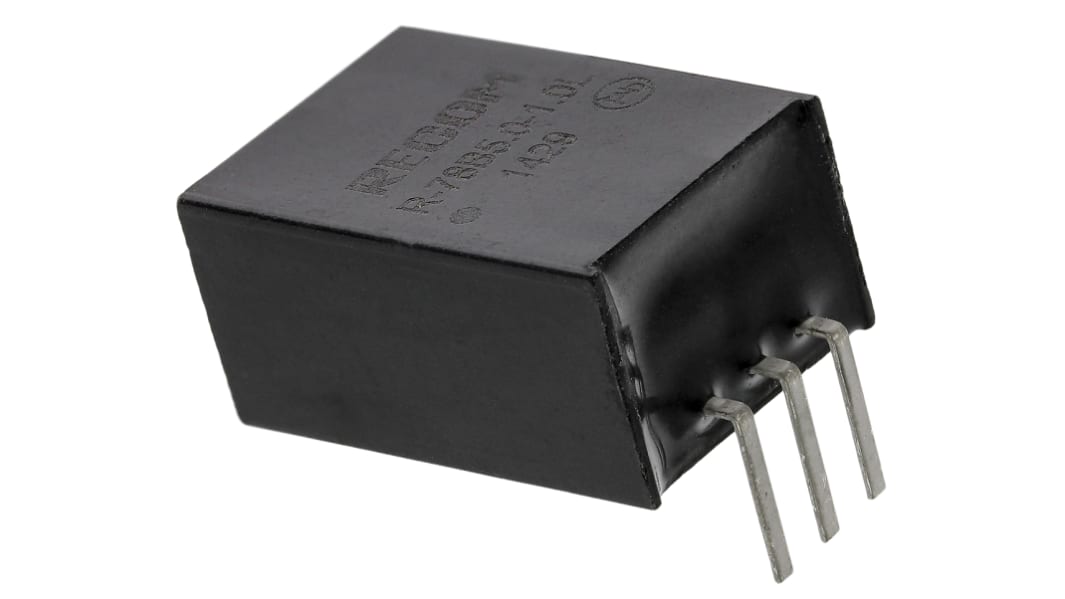

The image is for reference only, please refer to product details and specifications
Bulk discount available
Subtotal (1 unit)*
TWD371.00
(exc. GST)
TWD389.55
(inc. GST)
FREE delivery for orders over NT$1,300.00
In Stock
- 15 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 10 | TWD371.00 |
| 11 - 20 | TWD363.00 |
| 21 + | TWD357.00 |
*price indicative
- RS Stock No.:
- 672-7149
- Distrelec Article No.:
- 110-34-502
- Mfr. Part No.:
- R-78B5.0-1.0L
- Manufacturer:
- Recom
Specifications
Product overview and Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Output Voltage 1 | 5V dc | |
| Product Type | Switching Regulator | |
| Output Current | 1A | |
| Mount Type | Through Hole | |
| Number of Outputs | 1 | |
| Power | 5W | |
| Efficiency | 93% | |
| Ripple and Noise | 20mV Pk-Pk | |
| Maximum Operating Temperature | 85°C | |
| Minimum Operating Temperature | -40°C | |
| Series | R-78B-1.0 | |
| Line Regulation | ±0.4 % | |
| Package Type | SIP | |
| Length | 11.5mm | |
| Depth | 8.5mm | |
| Width | 8.5mm | |
| Standards/Approvals | REACH | |
| Weight | 4g | |
| Maximum Input Voltage | 32V dc | |
| Minimum Input Voltage | 6.5V | |
| Load Regulation | ±0.6 % | |
| MTBF | 6584000h | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Output Voltage 1 5V dc | ||
Product Type Switching Regulator | ||
Output Current 1A | ||
Mount Type Through Hole | ||
Number of Outputs 1 | ||
Power 5W | ||
Efficiency 93% | ||
Ripple and Noise 20mV Pk-Pk | ||
Maximum Operating Temperature 85°C | ||
Minimum Operating Temperature -40°C | ||
Series R-78B-1.0 | ||
Line Regulation ±0.4 % | ||
Package Type SIP | ||
Length 11.5mm | ||
Depth 8.5mm | ||
Width 8.5mm | ||
Standards/Approvals REACH | ||
Weight 4g | ||
Maximum Input Voltage 32V dc | ||
Minimum Input Voltage 6.5V | ||
Load Regulation ±0.6 % | ||
MTBF 6584000h | ||
- COO (Country of Origin):
- TW
RECOM Switching Regulator, 6.5 to 32V DC Input Voltage Range, 5V DC Output Voltage - R-78B-1.0 Series - R-78B5.0-1.0L
Looking for a reliable energy converter for your PCB? Choose this switching regulator from RECOM. It transforms input voltages between 6.5 and 32V DC to a steady output voltage of 5V DC, so it's a good choice for use in low-power applications. The Compact dimensions of 11.5 (L) x 8.5 (W) x 17.5mm (H) make it suitable for installation in busy setups. It features continuous short-circuit protection with automatic recovery to protect your system against damage and reduce downtime in the event of a fault. Thanks to a mean time between failures of 6,584,000 hours at +25°C, this is a long-lasting choice.
Features & Benefits
• Wide operating temperature range between -40°C and +85°C for use in demanding conditions
• Non-conductive plastic case helps to reduce the risk of electric shocks
• Pins have a 90° orientation for side mounting, to suit installation in tight spaces
Applications
• Consumer devices
• Battery-powered systems
• Research and development labs
Do I need to use a heat sink with this device?
No. Thanks to the component's high efficiency of 88 to 93%, it wastes little energy as heat, so there's no need to use a heat sink.
