Recom Switching Regulator, Through Hole, 6.5V dc Output Voltage, 32V dc Input Voltage, 1A Output Current, 1 Outputs
- RS Stock No.:
- 672-7133P
- Mfr. Part No.:
- R-78B6.5-1.0
- Manufacturer:
- Recom

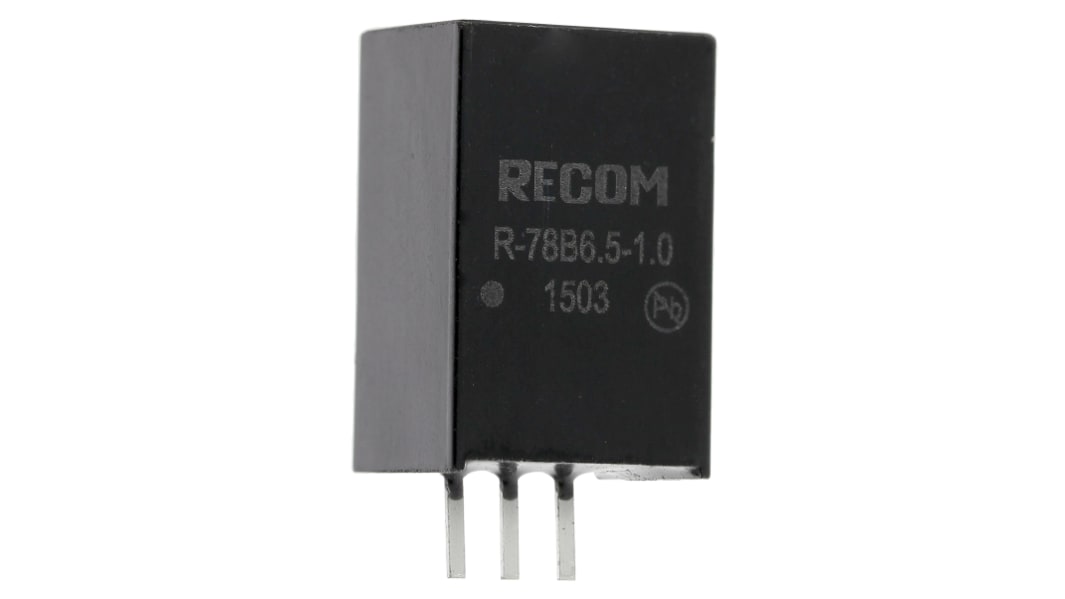

The image is for reference only, please refer to product details and specifications
Subtotal 11 units (supplied in a tube)**
TWD3,432.00
(exc. GST)
TWD3,603.60
(inc. GST)
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over TWD1,300.00 (ex VAT)
Units | Per unit |
|---|---|
| 11 - 20 | TWD306.00 |
| 21 + | TWD300.00 |
**price indicative
- RS Stock No.:
- 672-7133P
- Mfr. Part No.:
- R-78B6.5-1.0
- Manufacturer:
- Recom
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Output Voltage | 6.5V dc | |
| Output Current | 1A | |
| Input Voltage | 32V dc | |
| Mounting Type | Through Hole | |
| Number of Outputs | 1 | |
| Package | SIP | |
| Power Rating | 6.5W | |
| Efficiency | 94% | |
| Ripple And Noise | 15mV Pk-Pk | |
| Maximum Temperature | +85°C | |
| Minimum Temperature | -40°C | |
| Series | R-78B-1.0 | |
| Line Regulation | 0.2% | |
| Depth | 17.5mm | |
| Weight | 4g | |
| MTBF | 6584000h | |
| Power Signal Conversion Type | DC-DC | |
| Width | 8.5mm | |
| Protection Features | Short Circuit Protection | |
| Application | DC-DC Converter, Filtering, Step Down | |
| Length | 11.5mm | |
| Standards Met | RoHS | |
| Switching Frequency Range | 330KHz | |
| Load Regulation | 0.4% | |
