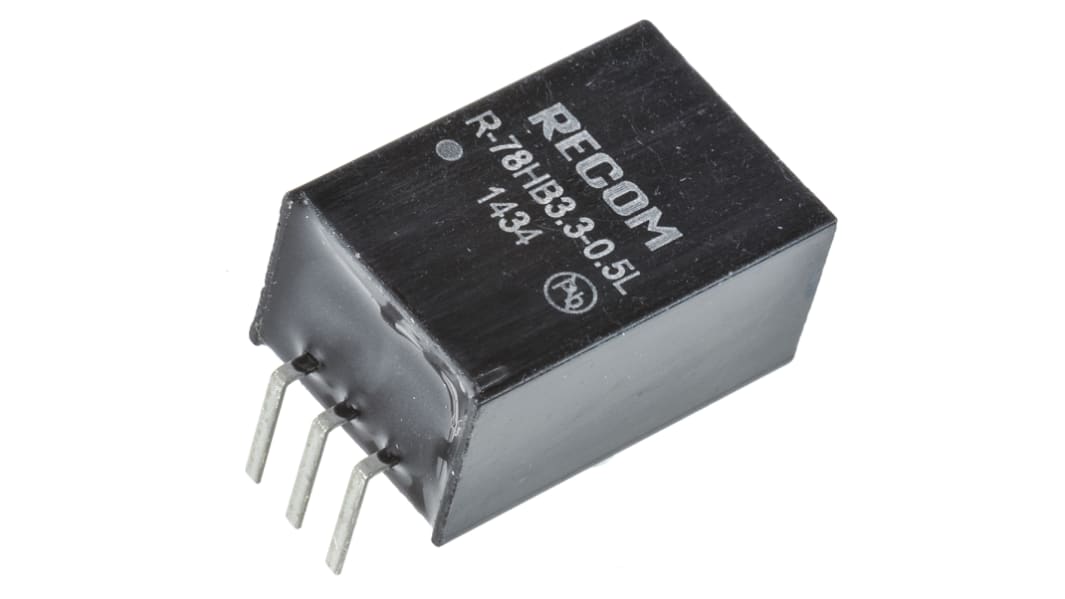

Recom Switching Regulator, Through Hole, 3.3V dc Output Voltage, 9 → 72V dc Input Voltage, 500mA Output Current,
- RS Stock No.:
- 672-7091
- Mfr. Part No.:
- R-78HB3.3-0.5L
- Manufacturer:
- Recom
The image is for reference only, please refer to product details and specifications
Subtotal (1 unit)**
TWD497.00
(exc. GST)
TWD521.85
(inc. GST)
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over TWD1,300.00 (ex VAT)
Units | Per unit |
|---|---|
| 1 - 10 | TWD497.00 |
| 11 - 20 | TWD482.00 |
| 21 + | TWD473.00 |
**price indicative
- RS Stock No.:
- 672-7091
- Mfr. Part No.:
- R-78HB3.3-0.5L
- Manufacturer:
- Recom
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Output Voltage | 3.3V dc | |
| Output Current | 500mA | |
| Input Voltage | 9 → 72V dc | |
| Mounting Type | Through Hole | |
| Number of Outputs | 1 | |
| Package | SIP | |
| Power Rating | 1.65W | |
| Efficiency | 76% | |
| Ripple And Noise | 20mV Pk-Pk | |
| Maximum Temperature | +85°C | |
| Minimum Temperature | -40°C | |
| Series | R-78HB-0.5(L) | |
| Line Regulation | ±1% | |
| Width | 17.5mm | |
| Power Signal Conversion Type | DC-DC | |
| Protection Features | Short Circuit Protection | |
| Application | Automation, Industrial | |
| MTBF | 7395 x 10^3h | |
| Load Regulation | ±0.6% | |
| Depth | 8.5mm | |
| Standards Met | EN60950 | |
| Maximum Input Current | 1mA | |
| Switching Frequency Range | 120kHz | |
| Weight | 4g | |
| Length | 11.5mm | |
Select all | ||
|---|---|---|
Brand Recom | ||
Output Voltage 3.3V dc | ||
Output Current 500mA | ||
Input Voltage 9 → 72V dc | ||
Mounting Type Through Hole | ||
Number of Outputs 1 | ||
Package SIP | ||
Power Rating 1.65W | ||
Efficiency 76% | ||
Ripple And Noise 20mV Pk-Pk | ||
Maximum Temperature +85°C | ||
Minimum Temperature -40°C | ||
Series R-78HB-0.5(L) | ||
Line Regulation ±1% | ||
Width 17.5mm | ||
Power Signal Conversion Type DC-DC | ||
Protection Features Short Circuit Protection | ||
Application Automation, Industrial | ||
MTBF 7395 x 10^3h | ||
Load Regulation ±0.6% | ||
Depth 8.5mm | ||
Standards Met EN60950 | ||
Maximum Input Current 1mA | ||
Switching Frequency Range 120kHz | ||
Weight 4g | ||
Length 11.5mm | ||
