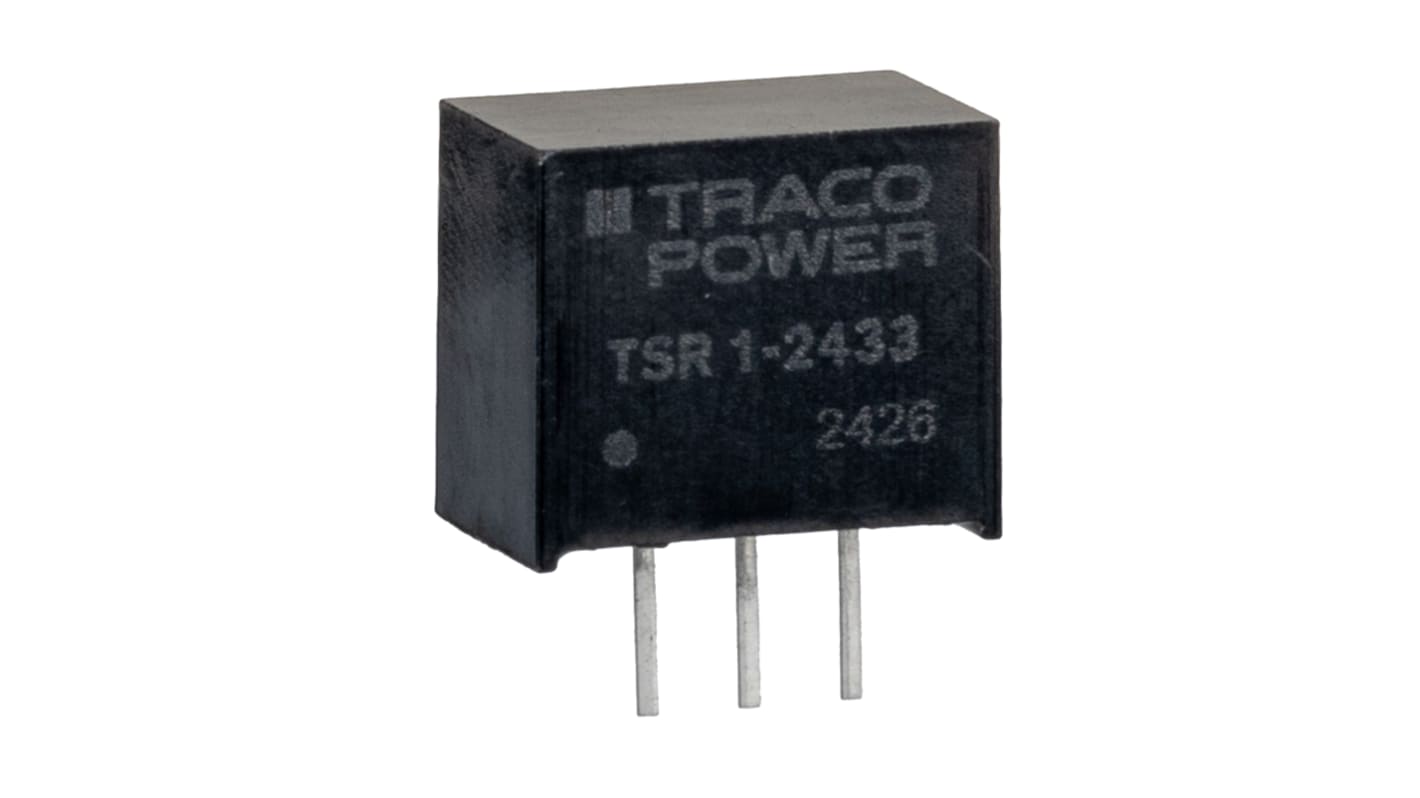

TRACO POWER Switching Regulator, Through Hole, 3.3V dc Output Voltage, 1 A Output Current
- RS Stock No.:
- 666-4360
- Distrelec Article No.:
- 169-53-483
- Mfr. Part No.:
- TSR 1-2433
- Manufacturer:
- TRACOPOWER
The image is for reference only, please refer to product details and specifications
Get a bulk buy discount
Add 3 more to save 1%
View bulk pricing optionsSubtotal (1 unit)*
TWD167.00
(exc. GST)
TWD175.35
(inc. GST)
FREE delivery for orders over NT$1,300.00
In Stock
- Plus 290 unit(s) shipping from November 09, 2026
- Plus 81 unit(s) shipping from November 09, 2026
- Plus 107 unit(s) shipping from November 16, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Saving |
|---|---|---|
| 1 - 2 | TWD167.00 | - |
| 3 - 14 | TWD164.00 | 1% |
| 15 + | TWD161.00 | 3% |
*price indicative
- RS Stock No.:
- 666-4360
- Distrelec Article No.:
- 169-53-483
- Mfr. Part No.:
- TSR 1-2433
- Manufacturer:
- TRACOPOWER
Specifications
Product overview and Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Product Type | Switching Regulator | |
| Output Voltage 1 | 3.3V dc | |
| Output Current | 1A | |
| Mount Type | Through Hole | |
| Number of Outputs | 1 | |
| Power | 3.3W | |
| Efficiency | 90% | |
| Ripple and Noise | 50mV Pk-Pk | |
| Maximum Operating Temperature | 85°C | |
| Minimum Operating Temperature | -40°C | |
| Series | TSR 1 | |
| Line Regulation | ±0.2 % | |
| Package Type | SIP-3 | |
| Depth | 10.2mm | |
| Length | 11.7mm | |
| Width | 10.2mm | |
| Standards/Approvals | RoHS | |
| Weight | 1.9g | |
| Maximum Input Voltage | 36V dc | |
| Minimum Input Voltage | 4.75V | |
| MTBF | 5350000h | |
| Load Regulation | ±0.4 % | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Product Type Switching Regulator | ||
Output Voltage 1 3.3V dc | ||
Output Current 1A | ||
Mount Type Through Hole | ||
Number of Outputs 1 | ||
Power 3.3W | ||
Efficiency 90% | ||
Ripple and Noise 50mV Pk-Pk | ||
Maximum Operating Temperature 85°C | ||
Minimum Operating Temperature -40°C | ||
Series TSR 1 | ||
Line Regulation ±0.2 % | ||
Package Type SIP-3 | ||
Depth 10.2mm | ||
Length 11.7mm | ||
Width 10.2mm | ||
Standards/Approvals RoHS | ||
Weight 1.9g | ||
Maximum Input Voltage 36V dc | ||
Minimum Input Voltage 4.75V | ||
MTBF 5350000h | ||
Load Regulation ±0.4 % | ||
- COO (Country of Origin):
- TW
Traco Power Switching Regulator, SIP3 Package, 91% Efficiency - TSR 1 Series - TSR 1-2433
Need to bring your system's input voltage down a notch? Put this switching regulator from Traco Power in control. It takes 4.75 to 36V DC inputs and converts them to the stable 3.3V DC output needed by applications such as IoT devices and industrial automation systems. Electrical glitches are no problem, as the device comes with short-circuit protection and automatically reboots after a fault to cut downtime. The regulator operates at 91% efficiency so heat waste is minimised and there's no need to fit a heat sink.
• Ripple voltage of 50mV minimises disruption from electrical noise
• Voltage set accuracy of ±2% ensures a consistent power supply
• Measures just 11.7 (L) x 7.5 (W) x 10.1mm (D), so takes up little enclosure space
• Handles operating temperatures between -40°C and +85°C, for safe industrial use
Applications
• Radio communications
• Domestic appliances
• Electronics manufacturing
How do I mount this switching regulator?
This product is compatible with through-hole mounting, so you slot it into pre-drilled holes on your PCB and solder it in place to achieve a secure connection.
