Recom Switching Regulator, Through Hole, 9V dc Output Voltage 28V dc, 500 mA Output Current, 1 Outputs
- RS Stock No.:
- 166-8977
- Mfr. Part No.:
- R-78E9.0-0.5
- Manufacturer:
- Recom

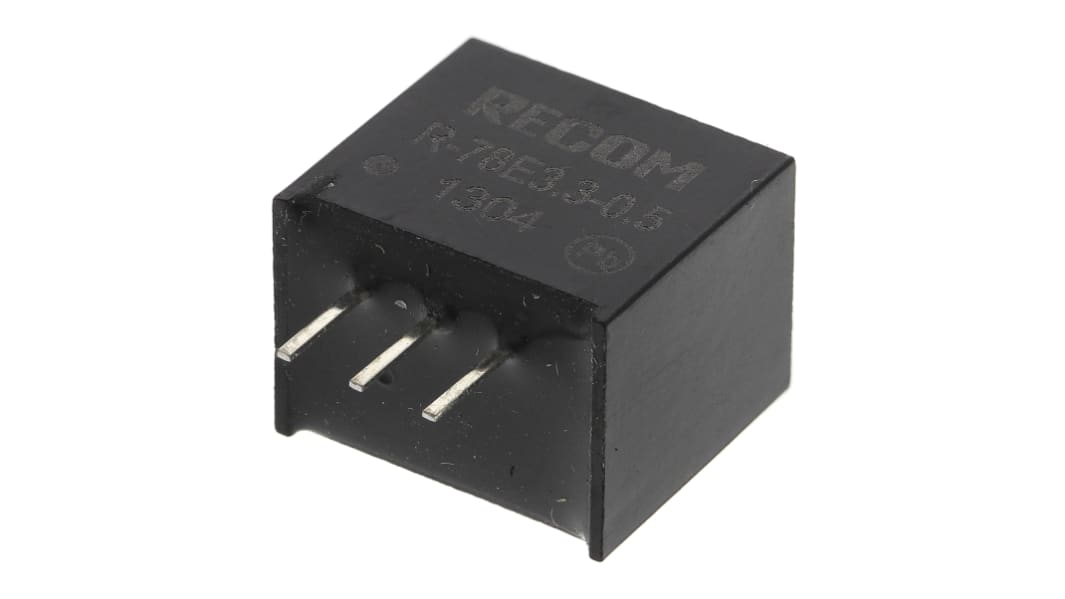

The image is for reference only, please refer to product details and specifications
Bulk discount available
Subtotal (1 tube of 42 units)*
TWD4,682.00
(exc. GST)
TWD4,916.10
(inc. GST)
FREE delivery for orders over NT$1,300.00
Temporarily out of stock
- Shipping from October 08, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 1 | TWD4,682.00 | TWD111.476 |
| 2 - 3 | TWD4,541.00 | TWD108.119 |
| 4 + | TWD4,405.00 | TWD104.881 |
*price indicative
- RS Stock No.:
- 166-8977
- Mfr. Part No.:
- R-78E9.0-0.5
- Manufacturer:
- Recom
Specifications
Product overview and Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Product Type | Switching Regulator | |
| Output Voltage 1 | 9V dc | |
| Output Current | 500mA | |
| Mount Type | Through Hole | |
| Number of Outputs | 1 | |
| Power | 4.5W | |
| Efficiency | 94% | |
| Ripple and Noise | 50mV Pk-Pk | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Series | R-78E-0.5 | |
| Package Type | SIP | |
| Line Regulation | ±0.5 % | |
| Length | 11.6mm | |
| Depth | 10.4mm | |
| Standards/Approvals | REACH | |
| Weight | 2g | |
| Width | 8.5mm | |
| Maximum Input Voltage | 28V dc | |
| MTBF | 2182000h | |
| Minimum Input Voltage | 12V | |
| Load Regulation | ±1 % | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Product Type Switching Regulator | ||
Output Voltage 1 9V dc | ||
Output Current 500mA | ||
Mount Type Through Hole | ||
Number of Outputs 1 | ||
Power 4.5W | ||
Efficiency 94% | ||
Ripple and Noise 50mV Pk-Pk | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Series R-78E-0.5 | ||
Package Type SIP | ||
Line Regulation ±0.5 % | ||
Length 11.6mm | ||
Depth 10.4mm | ||
Standards/Approvals REACH | ||
Weight 2g | ||
Width 8.5mm | ||
Maximum Input Voltage 28V dc | ||
MTBF 2182000h | ||
Minimum Input Voltage 12V | ||
Load Regulation ±1 % | ||
- COO (Country of Origin):
- TW
RECOM Switching Regulator, 9V DC Output Voltage, 12 to 28V DC Input Voltage - R-78E Series - R-78E9.0-0.5
This switching regulator from RECOM adapts supply voltages to suit your PCB-mounted devices. Its step-down switching function works with input voltages between 12 and 28V DC, so it's compatible with many power sources. The device's precise line regulation of ±0.5% means it provides a stable 9V DC output voltage, so you GET a reliably smoothed electrical supply. For system safety, this regulator comes with integrated short-circuit protection. This feature means it resets itself automatically after electrical faults, so you can restart your machines quickly.
Features & Benefits
• Compact dimensions of 11.6 (W) x 10.4 (H) x 8.5mm (D) for a small footprint on your PCB
• Simple through-hole mounting makes installation easy
• Low maximum ripple voltage of 50mV reduces electrical noise
• Works at temperatures between -40°C and +85°C to suit demanding industrial conditions
Applications
• Video cameras
• Television displays
• Radio communication systems
• Automotive industry
Do I need to install a heatsink with this switching regulator?
No, you don't need a heatsink to use this switching regulator safely. Thanks to its maximum efficiency rate of 94%, it doesn't generate enough heat to call for an external sink.
