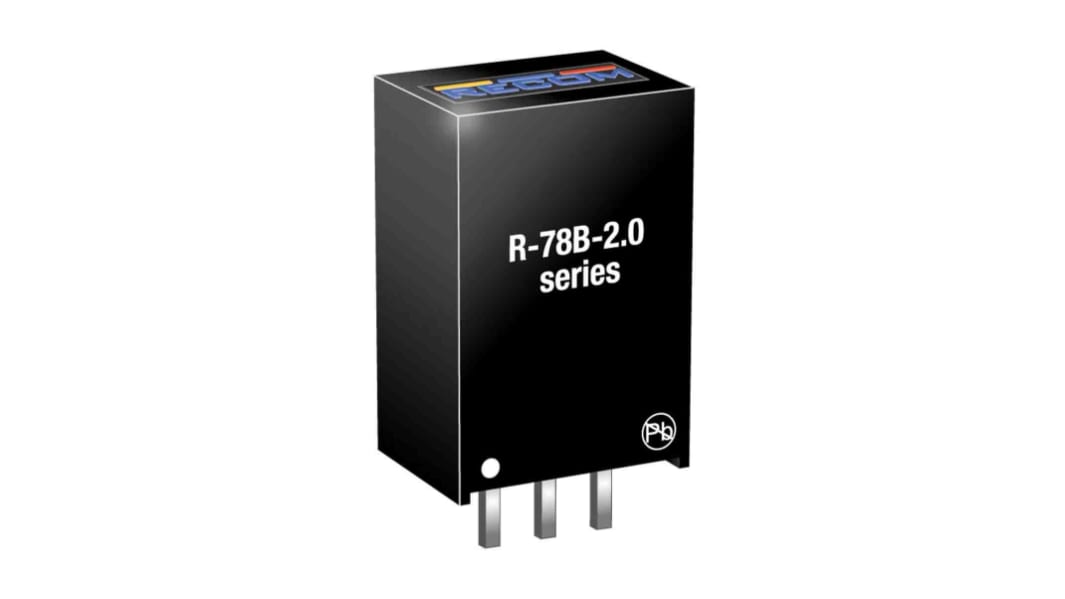

Recom Switching Regulator, Through Hole, 5V dc Output Voltage, 6.5 → 32V dc Input Voltage, 2A Output Current, 1
- RS Stock No.:
- 139-2959P
- Mfr. Part No.:
- R-78B5.0-2.0
- Manufacturer:
- Recom
1 / 1
Bulk discount available
Subtotal 11 units (supplied in a tube)**
TWD4,048.00
(exc. GST)
TWD4,250.40
(inc. GST)
14 In stock for delivery within 6 working days*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over TWD1,300.00 (ex VAT)
Real time qty checker
Units | Per unit |
|---|---|
| 11 - 20 | TWD357.00 |
| 21 + | TWD350.00 |
**price indicative
- RS Stock No.:
- 139-2959P
- Mfr. Part No.:
- R-78B5.0-2.0
- Manufacturer:
- Recom
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Output Voltage | 5V dc | |
| Output Current | 2A | |
| Input Voltage | 6.5 → 32V dc | |
| Mounting Type | Through Hole | |
| Number of Outputs | 1 | |
| Package | SIP 3 | |
| Power Rating | 10W | |
| Efficiency | 94% | |
| Ripple And Noise | 75mV Pk-Pk | |
| Maximum Temperature | +70°C | |
| Minimum Temperature | -40°C | |
| Series | R-78B-2.0 | |
| Line Regulation | ±0.5% | |
| Length | 11.5mm | |
| MTBF | 6349000h | |
| Power Signal Conversion Type | DC-DC | |
| Weight | 4g | |
| Protection Features | Short Circuit Protection | |
| Width | 8.5mm | |
| Load Regulation | ±1% | |
| Switching Frequency Range | 460kHz | |
| Maximum Input Current | 50mA | |
| Depth | 17.5mm | |
| Standards Met | CB Report, EN 55022, IEC/EN 62368-1 | |
