TE Connectivity, 3613C, 1812 (4532M) Shielded Wire-wound SMD Inductor with a Ferrite Core, 100 μH ±10% Wire-Wound 110mA
- RS Stock No.:
- 812-0708
- Mfr. Part No.:
- 3613C101K
- Manufacturer:
- TE Connectivity

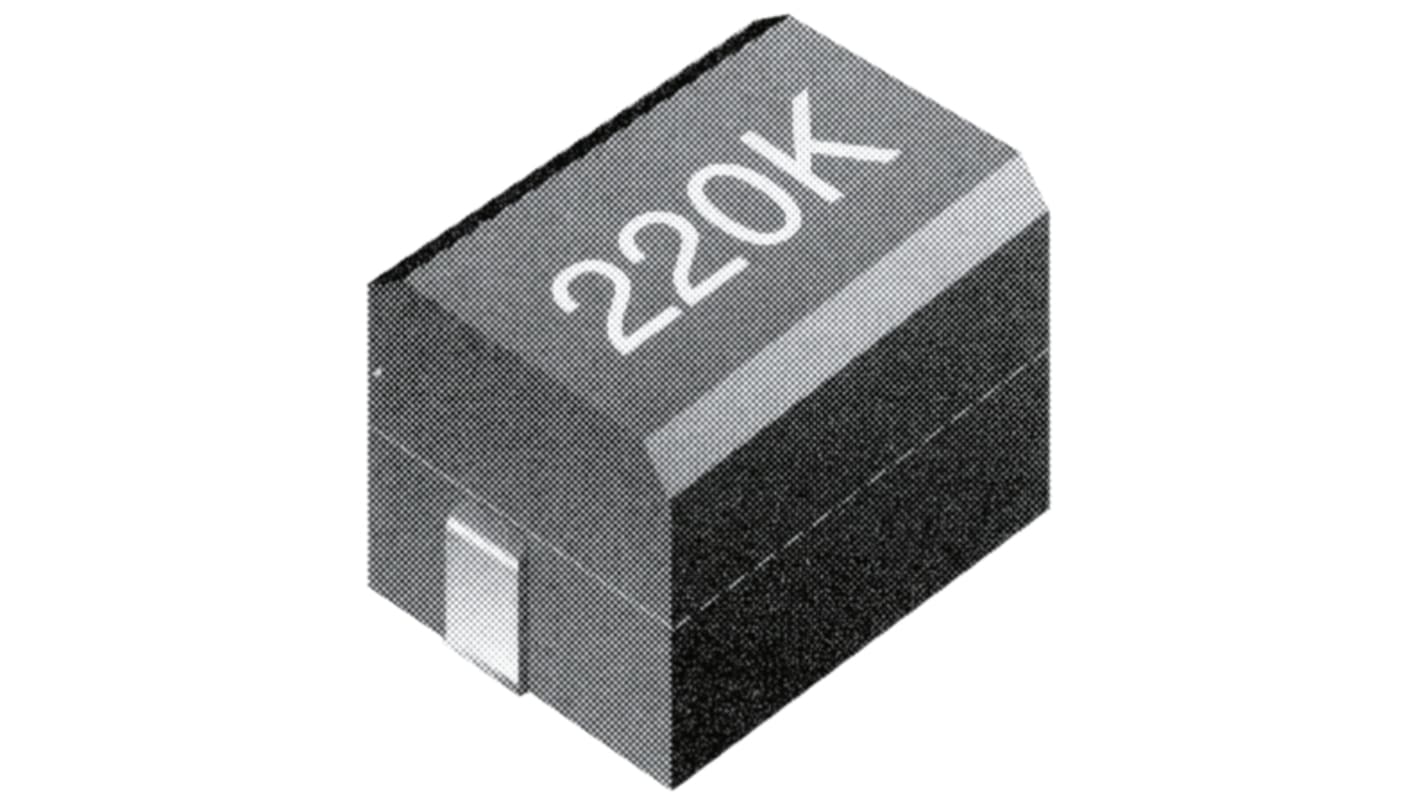

The image is for reference only, please refer to product details and specifications
View all Surface Mount Inductors
1020 In stock for delivery within 6 working days
Price (VAT excluded) Each (In a Bag of 10)
TWD17.30
(exc. GST)
TWD18.16
(inc. GST)
| units | Per unit | Per Bag* |
| 10 - 120 | TWD17.30 | TWD173.00 |
| 130 - 240 | TWD16.90 | TWD169.00 |
| 250 + | TWD16.60 | TWD166.00 |
| *price indicative | ||
Packaging Options:
- RS Stock No.:
- 812-0708
- Mfr. Part No.:
- 3613C101K
- Manufacturer:
- TE Connectivity
- COO (Country of Origin):
- TW
Product overview and Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Tyco 1812 3613C Series Wire Wound Inductors
3613C Series Wire Wound Inductors are ferrite based and highly reliable
Small and versatile size- 3.2 x 4.5 mm
Temperature range -30°C to +100°C
Developed for automatic mounting applications
Small and versatile size- 3.2 x 4.5 mm
Temperature range -30°C to +100°C
Developed for automatic mounting applications
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
SMT 1812 Inductors (Chokes)
Specifications
| Attribute | Value |
| Inductance | 100 μH |
| Maximum DC Current | 110mA |
| Package/Case | 1812 (4532M) |
| Length | 4.5mm |
| Depth | 3.2mm |
| Height | 3.2mm |
| Dimensions | 4.5 x 3.2 x 3.2mm |
| Shielded | Yes |
| Tolerance | ±10% |
| Maximum DC Resistance | 8Ω |
| Series | 3613C |
| Core Material | Ferrite |
| Maximum Self Resonant Frequency | 8MHz |
| Maximum Operating Temperature | +100°C |
| Minimum Quality Factor | 40 |
| Inductor Construction | Wire-Wound |
| Moulded | Yes |
| Minimum Operating Temperature | -30°C |
