Buschjost Solenoid Valve 8240300.9101.02400, 2 port(s) , NC, 24 V dc, 3/4in
- RS Stock No.:
- 529-5275
- Mfr. Part No.:
- 8240300.9101.02400
- Manufacturer:
- Buschjost

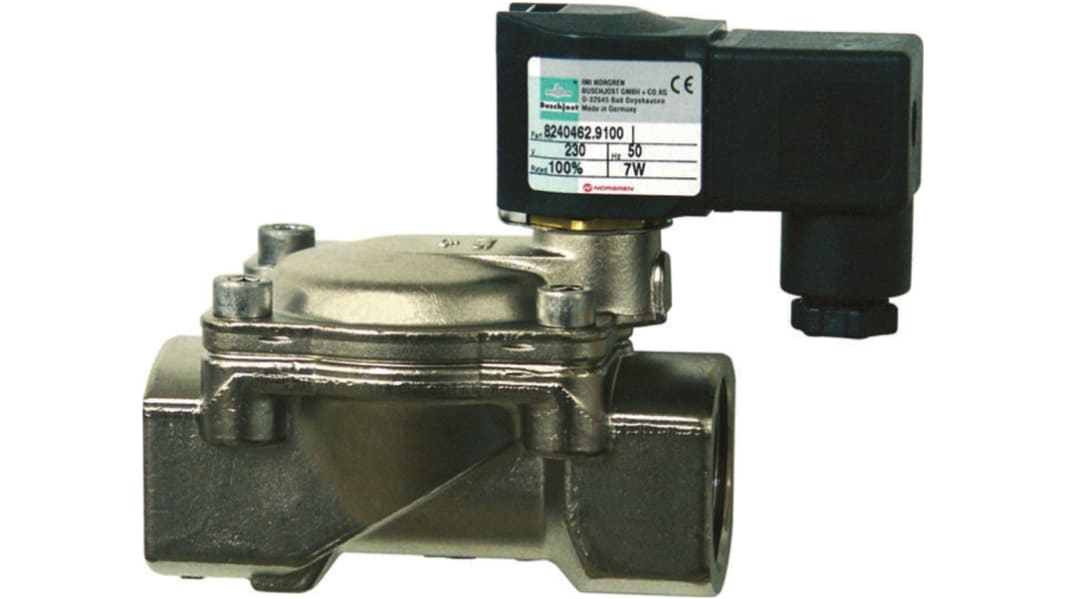

The image is for reference only, please refer to product details and specifications
View all Solenoid Valves
27 In stock for delivery within 6 working days
Price (VAT excluded) Each
Was TWD5,056.00
You pay
TWD4,550.00
(exc. GST)
TWD4,777.50
(inc. GST)
| units | Per unit |
| 1 + | TWD4,550.00 |
- RS Stock No.:
- 529-5275
- Mfr. Part No.:
- 8240300.9101.02400
- Manufacturer:
- Buschjost
- COO (Country of Origin):
- GB
Product overview and Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
Buschjost 82400 Series Solenoid Valve, 2/2 Way
From the 82400 Series, this solenoid valve, 2/2 normally closed is perfect for neutral gaseous and liquid fluids such as air and water.
It is a reliable and high performing solenoid valve and easy to use due to the click-on feature, making this solenoid interchangeable without the need for any tools.
It is a reliable and high performing solenoid valve and easy to use due to the click-on feature, making this solenoid interchangeable without the need for any tools.
Features and Benefits
• Functional compact design
• Easy and simple to use
• Valve operates with differential pressure
• Ideal for use with neutral gases and liquids
• For contaminated fluids, installation of a strainer is recommended
• Due to the click-on design, the solenoid is interchangeable without the need for tools
• High flow rate
• Damped operation
• Made from strong robust materials
• Optional mounting position, but ideally the solenoid should be vertical on top
• Easy and simple to use
• Valve operates with differential pressure
• Ideal for use with neutral gases and liquids
• For contaminated fluids, installation of a strainer is recommended
• Due to the click-on design, the solenoid is interchangeable without the need for tools
• High flow rate
• Damped operation
• Made from strong robust materials
• Optional mounting position, but ideally the solenoid should be vertical on top
Approvals
CE
Specifications
| Attribute | Value |
| Supply Voltage | 24 V dc |
| Number of Ports | 2 |
| Connection Size | 3/4in |
| Connection | 3/4 in G Female |
| Operation | Pilot |
| Default Valve Position | NC |
| Suitable Applications | Air, Water |
| Type | 2/2 |
| Orifice Diameter | 20mm |
| Body Material | Brass |
| Maximum Working Pressure | 16 bar |
| Operating Temperature Range | -10 → +50 °C |
| Thread Standard or Connection Type | G |
| Maximum Operating Temperature | +50°C |
| Minimum Operating Temperature | -10°C |
| Connection Gender | Female |
| Series | 82400 |
| Flow Factor Kv | 6.1m³/h |
