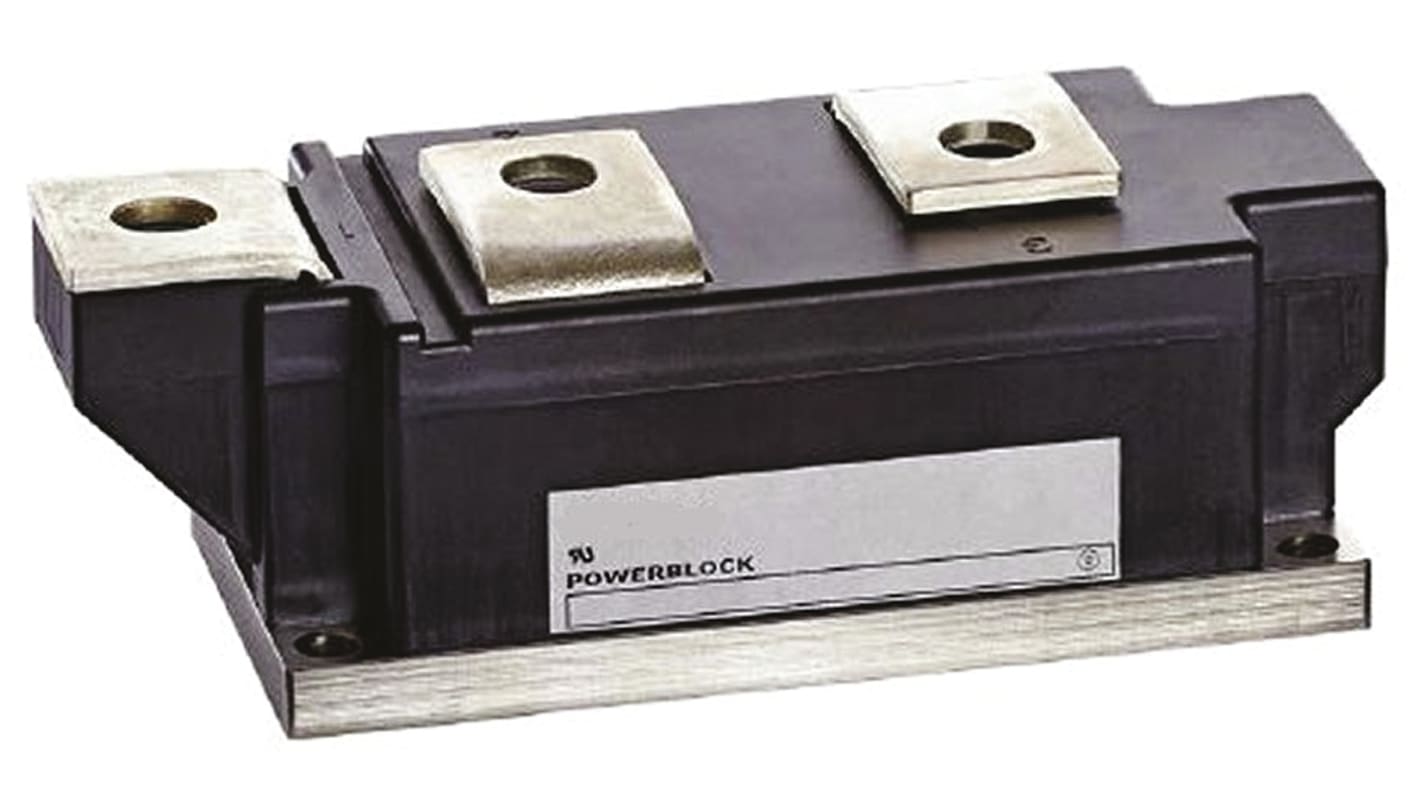

Infineon 1600 V 600 A Diode General Purpose 3-Pin

View this category
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
839-1095
Mfr. Part No.:
DD600N16KHPSA3
Manufacturer:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Product Type

Diode

Mount Type

Panel

Maximum Continuous Forward Current If

600A

Peak Reverse Repetitive Voltage Vrrm

1600V

Series

DD600N16K

Diode Configuration

Series

Rectifier Type

General Purpose

Pin Count

3

Peak Non-Repetitive Forward Surge Current Ifsm

22kA

Peak Reverse Current Ir

40mA

Minimum Operating Temperature

-40°C

Maximum Forward Voltage Vf

1.32V

Maximum Operating Temperature

150°C

Length

144mm

Height

52mm

Standards/Approvals

No

Width

60mm

Automotive Standard

No

Rectifier Diode Module, DD Series, Infineon


The Infineon PowerBLOCK Dual Diodes (DD Series) Rectifier Diode modules have configurations such as Fast diode, and Rectifier diodes. The pressure contact technology rectifier diode module ranges from 20mm up to 60mm, with voltage ranges up to 1800V and 600A current. The PowerBLOCK Rectifier diode has an electrical insulated base which consists of an isolated copper base plate. They can be used in power controllers, soft starter and drive applications.

PowerBLOCK Housing

Easy mounting

Pressure Contact technology

Fail safe / Short on fail - preventing arcing on fail

Diodes and Rectifiers, Infineon
