Vishay 600 V 1 A Diode General Purpose 2-Pin DO-214BA GF1J-E3/67A
- RS Stock No.:
- 629-0502
- Distrelec Article No.:
- 304-34-042
- Mfr. Part No.:
- GF1J-E3/67A
- Manufacturer:
- Vishay

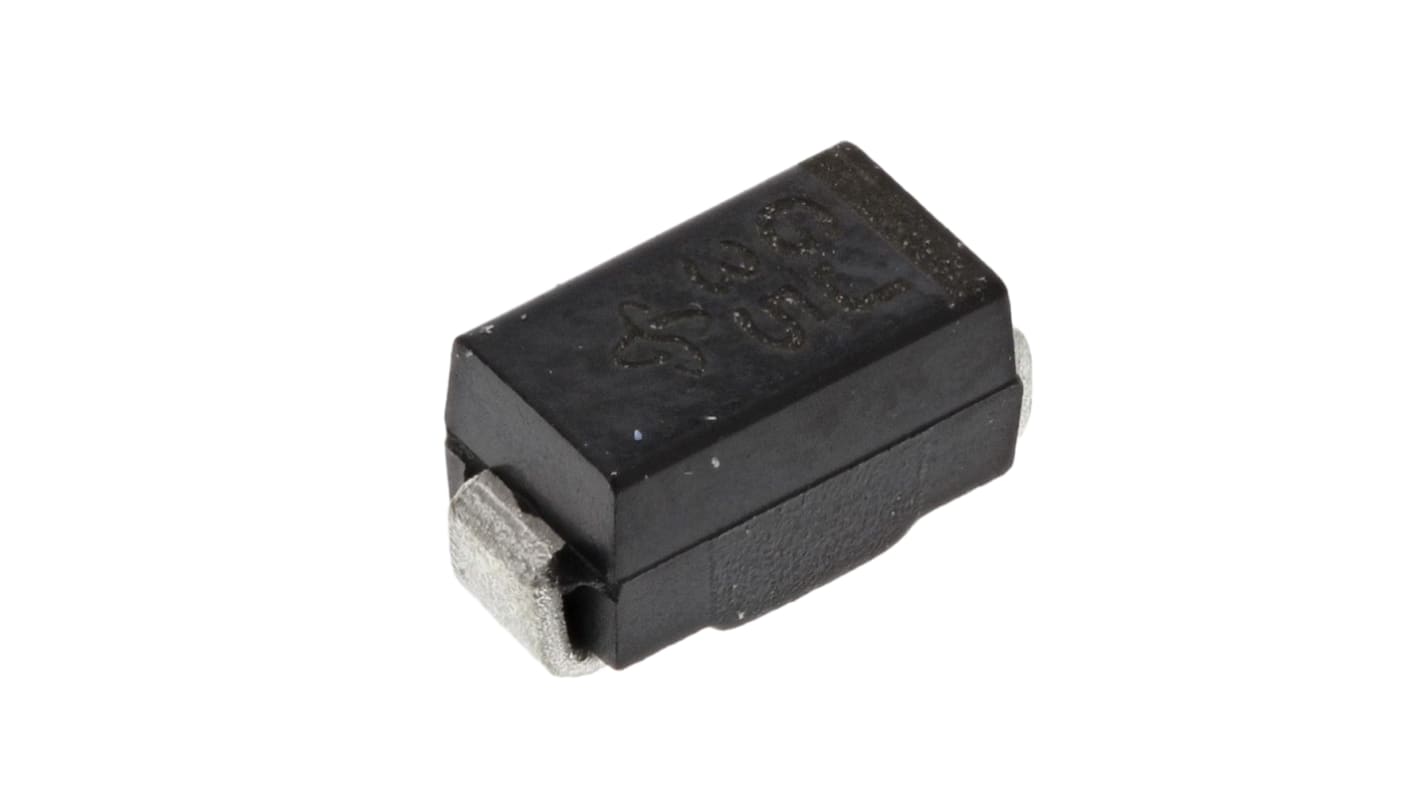

The image is for reference only, please refer to product details and specifications
Add 380 more to save TWD342.00
View bulk pricing optionsSubtotal (1 pack of 10 units)*
TWD335.00
(exc. GST)
TWD351.80
(inc. GST)
FREE delivery for orders over NT$1,300.00
- Final 1,130 unit(s), ready to ship from another location
Units | Per unit | Per Pack* | Saving |
|---|---|---|---|
| 10 - 370 | TWD33.50 | TWD335.00 | - |
| 380 - 740 | TWD32.60 | TWD326.00 | TWD342.00 |
| 750 + | TWD32.20 | TWD322.00 | TWD975.00 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Pack of 50)
TWD340.00
(exc. GST)
TWD357.00
(inc. GST)
- RS Stock No.:
- 629-0502
- Distrelec Article No.:
- 304-34-042
- Mfr. Part No.:
- GF1J-E3/67A
- Manufacturer:
- Vishay
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | Diode | |
| Mount Type | Surface | |
| Package Type | DO-214BA | |
| Maximum Continuous Forward Current If | 1A | |
| Peak Reverse Repetitive Voltage Vrrm | 600V | |
| Series | GF1 | |
| Diode Configuration | Single | |
| Rectifier Type | General Purpose | |
| Pin Count | 2 | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A | |
| Peak Reverse Current Ir | 5μA | |
| Minimum Operating Temperature | -65°C | |
| Maximum Forward Voltage Vf | 1.1V | |
| Maximum Operating Temperature | 175°C | |
| Peak Reverse Recovery Time trr | 2μs | |
| Diameter | 13in | |
| Height | 2.74mm | |
| Width | 2.9mm | |
| Length | 4.75mm | |
| Standards/Approvals | RoHS, JESD 201 Class 1A/Class 2, JESD 22-B102, J-STD-002, UL 94 V-0 | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type Diode | ||
Mount Type Surface | ||
Package Type DO-214BA | ||
Maximum Continuous Forward Current If 1A | ||
Peak Reverse Repetitive Voltage Vrrm 600V | ||
Series GF1 | ||
Diode Configuration Single | ||
Rectifier Type General Purpose | ||
Pin Count 2 | ||
Peak Non-Repetitive Forward Surge Current Ifsm 30A | ||
Peak Reverse Current Ir 5μA | ||
Minimum Operating Temperature -65°C | ||
Maximum Forward Voltage Vf 1.1V | ||
Maximum Operating Temperature 175°C | ||
Peak Reverse Recovery Time trr 2μs | ||
Diameter 13in | ||
Height 2.74mm | ||
Width 2.9mm | ||
Length 4.75mm | ||
Standards/Approvals RoHS, JESD 201 Class 1A/Class 2, JESD 22-B102, J-STD-002, UL 94 V-0 | ||
Automotive Standard AEC-Q101 | ||
Standard Recovery Rectifiers, 1A over 450V
Diodes and Rectifiers, Vishay Semiconductor
