Infineon 4 V 110 mA Diode Schottky 3-Pin SOT323-3 BAT1504WH6327XTSA1
- RS Stock No.:
- 261-3918
- Mfr. Part No.:
- BAT1504WH6327XTSA1
- Manufacturer:
- Infineon

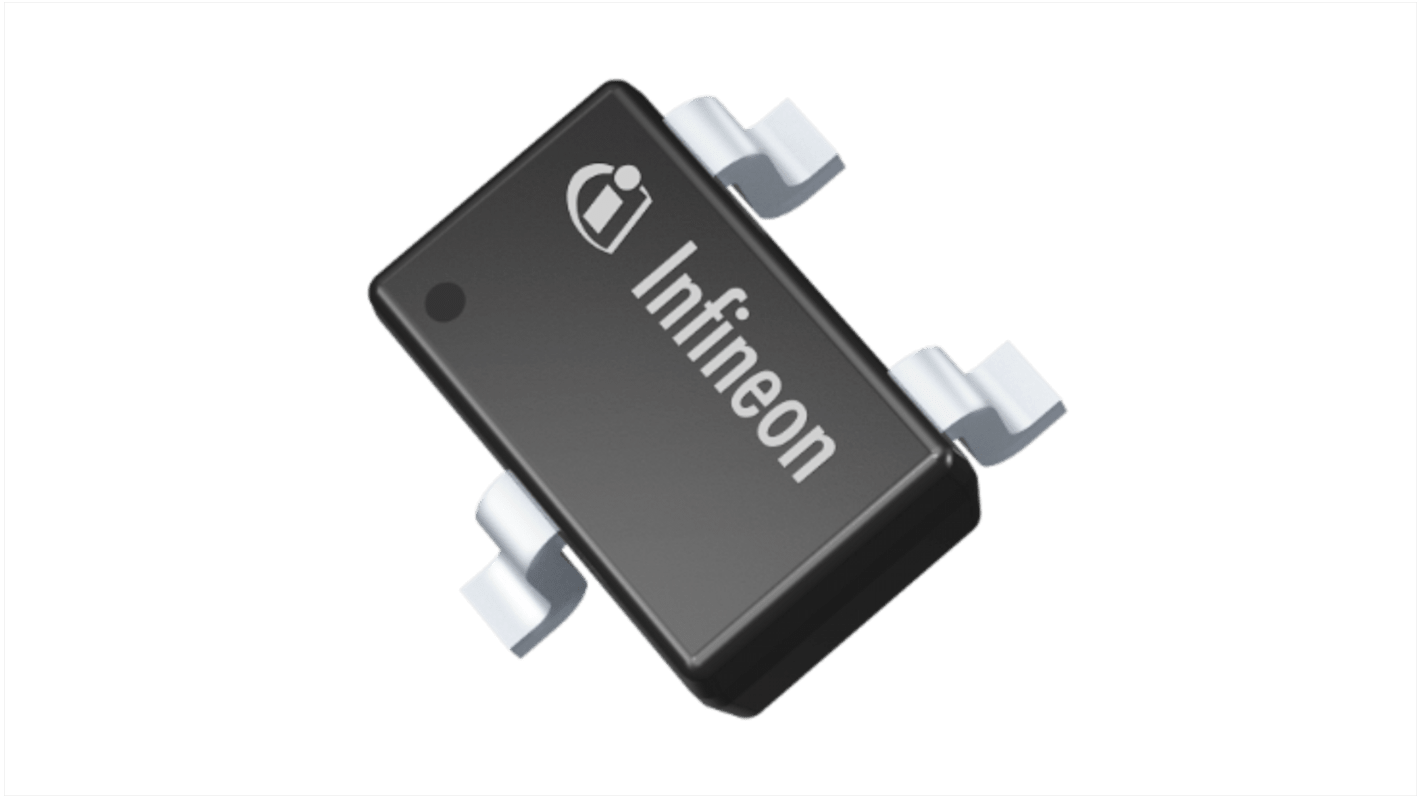

The image is for reference only, please refer to product details and specifications
Add 40 more to save TWD52.00
View bulk pricing optionsSubtotal (1 pack of 20 units)*
TWD262.00
(exc. GST)
TWD275.20
(inc. GST)
FREE delivery for orders over NT$1,300.00
- Plus 2,960 unit(s) shipping from November 23, 2026
Units | Per unit | Per Pack* | Saving |
|---|---|---|---|
| 20 - 20 | TWD13.10 | TWD262.00 | - |
| 40 - 80 | TWD11.80 | TWD236.00 | TWD52.00 |
| 100 - 220 | TWD10.70 | TWD214.00 | TWD240.00 |
| 240 - 480 | TWD9.60 | TWD192.00 | TWD840.00 |
| 500 + | TWD8.60 | TWD172.00 | TWD2,250.00 |
*price indicative
- RS Stock No.:
- 261-3918
- Mfr. Part No.:
- BAT1504WH6327XTSA1
- Manufacturer:
- Infineon
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Mount Type | Surface | |
| Product Type | Diode | |
| Package Type | SOT323-3 | |
| Maximum Continuous Forward Current If | 110mA | |
| Peak Reverse Repetitive Voltage Vrrm | 4V | |
| Series | BAT15-04W | |
| Diode Configuration | Series | |
| Rectifier Type | Schottky | |
| Pin Count | 3 | |
| Minimum Operating Temperature | -55°C | |
| Peak Reverse Current Ir | 5μA | |
| Maximum Forward Voltage Vf | 250mV | |
| Maximum Operating Temperature | 150°C | |
| Length | 2mm | |
| Height | 900μm | |
| Width | 2.1mm | |
| Standards/Approvals | JEDEC47/20/22 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Mount Type Surface | ||
Product Type Diode | ||
Package Type SOT323-3 | ||
Maximum Continuous Forward Current If 110mA | ||
Peak Reverse Repetitive Voltage Vrrm 4V | ||
Series BAT15-04W | ||
Diode Configuration Series | ||
Rectifier Type Schottky | ||
Pin Count 3 | ||
Minimum Operating Temperature -55°C | ||
Peak Reverse Current Ir 5μA | ||
Maximum Forward Voltage Vf 250mV | ||
Maximum Operating Temperature 150°C | ||
Length 2mm | ||
Height 900μm | ||
Width 2.1mm | ||
Standards/Approvals JEDEC47/20/22 | ||
Automotive Standard No | ||
Infineon BAT15-04W Series Diode, 0.25V Maximum Forward Voltage, 110mA Maximum Continuous Forward Current - BAT1504WH6327XTSA1
Features and Benefits:
• 110mA Maximum continuous forward current supporting modest load currents
• 4V Peak reverse repetitive voltage protecting low-voltage circuits
• 5μA Peak reverse current reducing standby leakage currents
• -55°C to 150°C Operating temperature range enabling thermal resilience
Applications
• Suitable for power steering of small-signal rectification tasks
• Ideal for surface-mount assemblies with limited PCB space
• Can be used for reverse-voltage protection in battery-powered modules
• Used with Compact DC-DC stages requiring fast switching
What mounting method should be used for this component?
How does the device behave under high ambient temperature?
Can it be used where automotive qualification is required?
What configuration is the diode provided in for circuit implementation?
