Siretta QUARTZ-W22-LTE(EU)+ACC 4G LTE, 1 x RS-232, 2 x LAN, 2 x SIM, 3 x I/O Ports
- RS Stock No.:
- 124-8861
- Mfr. Part No.:
- QUARTZ-W22-LTE(EU)+ACC
- Manufacturer:
- Siretta
View all Routers
21 In stock for delivery within 6 working days
Price (VAT excluded) Each
Was TWD16,220.00
You pay
TWD15,961.00
(exc. GST)
TWD16,759.05
(inc. GST)
units | Per unit |
1 - 4 | TWD15,961.00 |
5 + | TWD14,365.00 |
- RS Stock No.:
- 124-8861
- Mfr. Part No.:
- QUARTZ-W22-LTE(EU)+ACC
- Manufacturer:
- Siretta
- COO (Country of Origin):
- TW
Product overview and Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

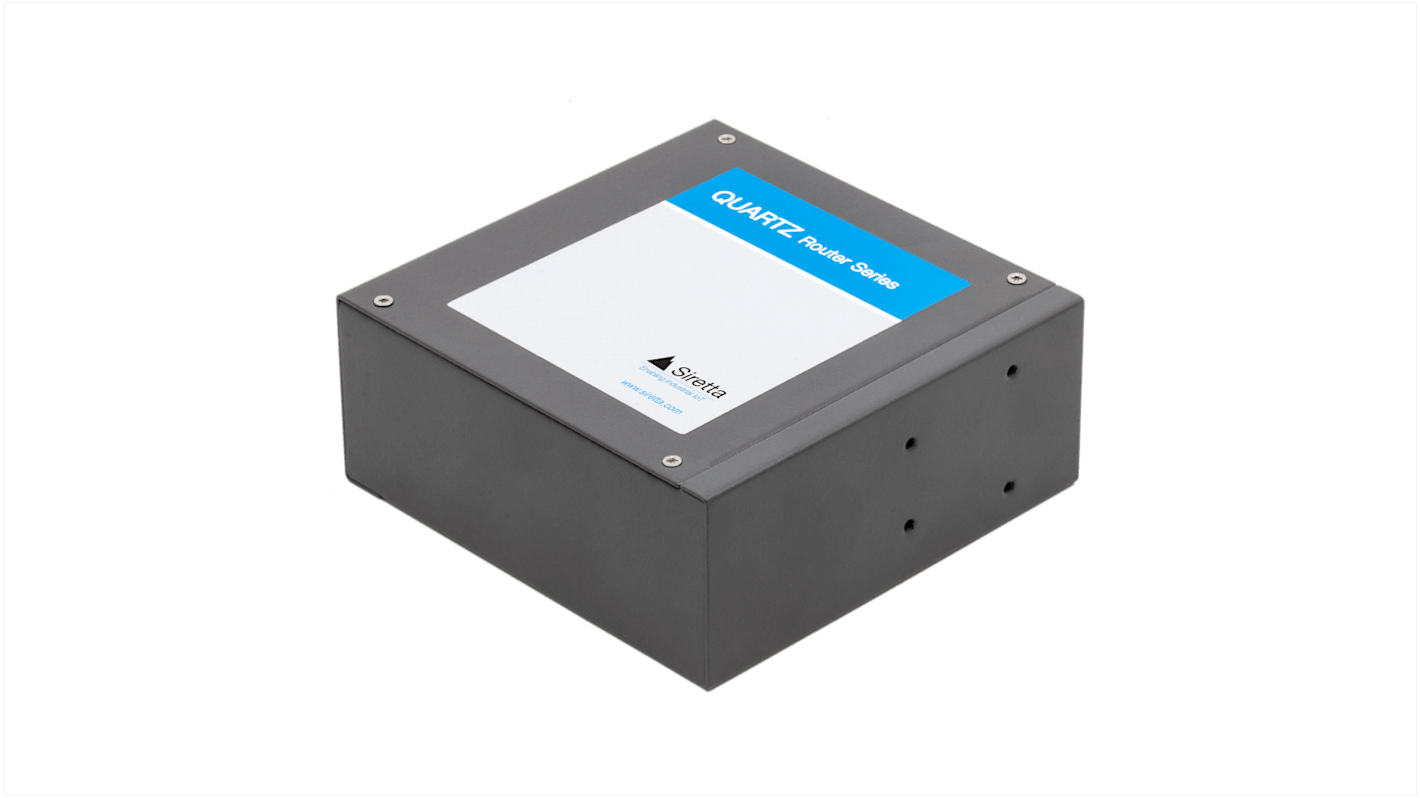

Siretta Quartz Router
The Siretta Quartz router has high-speed European LTE/4G technology, which offers reliable, secure and high-speed wireless connectivity. It has dual port Ethernet capability, two SIM as a standard and 3 digital I/O with 150Mbs data rate. The industrial-grade VPN features can be configured in the router which allows you to utilize the virtual private network service through the 4G connection and directly access the industrial server environment. Incorporating dual SIM functionality as a standard, this router allows you to set up a backup cellular network between two different SIM cards to ensure a permanent reliable connection regardless of the individual network availability.
Features and Benefits
European 4G/LTE bands
Wi-Fi antenna interface
1x linkCONNECT (RS232 to TCP/IP)
Strong resistance to electromagnetic interference
Built-in watchdog, multi-link detection
Dual SIM for failover/backup between network
Supports DNS proxy and Dynamic DNS (DNSS)
Supports timing operation
Supports LED status indication
Supports APN and VDPN wireless private network access
Supports 802.11b/g/n Wi-Fi, 150Mbps data rate
Local and remote management
SNMP network management, NTP support
WAN supports PPOE, Static IP, DHCP Client (with 2x LAN)
Operating temperature ranges between -30°C and 70°C
The supply voltage ranges between 7.5VDC and 26VDC
Wi-Fi antenna interface
1x linkCONNECT (RS232 to TCP/IP)
Strong resistance to electromagnetic interference
Built-in watchdog, multi-link detection
Dual SIM for failover/backup between network
Supports DNS proxy and Dynamic DNS (DNSS)
Supports timing operation
Supports LED status indication
Supports APN and VDPN wireless private network access
Supports 802.11b/g/n Wi-Fi, 150Mbps data rate
Local and remote management
SNMP network management, NTP support
WAN supports PPOE, Static IP, DHCP Client (with 2x LAN)
Operating temperature ranges between -30°C and 70°C
The supply voltage ranges between 7.5VDC and 26VDC
Applications
Remote management
Telemetry
Condition monitoring
CCTVs
ATMs
Vending machines
Telemetry
Condition monitoring
CCTVs
ATMs
Vending machines
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
BS EN 61340-5-1:2007
Specifications
Attribute | Value |
Router Type | Modem Router |
Wireless Connectivity | 4G LTE |
Model | QUARTZ-W22-LTE(EU)+ACC |
Network Speed | 150Mbit/s |
WiFi Standard | 802.11 b/g/n |
Wireless Data Rate | 150Mbit/s |
WiFi Band | 0.9 GHz, 2.1GHz |
Dimensions | 42 x 102 x 100mm |
Weight | 300g |
Depth | 102mm |
Width | 42mm |
Height | 100mm |
