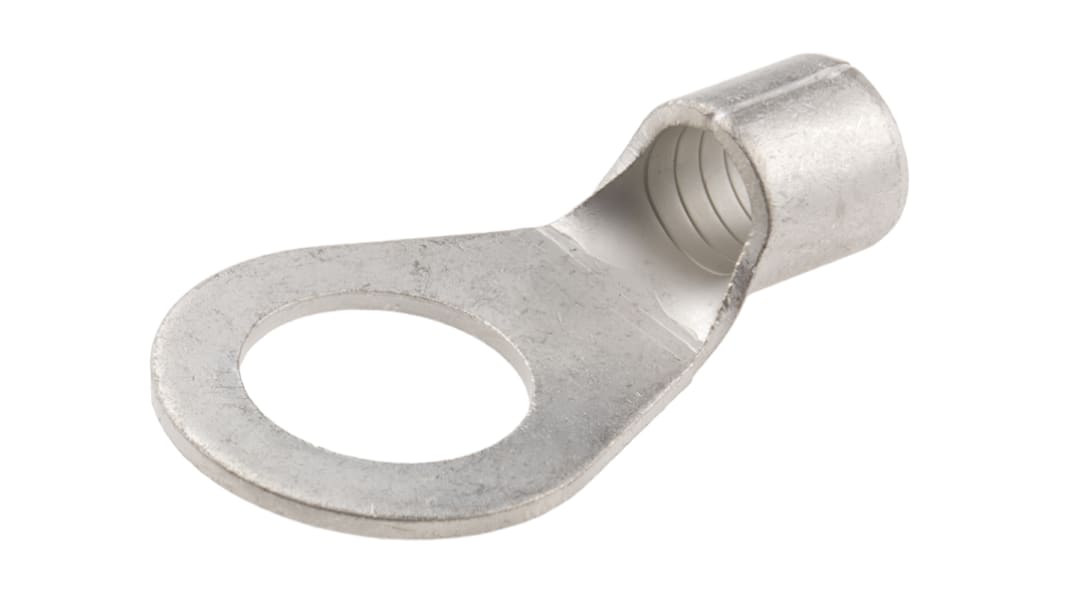

RS PRO Uninsulated Ring Terminal, 17mm Stud Size, 35mm² to 35mm² Wire Size
- RS Stock No.:
- 809-2338
- Distrelec Article No.:
- 304-26-088
- Manufacturer:
- RS PRO
Bulk discount available
Subtotal (1 pack of 25 units)**
TWD787.50
(exc. GST)
TWD827.00
(inc. GST)
575 In stock for delivery within 6 working days*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over TWD1,300.00 (ex VAT)
Real time qty checker
Units | Per unit | Per Pack** |
|---|---|---|
| 25 - 100 | TWD31.50 | TWD787.50 |
| 125 - 600 | TWD30.60 | TWD765.00 |
| 625 - 1225 | TWD29.60 | TWD740.00 |
| 1250 - 6225 | TWD29.00 | TWD725.00 |
| 6250 + | TWD23.90 | TWD597.50 |
**price indicative
- RS Stock No.:
- 809-2338
- Distrelec Article No.:
- 304-26-088
- Manufacturer:
- RS PRO
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Insulation | Uninsulated | |
| Outer Ring Diameter | 28mm | |
| Inner Ring Diameter | 17mm | |
| Maximum Wire Size mm² | 35mm² | |
| Minimum Wire Size mm² | 35mm² | |
| Maximum Wire Size AWG | 2AWG | |
| Minimum Wire Size AWG | 2AWG | |
| Stud Size | 17mm | |
| Contact Plating | Tin | |
| Contact Material | Copper | |
| Thickness | 1.6mm | |
| Overall Length | 50mm | |
| Maximum Operating Temperature | +150°C | |
| Minimum Operating Temperature | -40°C | |
