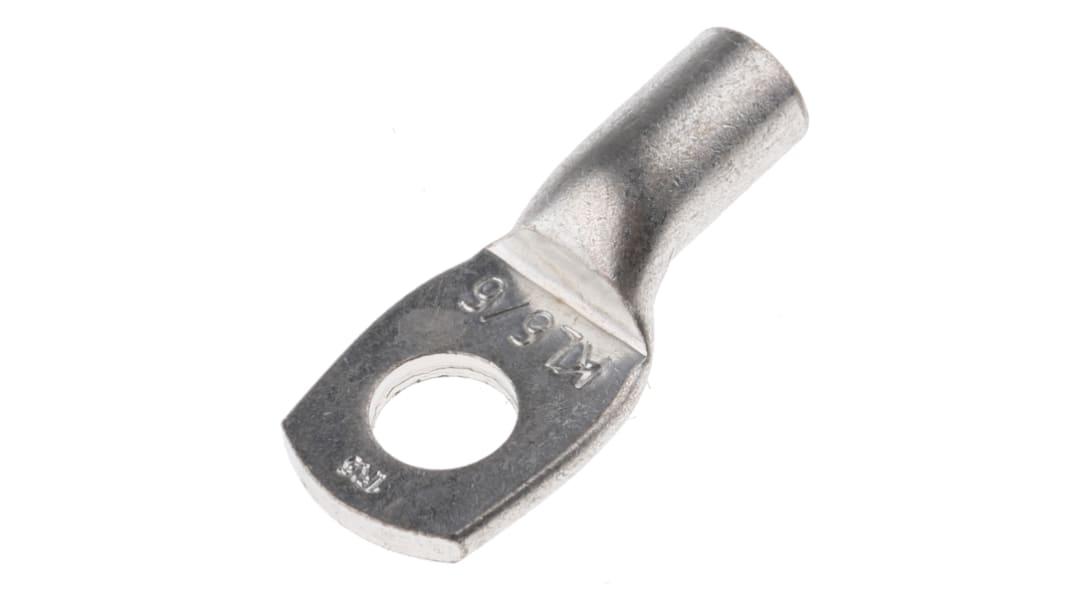

Klauke Uninsulated Ring Terminal, M6 Stud Size 10 AWG Wire Size, Grey
- RS Stock No.:
- 398-1889
- Mfr. Part No.:
- 1R6
- Manufacturer:
- Klauke
Bulk discount available
Subtotal (1 bag of 10 units)*
TWD166.00
(exc. GST)
TWD174.30
(inc. GST)
FREE delivery for orders over NT$1,300.00
In Stock
- Plus 10,720 unit(s) shipping from May 04, 2026
- Plus 650 unit(s) shipping from May 05, 2026
- Plus 1,500 unit(s) shipping from June 01, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 10 - 90 | TWD16.60 | TWD166.00 |
| 100 - 240 | TWD16.20 | TWD162.00 |
| 250 - 490 | TWD15.80 | TWD158.00 |
| 500 - 4990 | TWD15.60 | TWD156.00 |
| 5000 + | TWD12.90 | TWD129.00 |
*price indicative
- RS Stock No.:
- 398-1889
- Mfr. Part No.:
- 1R6
- Manufacturer:
- Klauke
Specifications
Product overview and Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Klauke | |
| Product Type | Ring Terminal | |
| Insulation | Uninsulated | |
| Outer Ring Diameter | 12mm | |
| Inner Ring Diameter | 6.5mm | |
| Maximum Wire Size AWG | 10AWG | |
| Overall Length | 27.5mm | |
| Stud Size | M6 | |
| Colour | Grey | |
| Contact Plating | Tin | |
| Contact Material | Copper | |
| Standards/Approvals | GL, IEC, o DIN EN 61373 class 1 B approved to vibration, EN 13600, DNV, cULus | |
| Minimum Wire Size mm² | 6mm² | |
| Maximum Wire Size mm² | 6mm² | |
| Select all | ||
|---|---|---|
Brand Klauke | ||
Product Type Ring Terminal | ||
Insulation Uninsulated | ||
Outer Ring Diameter 12mm | ||
Inner Ring Diameter 6.5mm | ||
Maximum Wire Size AWG 10AWG | ||
Overall Length 27.5mm | ||
Stud Size M6 | ||
Colour Grey | ||
Contact Plating Tin | ||
Contact Material Copper | ||
Standards/Approvals GL, IEC, o DIN EN 61373 class 1 B approved to vibration, EN 13600, DNV, cULus | ||
Minimum Wire Size mm² 6mm² | ||
Maximum Wire Size mm² 6mm² | ||
Klauke® Tubular Terminals
Tubular terminals without inspection hole
Material: E-Cu tubing
Electro tin-plated surface
For suitable tools, see stock no. 398-3043 or 398-2270
