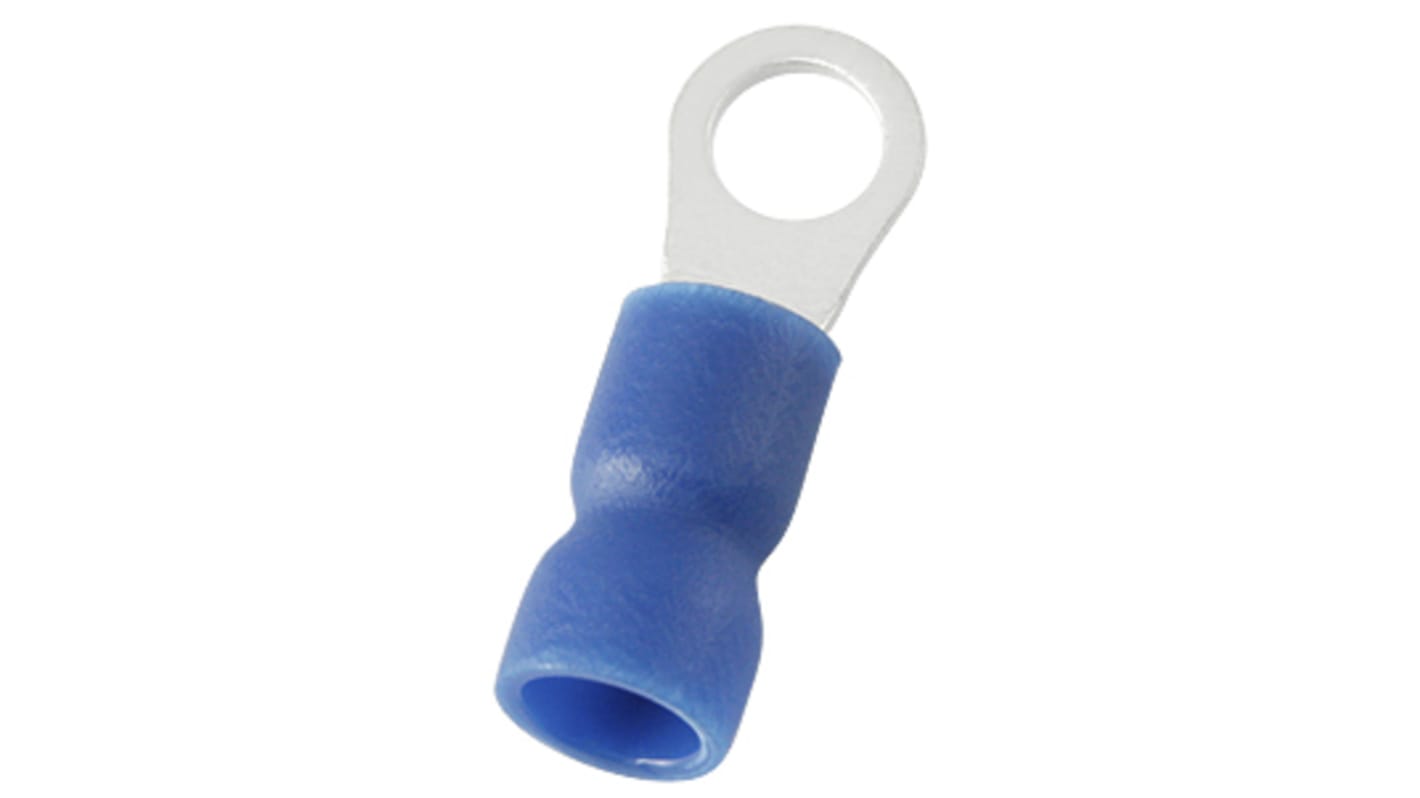

RS PRO Insulated Ring Terminal, 4.3mm Stud Size, 1.5mm² to 2.5mm² Wire Size, Blue
- RS Stock No.:
- 178-8678
- Manufacturer:
- RS PRO
Bulk discount available
Subtotal (1 bag of 100 units)**
TWD220.00
(exc. GST)
TWD231.00
(inc. GST)
900 In stock for delivery within 6 working days*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over TWD1,300.00 (ex VAT)
Real time qty checker
Units | Per unit | Per Bag** |
|---|---|---|
| 100 - 900 | TWD2.20 | TWD220.00 |
| 1000 - 1900 | TWD2.20 | TWD220.00 |
| 2000 - 4900 | TWD2.10 | TWD210.00 |
| 5000 - 24900 | TWD2.10 | TWD210.00 |
| 25000 + | TWD1.70 | TWD170.00 |
**price indicative
- RS Stock No.:
- 178-8678
- Manufacturer:
- RS PRO
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Series | E245391 | |
| Insulation | Insulated | |
| Insulation Material | Vinyl | |
| Inner Ring Diameter | 4.3mm | |
| Outer Ring Diameter | 6.6mm | |
| Maximum Wire Size mm² | 2.5mm² | |
| Minimum Wire Size mm² | 1.5mm² | |
| Minimum Wire Size AWG | 16AWG | |
| Maximum Wire Size AWG | 14AWG | |
| Stud Size | 4.3mm | |
| Colour | Blue | |
| Contact Material | Copper | |
| Contact Plating | Tin | |
| Thickness | 0.8mm | |
| Overall Length | 20.9mm | |
| Maximum Operating Temperature | +105°C | |
| Minimum Operating Temperature | -40°C | |
