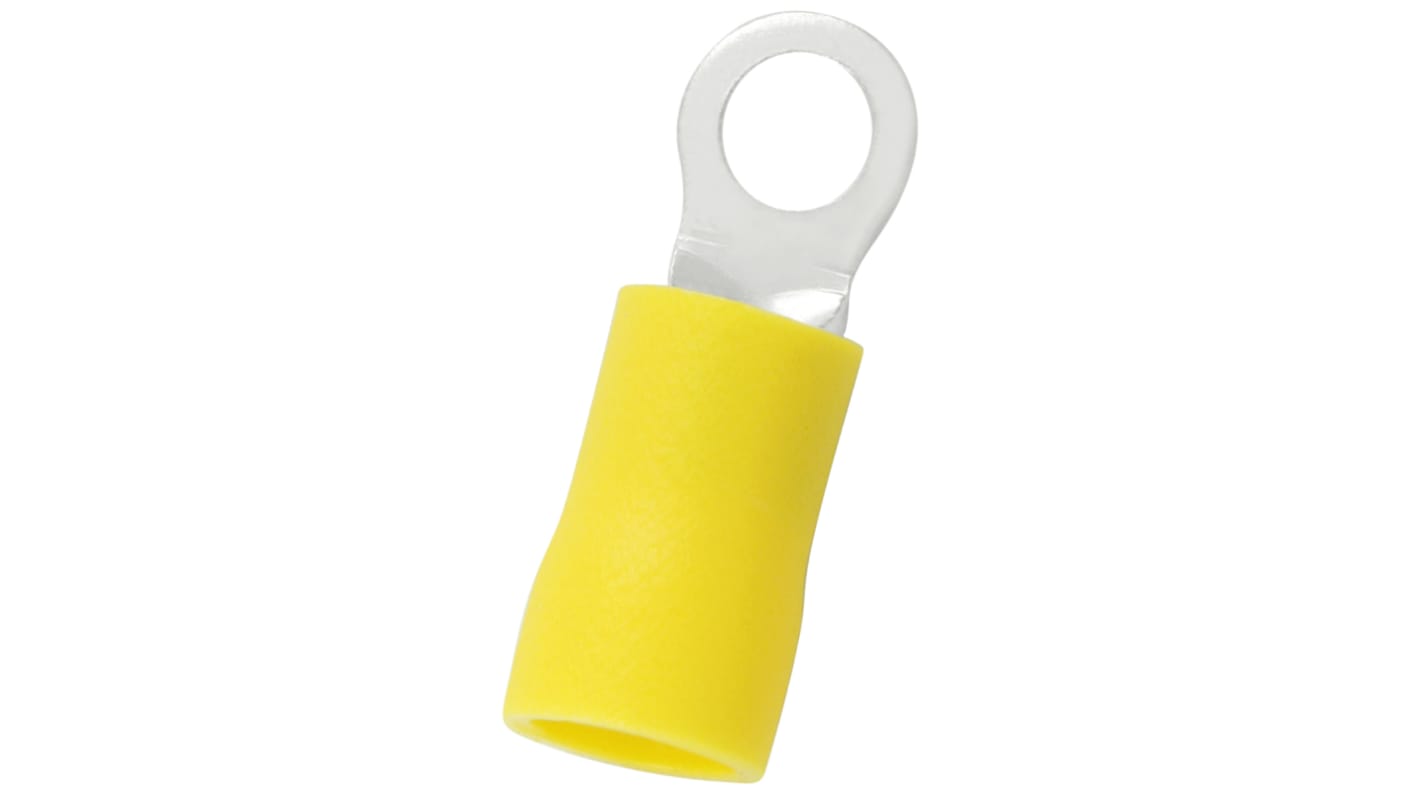

RS PRO Insulated Ring Terminal, 4.3mm Stud Size, 4mm² to 6mm² Wire Size, Yellow
- RS Stock No.:
- 178-8666
- Manufacturer:
- RS PRO
Bulk discount available
Subtotal (1 bag of 100 units)**
TWD330.00
(exc. GST)
TWD346.00
(inc. GST)
11700 In stock for delivery within 6 working days*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over TWD1,300.00 (ex VAT)
Real time qty checker
Units | Per unit | Per Bag** |
|---|---|---|
| 100 - 900 | TWD3.30 | TWD330.00 |
| 1000 - 1900 | TWD3.20 | TWD320.00 |
| 2000 - 4900 | TWD3.10 | TWD310.00 |
| 5000 - 24900 | TWD3.00 | TWD300.00 |
| 25000 + | TWD2.50 | TWD250.00 |
**price indicative
- RS Stock No.:
- 178-8666
- Manufacturer:
- RS PRO
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Series | E245391 | |
| Insulation | Insulated | |
| Insulation Material | Vinyl | |
| Outer Ring Diameter | 7.2mm | |
| Inner Ring Diameter | 4.3mm | |
| Minimum Wire Size mm² | 4mm² | |
| Maximum Wire Size mm² | 6mm² | |
| Maximum Wire Size AWG | 10AWG | |
| Minimum Wire Size AWG | 12AWG | |
| Stud Size | 4.3mm | |
| Colour | Yellow | |
| Contact Material | Copper | |
| Contact Plating | Tin | |
| Thickness | 1mm | |
| Overall Length | 22.7mm | |
| Maximum Operating Temperature | +105°C | |
| Minimum Operating Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Series E245391 | ||
Insulation Insulated | ||
Insulation Material Vinyl | ||
Outer Ring Diameter 7.2mm | ||
Inner Ring Diameter 4.3mm | ||
Minimum Wire Size mm² 4mm² | ||
Maximum Wire Size mm² 6mm² | ||
Maximum Wire Size AWG 10AWG | ||
Minimum Wire Size AWG 12AWG | ||
Stud Size 4.3mm | ||
Colour Yellow | ||
Contact Material Copper | ||
Contact Plating Tin | ||
Thickness 1mm | ||
Overall Length 22.7mm | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature -40°C | ||
