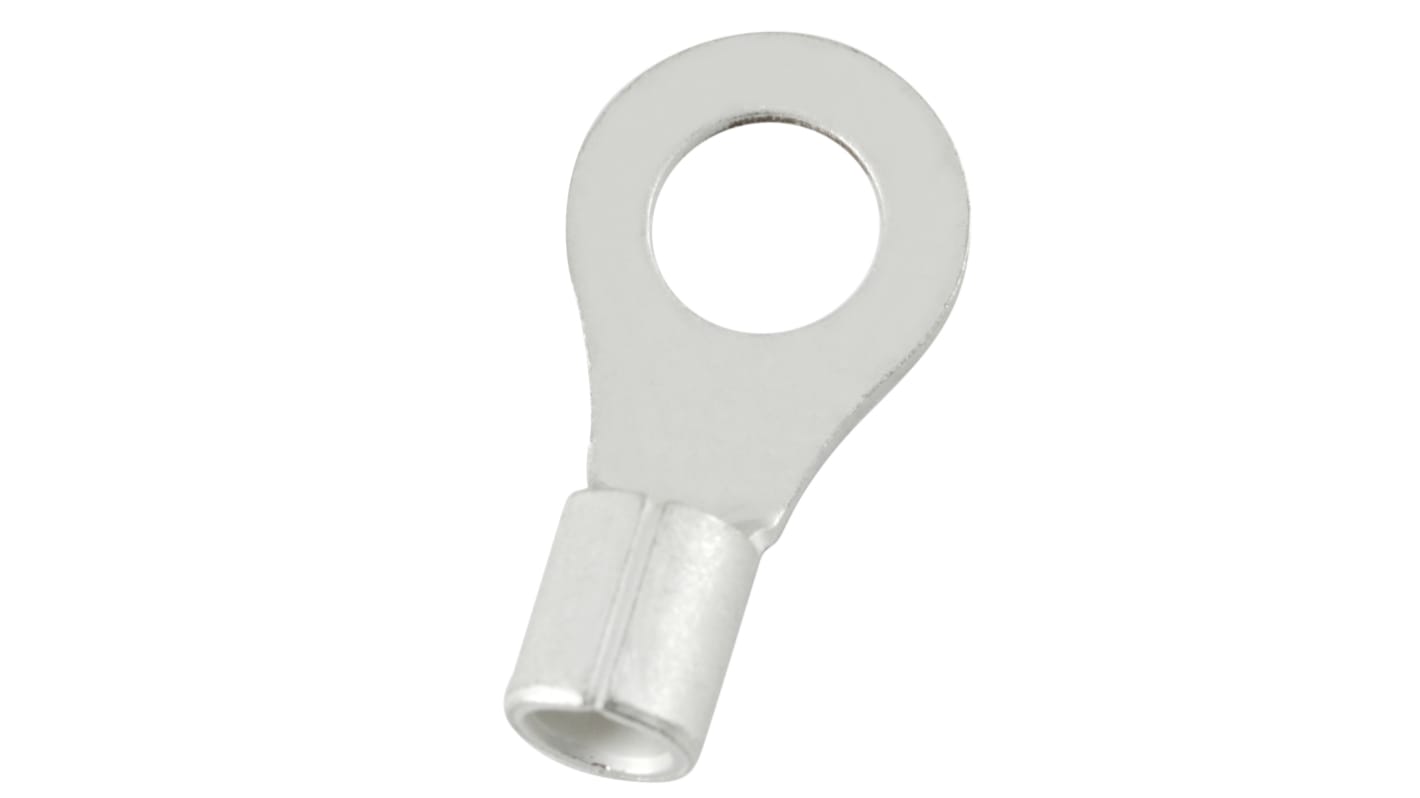

    RS PRO Uninsulated Ring Terminal, 8.4mm Stud Size, 8mm² to 8mm² Wire Size

    Bulk discount available

    Subtotal (1 bag of 100 units)**

    Was TWD120,900.00

    You pay

    TWD1,030.00

    (exc. GST)

    TWD1,082.00

    (inc. GST)

    Add to Basket
    Select or type quantity
    400 In stock for delivery within 6 working days*

    * Delivery dates may change based on your chosen quantity and delivery address.

    Units
    Per unit
    Per Bag**
    100 - 900TWD10.30TWD1,030.00
    1000 - 1900TWD10.00TWD1,000.00
    2000 - 4900TWD9.70TWD970.00
    5000 - 24900TWD9.50TWD950.00
    25000 +TWD7.80TWD780.00

    **price indicative

    RS Stock No.:
    178-8626
    Manufacturer:
    RS PRO
    Find similar products by selecting one or more attributes.
    Select all

    Manufacturer

    RS PRO

    Series

    E245391

    Insulation

    Uninsulated

    Inner Ring Diameter

    8.4mm

    Outer Ring Diameter

    15mm

    Maximum Wire Size mm²

    8mm²

    Minimum Wire Size mm²

    8mm²

    Maximum Wire Size AWG

    8AWG

    Minimum Wire Size AWG

    8AWG

    Stud Size

    8.4mm

    Contact Plating

    Tin

    Contact Material

    Copper

    Thickness

    1.2mm

    Overall Length

    29.2mm

    Maximum Operating Temperature

    +150°C

    Minimum Operating Temperature

    -40°C
