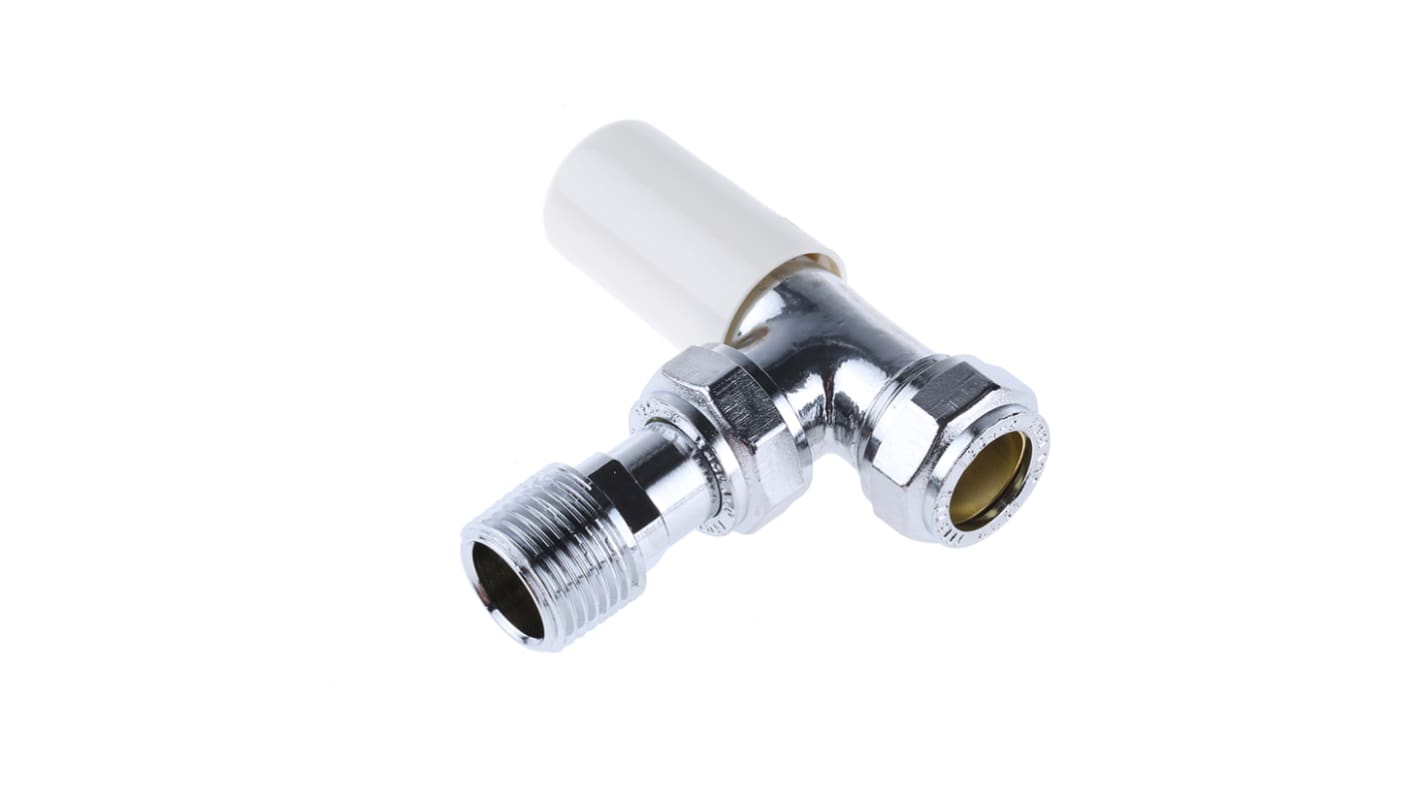

Pegler Yorkshire Chrome Plated Brass 15 mm Compression to 1/2 in BSP Manual Radiator Valve
- RS Stock No.:
- 196-1855
- Mfr. Part No.:
- 601038
- Manufacturer:
- Pegler Yorkshire
N
View all Radiator Valves
19 In stock for delivery within 6 working days
Price (VAT excluded) Each
TWD632.00
(exc. GST)
TWD663.60
(inc. GST)
| units | Per unit |
| 1 + | TWD632.00 |
- RS Stock No.:
- 196-1855
- Mfr. Part No.:
- 601038
- Manufacturer:
- Pegler Yorkshire
Product overview and Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- GB
Product Details
Terrier Angle Pattern Radiator Valves
Lubricated long life gland packing. Glands can be removed without draining down
These valves are suitable for use with BS2871 Part 1 table X copper tube and approved alternatives
The male tail pipe connections are BS21 taper threaded with an external square for easy fitting into the radiator
BS2767-10 applies
These valves are suitable for use with BS2871 Part 1 table X copper tube and approved alternatives
The male tail pipe connections are BS21 taper threaded with an external square for easy fitting into the radiator
BS2767-10 applies
Approvals
7777
Standards
BS 2767-10; BS 2871 Part 1; BS 21
Radiator Valves
Chromium plated finished brass body with 15 mm compression x 1//2 in.BSP male connections Maximum Water Temperature 120°C.Working Pressure (Non-Shock) 10bar.
Specifications
Attribute | Value |
|---|---|
| Connection 1 | 15 mm Compression |
| Connection 2 | 1/2 in BSP |
| Valve Type | Angle |
| Body Material | Chrome Plated Brass |
| Maximum Working Pressure | 10 bar |
| Connection Size 1 | 15mm |
| Connection Size 2 | 1/2in |
| Thread Standard or Connection Type 2 | BSP |
