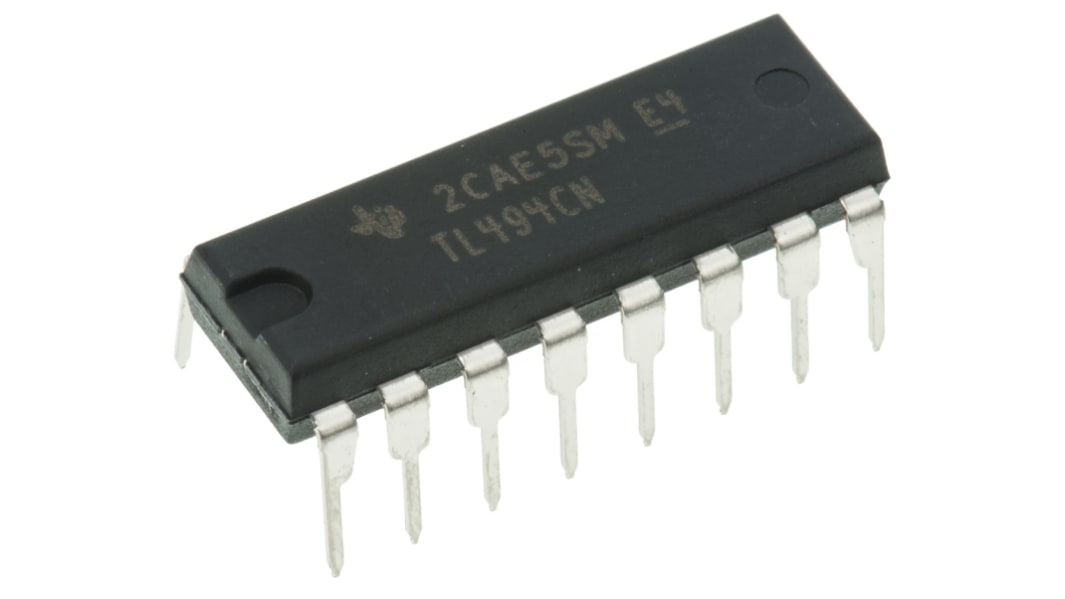

    Texas Instruments TL494CN, PWM Controller, 40 V, 300 kHz 16-Pin, PDIP

    RS Stock No.:
    528-123
    Mfr. Part No.:
    TL494CN
    Manufacturer:
    Texas Instruments
    Texas Instruments
    View all PWM
    525 In stock for delivery within 6 working days
    Add to Basket
    units

    Added

    Price (VAT excluded) Each (In a Tube of 25)

    Was TWD23.08

    You pay

    TWD12.00

    (exc. GST)

    TWD12.60

    (inc. GST)

    unitsPer unitPer Tube*
    25 - 25TWD12.00TWD300.00
    50 - 100TWD11.70TWD292.50
    125 - 225TWD11.30TWD282.50
    250 - 475TWD11.10TWD277.50
    500 +TWD10.80TWD270.00
    *price indicative
    RS Stock No.:
    528-123
    Mfr. Part No.:
    TL494CN
    Manufacturer:
    Texas Instruments

    Product overview and Technical data sheets


    Legislation and Compliance


    Product Details

    PWM Controllers 300kHz to 400kHz, Texas Instruments


    From Texas Instruments, a range of Pulse Width Modulation controllers and associated devices to suit a variety of applications and specifications.


    PWM (Pulse Width Modulation) Controllers, Texas Instruments

    Specifications

    AttributeValue
    Maximum Switching Frequency300 kHz
    Output Voltage40(Max) V
    Output Current200 (Max) mA
    Mounting TypeThrough Hole
    Package TypePDIP
    Pin Count16
    Dimensions19.3 x 6.35 x 4.57mm
    Length19.3mm
    Width6.35mm
    Height4.57mm
    Maximum Operating Temperature+70 °C
    Minimum Operating Temperature0 °C
    Minimum Operating Supply Voltage7 V
    Maximum Operating Supply Voltage40 V
