MPN

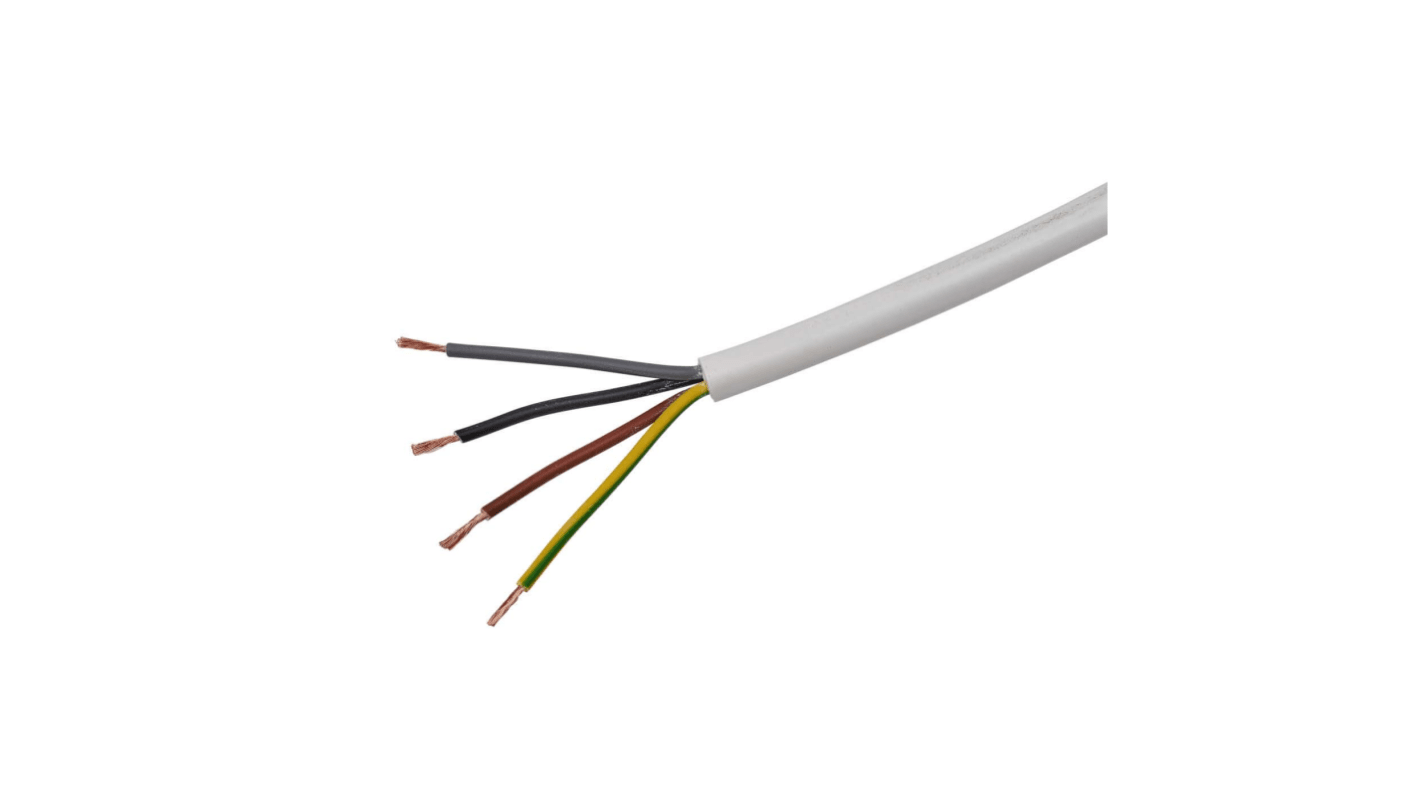

RS PRO Fire Performance 0.75 mm² 4 Core Power Cable, H05Z1Z1-F, White, 100m

RS Stock No.:: 836-0741
Manufacturer:: RS PRO

RS PRO Fire Performance 0.75 mm² 4 Core Power Cable, H05Z1Z1-F, White, 100m

Bulk discount available

Subtotal (1 reel of 100 metres)*

TWD6,554.00

(exc. GST)

TWD6,881.70

(inc. GST)

FREE delivery for orders over NT$1,300.00

In Stock

Plus 29 unit(s) shipping from December 15, 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 - 4	TWD6,554.00	TWD65.54
5 - 24	TWD6,390.00	TWD63.90
25 +	TWD5,259.00	TWD52.59

*price indicative

RS Stock No.:: 836-0741
Manufacturer:: RS PRO

Specifications

Product overview and Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Cross Sectional Area	0.75 mm²
	Number of Cores	4
	Sheath Colour	White
	Length	100m
	Cable Type	Fire Performance
	CPR Certification	Eca
	Outer Diameter	6.6 → 8.3mm
	Voltage Rating	500 V
	European Harmonised Code	H05Z1Z1-F
	Conductor Resistance	26 Ω/km
	Insulation Material	Thermoplastic
	Fire Behaviour	Flame Retardant
	Size of Strands	0.2 mm
	American Wire Gauge	18 AWG
	Number of Strands	22
	Minimum Operating Temperature	-5°C
	Standards Met	BS EN 50525
	Maximum Operating Temperature	+70°C
	Conductor Material	Copper

	Select all
	Brand RS PRO
	Cross Sectional Area 0.75 mm²
	Number of Cores 4
	Sheath Colour White
	Length 100m
	Cable Type Fire Performance
	CPR Certification Eca
	Outer Diameter 6.6 → 8.3mm
	Voltage Rating 500 V
	European Harmonised Code H05Z1Z1-F
	Conductor Resistance 26 Ω/km
	Insulation Material Thermoplastic
	Fire Behaviour Flame Retardant
	Size of Strands 0.2 mm
	American Wire Gauge 18 AWG
	Number of Strands 22
	Minimum Operating Temperature -5°C
	Standards Met BS EN 50525
	Maximum Operating Temperature +70°C
	Conductor Material Copper

COO (Country of Origin):: TR

3182B / H05Z1Z1-F LSZH 0.75 Cable

3182B is indoor general wiring cable. These low smoke zero halogen (LSZH) cables can be used in public areas where fire, smoke emission and toxic fumes pose potential threats to life and equipment.

Features and Benefits

• Thermoplastic insulation and sheath

• LSZH (Low smoke zero halogen)

• Flame retardant

• Operating temperature range: -5°C to +70°C

Product Application Information

Pendant lighting drops, supply leads in hospitals or airport projects are ideal areas where this type of cable can be used.

Standards

EN 50363-8, EN 50363-7, IEC 60332-1, EN 50525-3-11, Class 5 IEC 60228, RoHS
