- RS Stock No.:
- 468-1906
- Mfr. Part No.:
- 20144942
- Manufacturer:
- Prysmian
View all Power Cable
5 In stock for delivery within 6 working days
Price (VAT excluded) 1 Reel of 100 Metre(s)
TWD5,377.00
(exc. GST)
TWD5,645.85
(inc. GST)
Reel(s) | Per Reel | Per Metre* |
1 + | TWD5,377.00 | TWD53.77 |
*price indicative |
- RS Stock No.:
- 468-1906
- Mfr. Part No.:
- 20144942
- Manufacturer:
- Prysmian
Product overview and Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- GB
Product Details

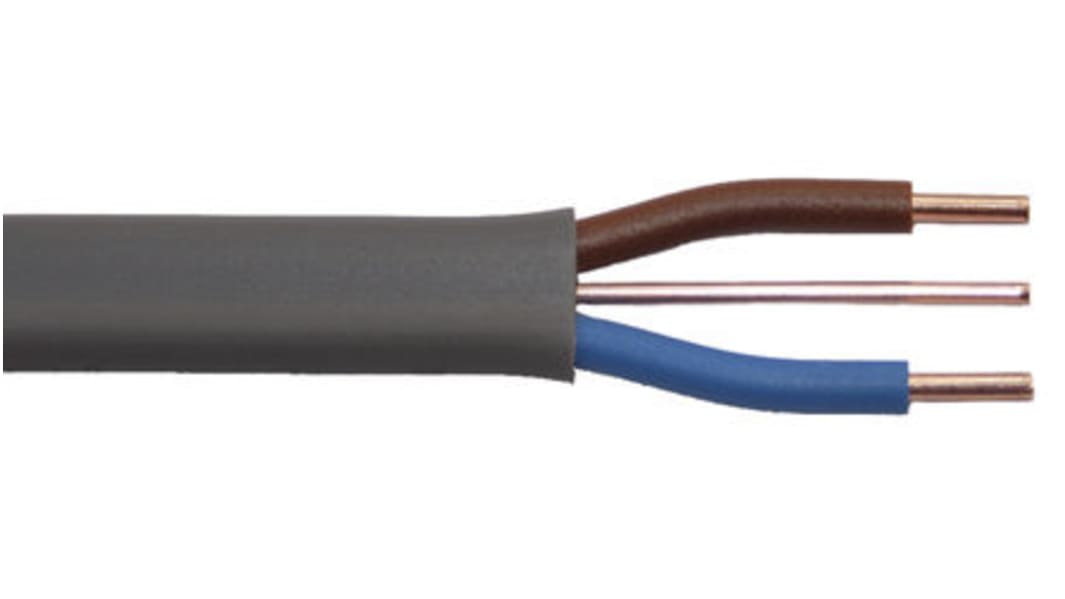

Twin and Earth Cable
A rigid twin and earth cable with excellent fire resistance designed for use in fixed installations. The cables have BASEC approval which is the main standard for PVC cable used in UK buildings. They can be used internally in dry or damp areas, in channels, embedded in plaster or on boards or trays. The PVC sheath allows for quick and easy installation and allows for the cable to withstand mechanical stresses.
Features and Benefits
Temperature range: -15 °C to +70 °C
Bending radius r-4D
Medium mechanical impact
Fire performance BSEN50265-2-1
Rigid
Low voltage 300/500 V
Product Application Information
Ideal for use in domestic and commercial premises for circuit wiring. Fixed installation in dry or damp premises on walls, boards or trays, in channels or embedded in plaster.
Standards
BSEN50265-2-1
Approvals
BS6004
Specifications
Attribute | Value |
---|---|
Cross Sectional Area | 1.5 mm² |
Number of Cores | 2+E |
Sheath Colour | Grey |
Length | 100m |
Cable Type | Twin & Earth |
Current Rating | 20 A |
Sheath Material | PVC |
Outer Diameter | 4.7 x 11.7mm |
Voltage Rating | 500 V |
Conductor Strand Type | Solid |
Conductor Resistance | 12.1 Ω/km |
American Wire Gauge | 15 AWG |
Maximum Operating Temperature | +70°C |
Conductor Material | Annealed Copper |
Insulation Material | PVC |
Standards Met | BASEC |
Minimum Operating Temperature | -15°C |
